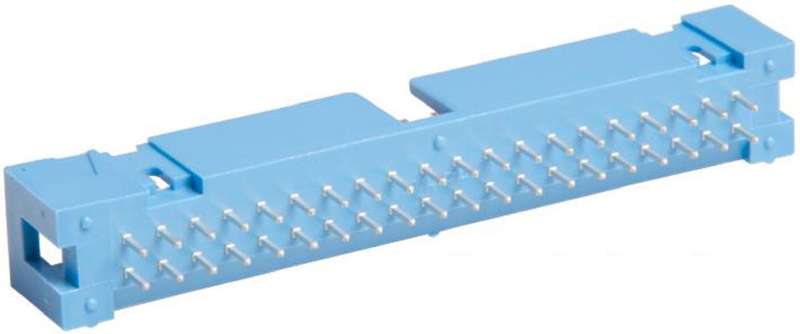

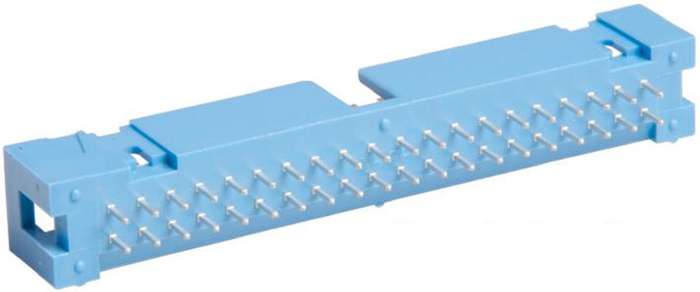

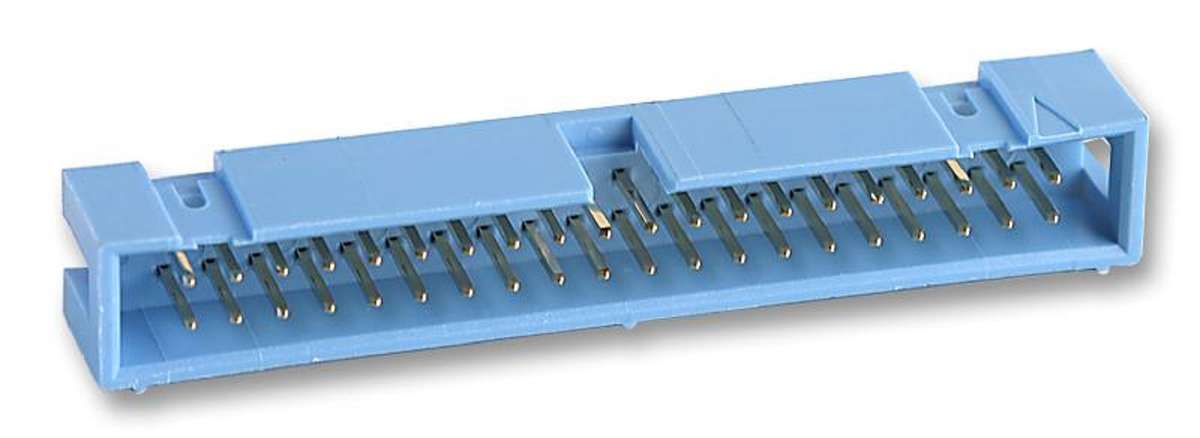

TE Connectivity (3-1761603-3) Pin Header, 2.54 mm, 2 Rows, 40 Contacts

Pin Header, Straight, Wire-to-Board, 2.54 mm, 2 Rows, 40 Contacts, Through HoleStraight, AMP-LATCHProduct OverviewThe 3-1761603-3 is a 40-position 2-row vertical shrouded?Wire-to-Board IDC LowProfile Pin Header with gold-plated phosphor bronze pin contacts and blueUL94V-O PBT 4-sided housing. This ribbon cable connector supports through-holetermination method to PC board and centre mating alignment type. It isapplicable to printed circuit board. It is suitable for use with?the AMP-Latchreceptacle.With daisy chain, polarizationTop housing entry styleUL94V-0 Flammability ratingApplicationsIndustrialProduct InformationConnector Systems: Wire-to-BoardPitch Spacing: 2.54mmNo. of Rows: 2RowsNo. of Contacts: 40ContactsContact Termination Type: Through Hole StraightProduct Range: AMP-LATCHConnector Shroud: ShroudedContact Material: Phosphor BronzeContact Plating: Gold Plated Contacts
