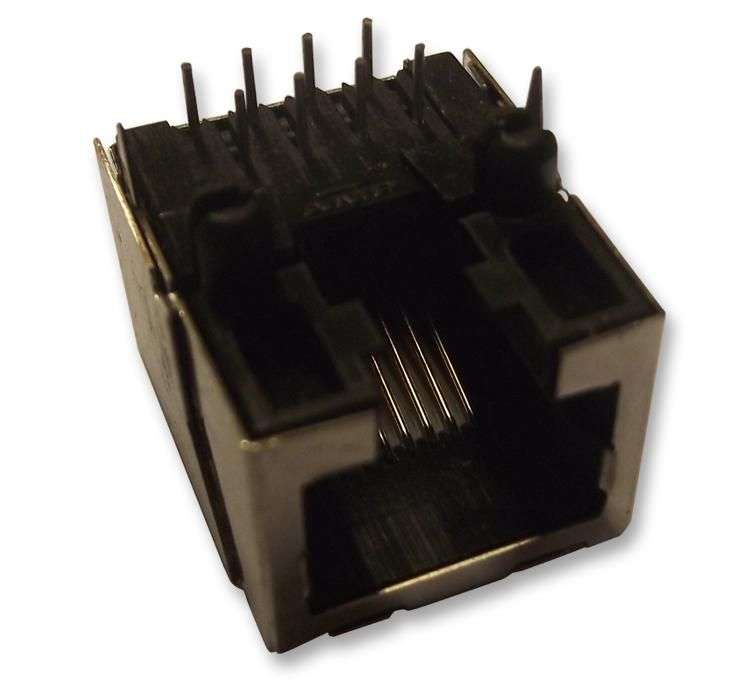

TE Connectivity (3-5338556-1) Modular Connector, RJ45 Jack, 1 x 1 (Port)

Modular Connector, RJ45 Jack, 1 x 1 (Port), 8P8C, Cat3, Through Hole MountProduct OverviewThe 3-5338556-1 is a 8P8C 1-port Cat3 low-profile face shielded Modular Jackwith panel and PCB ground options. It meets 1000V dielectric requirement contactto contact and designed for direct mounting on pc boards. It has phosphor bronzeplated with gold in contact area and tin-lead on solder tails over nickelunder-plate contacts, polyester, polyphenylene sulphide or high temperaturenylon material and finish housing.Designed for ease of soldering and board cleaning20dB shielding effectiveness from 30 to 400MHzUL94V-0 Flammability150VAC Voltage rating1.5A Current rating (maximum)750 Mating cycles durabilityApplicationsComputers & Computer Peripherals, Communications & NetworkingProduct InformationModular Connector Type: RJ45 JackPort Configuration: 1 x 1 (Port)Gender: JackNo. of Contacts: 8ContactsNo. of Positions / Loaded Contacts (per Port): 8P8CNo. of Positions: 8WaysLAN Category: Cat3Connector Mounting: Through Hole MountNo. of Ports: 1PortsConnector Orientation: Right AngleContact Termination Type: Through HoleShielding: ShieldedMagnetics: Without MagneticsContact Plating: Gold Plated ContactsLEDs: Without LEDContact Material: Phosphor BronzeLight Pipes: Without Light PipeProduct Range: SE
