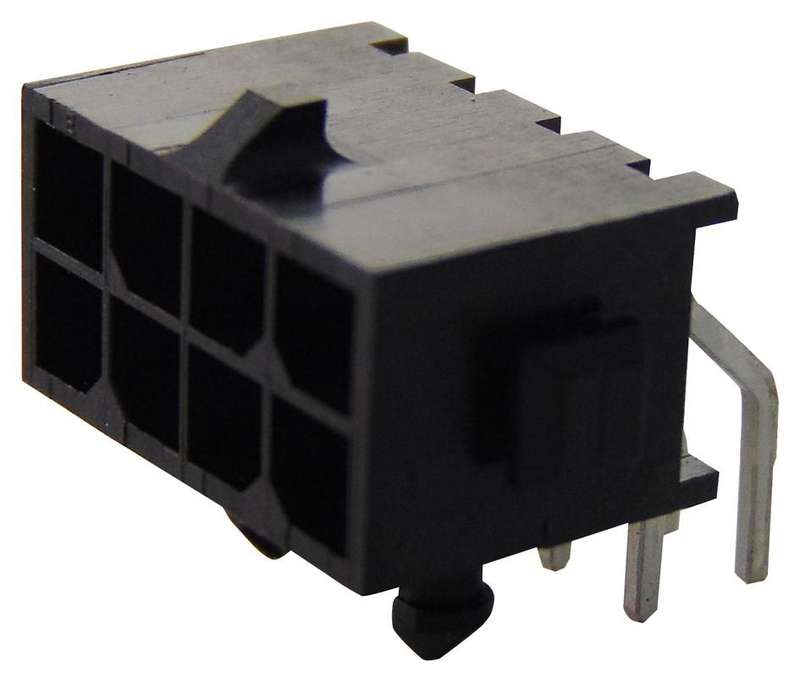

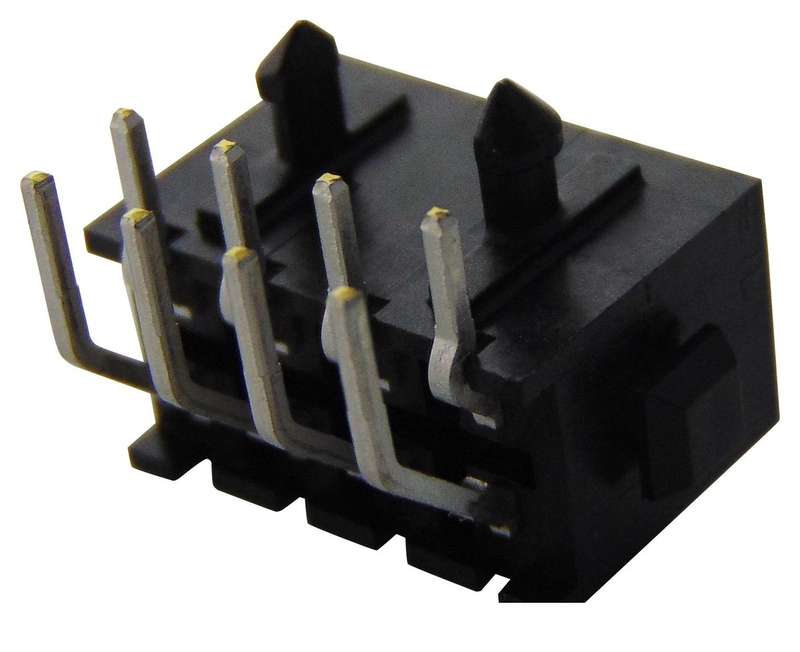

TE Connectivity (3-794618-8) Pin Header, Right Angle, Wire-to-Board, 3 mm

Pin Header, Right Angle, Wire-to-Board, 3 mm, 2 Rows, 8 Contacts, Through HoleRight AngleProduct OverviewThe Micro MATE-N-LOK series low profile micro MATE-N-LOK Connector has avertical height of less than 4.7mm - about 45% lower than other members of theproduct family. These soft-shell connectors include right-angle surface-mountheaders and mating cable connectors. The line uses standard micro MATE-N-LOKcontacts, with 24 to 20 and 30 to 26AWG wire ranges. The connector featurespositive latching to prevent unmating. The 94V-0-rated nylon housing isavailable in black or natural colours. Contacts are phosphor bronze with achoice of tin or gold plating. The connectors are rated up to 5A and 250V. Thislow-profile connector joins the proven micro MATE-N-LOK line of soft-shellconnectors widely used in appliance, industrial machinery and home equipment.The low-profile version was created to meet the specific demands of the lightingindustry, but applications are found in other industries, as well.Black and natural colours availablePolarized housings help prevent connector mismatingPositive latching to prevent unmatingRight angle surface mount headers with surface mount hold-downsUtilizes standard Micro MATE-N-LOK contacts2, 3 and 4 Positions available
