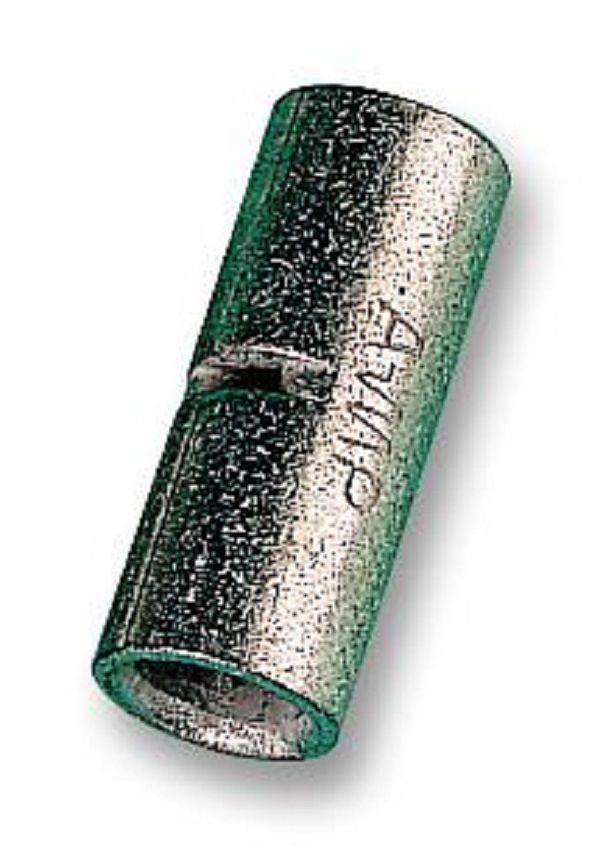

TE Connectivity (36906) Butt Splice, SOLISTRAND, 7.94 AWG, 10.5 mm²

Butt Splice, SOLISTRAND, 7.94 AWG, 10.5 mm², UninsulatedProduct OverviewThe SOLISTRAND series Terminal and Splice offer superior performancecharacteristics while terminating solid and stranded wire or irregular shapedconductors. Matching the terminal to the tool makes quality control easy andperformance consistent. Corrosion and vibration resistance and tensile strengthof these terminals and splices are well within the limits of commercialspecifications. The SOLISTRAND line includes terminals, parallel and buttsplices, flat rings, spades, hooks and flanged tongue terminals in varioussizes. It feature dimples or serrations inside the wire barrel provide optimumtensile strength and maximum electrical contact area after crimping.Brazed seam for uniform metal strength around the entire barrel areaBrazed seam also prevents pinched wiresW crimp provides excellent electrical performance and higher tensile strengthBell mouth on barrel entrance makes insertion of wires easier170°C Maximum temperatureApplicationsPower Management, Motor Drive & Control, Communications & Networking, ConsumerElectronics, Logistics, IndustrialProduct InformationProduct Range: SOLISTRANDWire Size AWG Max: 7.94AWGConductor Area CSA: 10.5mm²Insulator Material: Uninsulated
