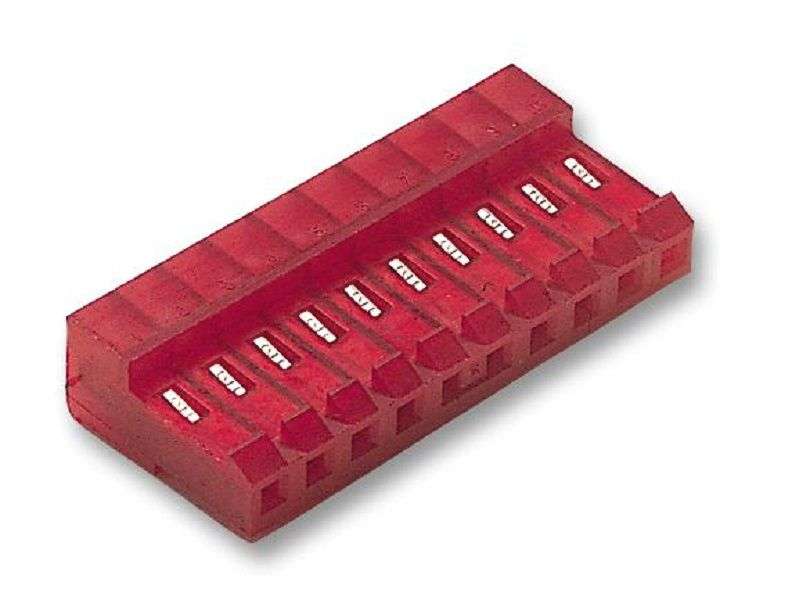

TE Connectivity (4-640428-2) IDC Connector, 22 AWG, IDC Receptacle, Female

IDC Connector, 22 AWG, IDC Receptacle, Female, 3.96 mm, 1 Row, 12 Contacts,Cable MountProduct OverviewThe MTA-156 series MTA Connector System is a wire-to-board and wire-to-wiresystem based on insulation displacement contact (IDC) technology. Masstermination of wires provides the lowest applied cost because it drasticallyreduces the labour content of virtually any cable or harness assembly required.The MTA 156 connector contacts are in a single row on 0.156-inch (3.96mm)centres. The design features wire feed-through capability for daisy-chainapplications. Insulation displacement contacts (IDC) are used to terminate awide range of conductor sizes. Ribbon cable can also be terminated when theappropriate receptacle assembly and strain relief cover are used. Headerassemblies for board mount applications include right-angle and vertical mountproducts available in through-hole and surface mount configurations.Colour coded housing for wire gageTin, 15 and 30 gold plating optionsAudible latch for wire-to-wire (posted) housingsTerminates 18 to 26AWG2 to 24 Positions available600V and up to 12.5A RatingApplicationsIndustrialProduct InformationPitch Spacing: 3.96mmIDC Connector Type: IDC ReceptacleContact Gender: FemaleNo. of Contacts: 12ContactsNo. of Rows: 1 RowConnector Mounting: Cable MountContact Material: Copper AlloyContact Plating: Tin Plated ContactsProduct Range:
