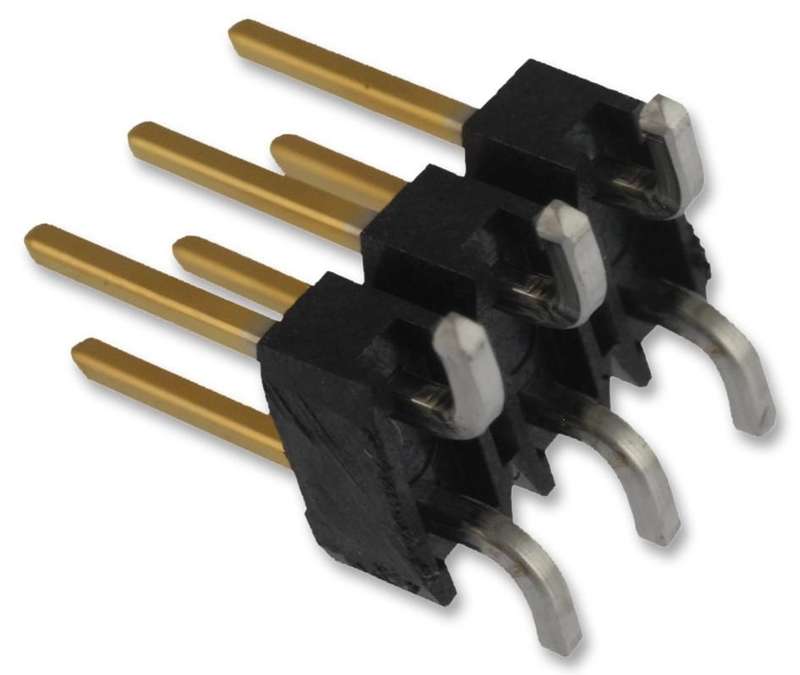

TE Connectivity (5-146130-4) Pin Header, Board-to-Board, 2.54 mm, 2 Rows

TE Connectivity (5-146130-4) Pin Header, Board-to-Board, 2.54 mm, 2 Rows

980 available / new
R229.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
3398615
Bob Shop ID
645126746
Pin Header, Board-to-Board, 2.54 mm, 2 Rows, 10 Contacts, Surface Mount, AMPMODUMod IIProduct Type FeaturesPCB Connector Assembly Type?: PCB Mount HeaderConnector System?: Board-to-BoardHeader Type?: BreakawaySealable?: NoConnector & Contact Terminates To?: Printed Circuit BoardConfiguration FeaturesConnector Contact Load Condition?: Fully LoadedPCB Mount Orientation?: VerticalNumber of Positions?: 10Number of Rows?: 2Board-to-Board Configuration?: ParallelElectrical CharacteristicsOperating Voltage?(VAC): 30Body FeaturesConnector Profile?: StandardPrimary Product Color?: BlackContact FeaturesContact Base Material?: Phosphor BronzePCB Contact Termination Area Plating Material?: TinContact Underplating Material?: NickelContact Shape & Form?: SquarePCB Contact Termination Area Plating Material Finish?: MattePCB Contact Termination Area Plating Material Thickness?(µin): 100 200Mating Square Post Dimension?: .64?mm?[?.025?in?]Contact Mating Area Plating Material?: GoldContact Mating Area Plating Material Thickness?: .762?µm?[?30?µin?]Contact Type?: PinContact Current Rating (Max)?(A): 3Termination FeaturesTermination Post & Tail Length?(mm): 2.29Termination Method to Printed Circuit Board?: Surface MountSquare Termination Post & Tail Dimension?: .64?mm?[?.025?in?]Mechanical AttachmentMating Alignment?: WithoutPCB Mount Retention?: WithoutPCB Mount Alignment?: WithoutConnector Mounting Type?: Board Mount
Add to cart
