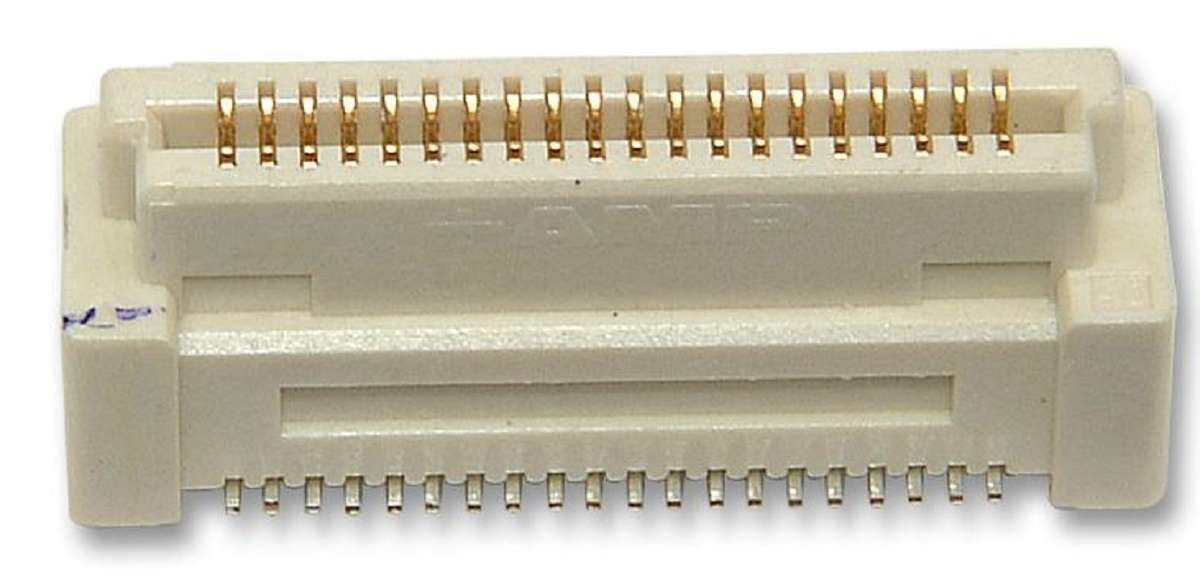

TE Connectivity (5-5179009-1) Mezzanine Connector, Receptacle, 0.8 mm

Mezzanine Connector, Receptacle, 0.8 mm, 2 Rows, 40 Contacts, Surface MountProduct OverviewThe 5-5179009-1 is a 40-way 2-row 0.8mm SMT FH Stacking Receptacle, 12mm stackheight, beryllium copper alloy contacts with gold plating, LCP housing. TycoElectronics 0.8mm FH surface-mount connector is designed for parallel boardstacking applications using subminiature connectors to meet today's electronicindustry requirements for high density packaging. It is possible to save morethan 50% of the required board space when compared to conventional 1.27mm(0.050-inch) centreline connectors. 0.8mm FH connectors are ideally suited forapplication downsizing, such as notebook PCs, pen pads, cellular telephones andother electronic equipment requiring miniature connector packaging. Thereceptacles are preloaded with the Tyco Electronics unique bellows-type springcontacts for reliable electrical connection with the plugs. In addition, rightangle plugs are available which mate to standard receptacles.500V Dielectric withstanding voltageUL94V-0 Flammability ratingApplicationsIndustrialProduct InformationMezzanine Connector Type: Receptacle (View Associated Connectors)No. of Contacts: 40ContactsPitch Spacing: 0.8mmNo. of Rows: 2RowsConnector Mounting: Surface MountContact Material: Beryllium CopperContact Plating: Gold Plated ContactsProduct Range: Fine Stack
