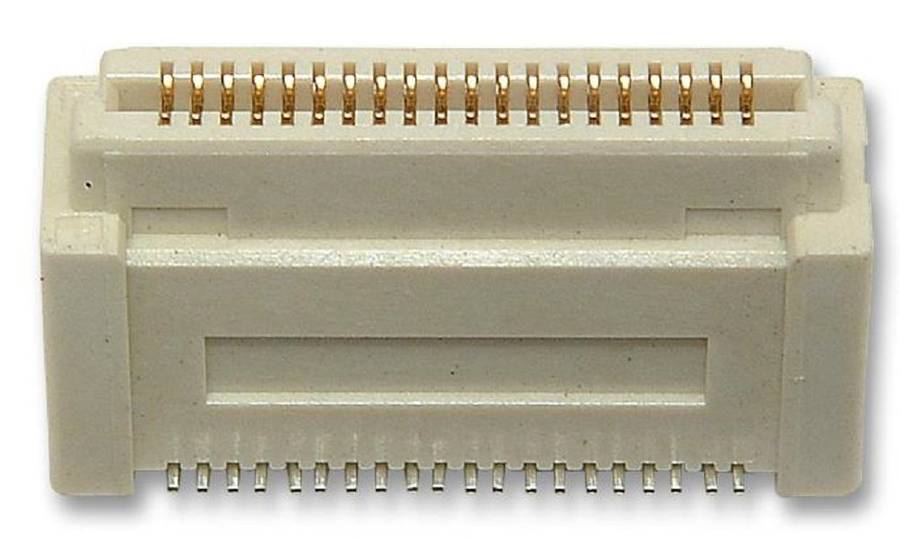

TE Connectivity (5-5179010-1) Mezzanine Connector, Receptacle, 0.8 mm

Mezzanine Connector, Receptacle, 0.8 mm, 2 Rows, 40 Contacts, Surface MountProduct OverviewThe 5-5179010-1 is a 40-way 2-row 0.8mm Free Height Vertical Receptacle withgold-plated copper alloy contacts and surface mount termination. This FH seriesconnector comes with natural LCP housing and tin over nickel plated solder tail,designed for parallel board stacking applications using sub miniature connectorsto meet today's electronic industry requirements for high density packaging. Thereceptacles are preloaded with the unique bellows-type spring contacts forreliable electrical connection with the plugs.Positioning bosses for proper on-board orientationBellows type spring contacts are resistant to scooping and stubbing duringmating and unmatingUL94V-0 Flammability rating0.5A Contact current rating30mR Contact resistance100VAC Voltage rating-40 to 85°C Operating temperature rangeApplicationsIndustrialProduct InformationMezzanine Connector Type: Receptacle (View Associated Connectors)No. of Contacts: 40ContactsPitch Spacing: 0.8mmNo. of Rows: 2RowsConnector Mounting: Surface MountContact Material: Beryllium CopperContact Plating: Gold Plated ContactsProduct Range: Fine Stack
