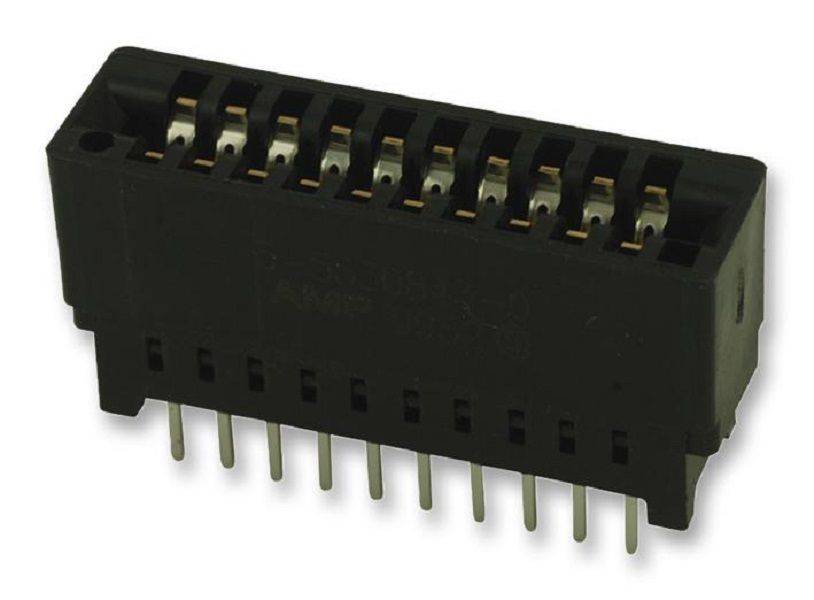

TE Connectivity (5-5530843-0) Connector, Dual Side 1.85mm, 20 Contacts

Card Edge Connector, Dual Side 1.85mm, 20 Contacts, Through Hole Mount,Straight, SolderProduct OverviewThe 5-5530843-0 is a 20-way 2-row Standard Edge II Card Edge Socket, 4.85mm rowto row spacing, 400V rated, 0.100-inch (2.54mm) centreline, vertical solderposts, without mounting ears, phosphor bronze contacts with gold plating overnickel, through hole solder termination and Black glass-filled polyesterhousing. The connectors serve low durability cycle applications which do nothave the available room for a traditional 2-piece power distribution connector.In other applications, a low-profile connector is needed to allow for betterairflow/less airflow restriction. This grouping of power card edge connectors isfocused on providing high current density with the favoured multi-point contactdesign which reduces contact interface resistance. The connectors were usedoriginally in the ISA Standard for computer expansion cards. Today theseconnectors are being used in applications such as DC-to-DC converters.UL94V-0 Flammability ratingApplicationsPower ManagementProduct InformationCard Edge Connector Type: Dual SideNo. of Contacts: 20ContactsCard Thickness: 1.85mmNo. of Contacts: 20 ContactsCard Edge / Backplane Connector Type: Card EdgeConnector Mounting: Through Hole MountPitch Spacing: 2.54mmConnector Body Orientation: StraightContact Termination Type: SolderContact Material: Phosphor BronzeNo. of Rows: 2RowsContact Plating - Mating Side: 30µ" Gold Plated ContactsRow Pitch: 4.85mmConnector Body Material: PET (Polyester), Glass Filled BodyContact Plating: Gold Plated ContactsProduct Range: Standard Edge II
