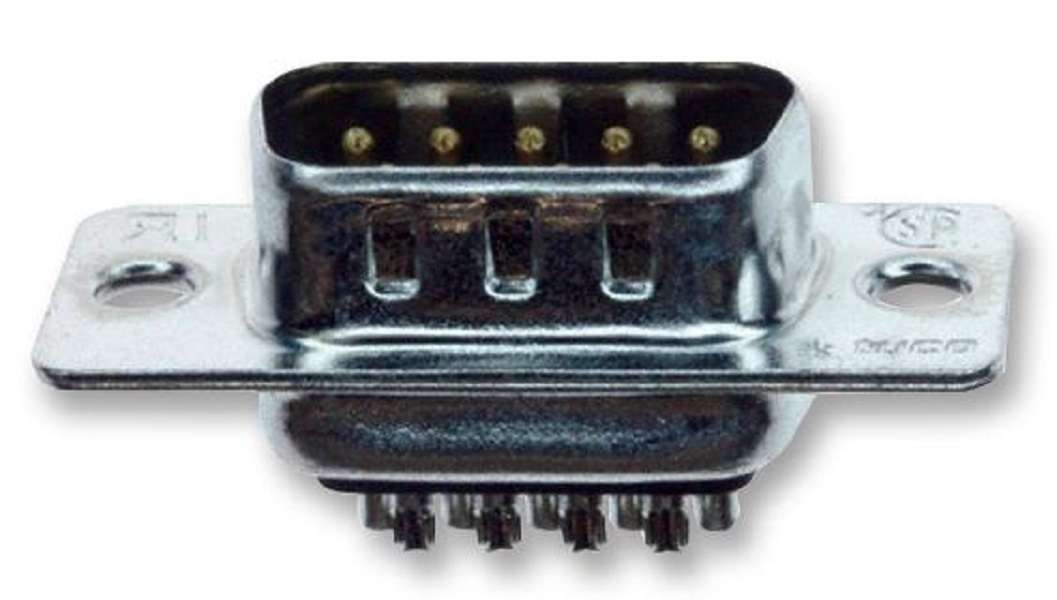

TE Connectivity (5-747904-2) D Sub Connector, DB9, 9 Contacts, Plug

D Sub Connector, DB9, Standard, Plug, AMPLIMITE HDP-20, 9 Contacts, DE, SolderCupProduct OverviewThe 5-747904-2 from TE Connectivity is an AMPLIMITE D sub plug connector with 9positions. It has grounding indents?and mating connector lock.Steel shell with tin platingBlack colour thermoplastic housingContact mating area plating material?is gold flashContact base material?is phosphor bronzeSolder tail contact plating material?is tin-copper over nickelSolder cup contact configuration?Straight mounting angle?UL94 V-0 flammability rating?Solder termination to wire/cable?ApplicationsIndustrialProduct InformationD Sub Connector Type: StandardNo. of Contacts: 9ContactsGender: Plug (View Associated Connectors)Product Range: AMPLIMITE HDP-20D Sub Shell Size: DEContact Termination Type: Solder CupConnector Mounting: Cable MountContact Material: Phosphor BronzeContact Plating: Gold Plated ContactsConnector Body Material: Steel Body
