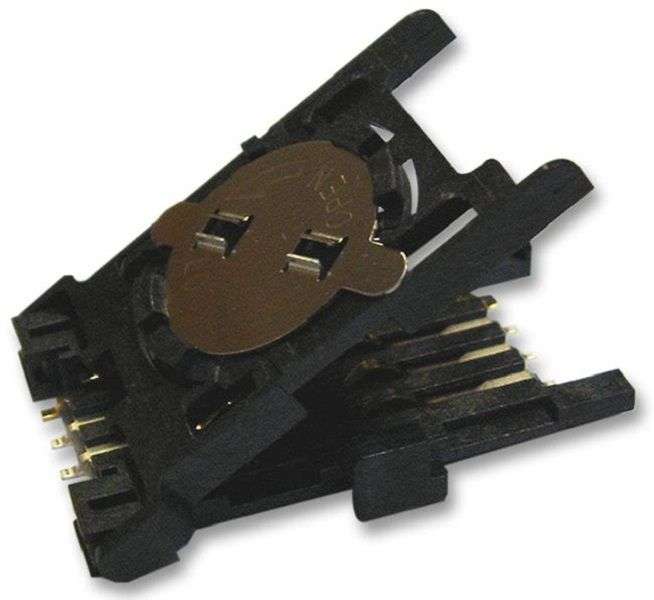

TE Connectivity (5145299-2) Memory Card Connector, Hinged, 8 Contacts

Memory Card Connector, SIM / SAM, Hinged, 8 Contacts, Phosphor Bronze, GoldPlated ContactsProduct OverviewThe 5145299-2 is a 8-position SIM/SAM Smart Card Connector with gold-platedphosphor bronze contacts and high temperature thermoplastic housing. Thereceptacle with card scoop, card guide slots and card detection switch. It isfor use in the electronic equipment. This connector is designed for solderingdirectly onto the pc (printed circuit) board. The connector accepts MICROSIM GSMintegrated circuit cards meeting GSM 11.11 standards. The card slides into thehinged lid on the connector and to ensure proper orientation, the notched edgeon the card must align with the polarization feature (notched edge) on theconnector, therefore allowing the lid to fully close.Surface-mount PCB mounting styleApplicationsConsumer ElectronicsProduct InformationInsert & Eject Mechanism: HingedMemory / Card Type: SIM / SAMConnector Type: Memory SocketNo. of Contacts: 8ContactsContact Material: Phosphor BronzeContact Plating: Gold Plated Contacts
