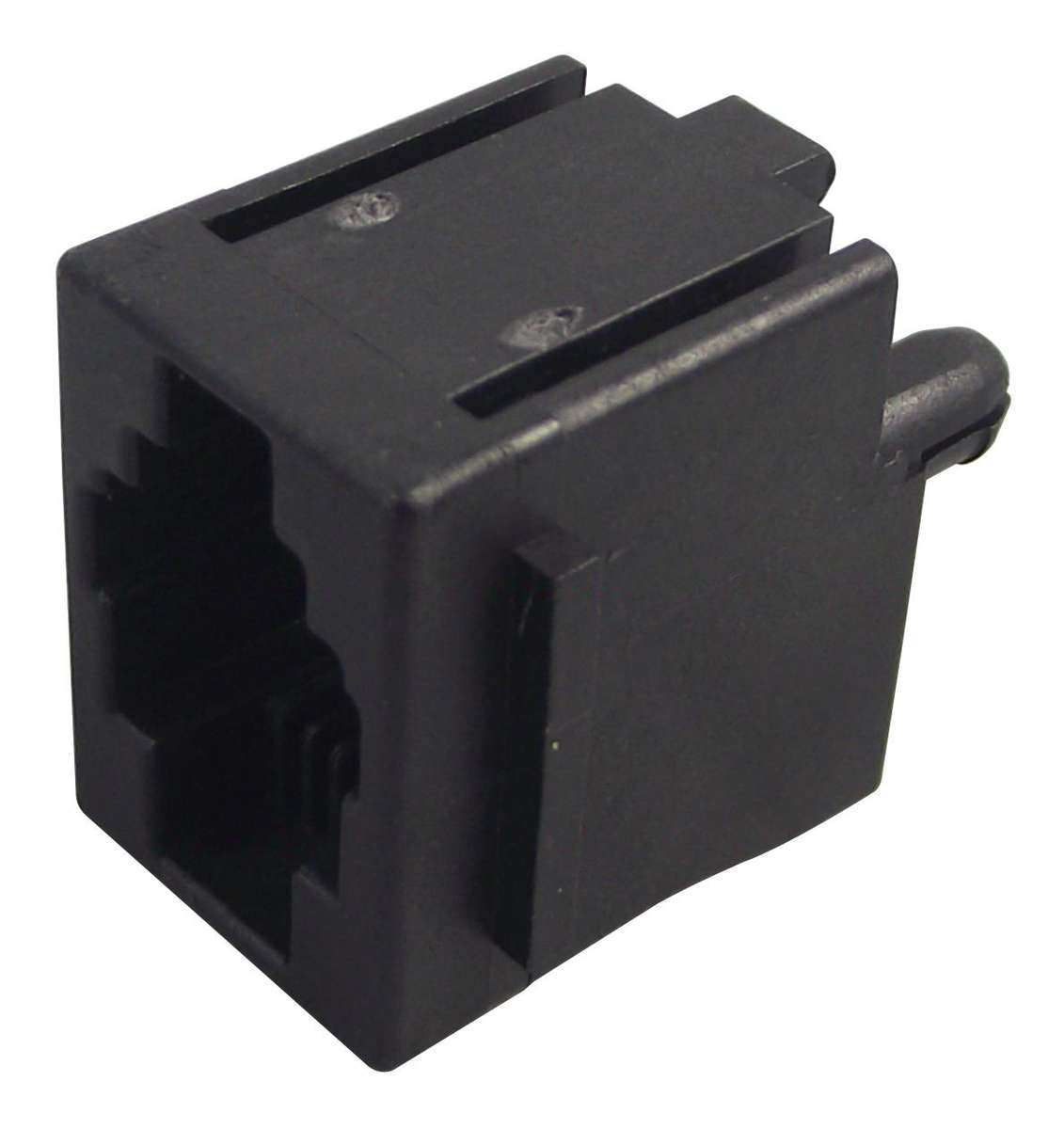

TE Connectivity (5520257-2) Modular Connector, RJ22 Jack, 1 x 1 (Port)

Modular Connector, RJ22 Jack, 1 x 1 (Port), 4P4C, Cat3, Through Hole MountProduct OverviewThe 5520257-2 is a 4P4C 1-port Cat3 unshielded through-hole RJ22 Modular Jackwith top entry. It meets 1000V dielectric requirement contact to contact anddesigned for direct mounting on pc boards. It has phosphor bronze plated withgold in contact area and tin-lead on solder tails over nickel under-platecontacts, polyester, polyphenylene sulphide or high temperature nylon materialand finish housing.Designed for ease of soldering and board cleaning20dB shielding effectiveness from 30 to 400MHzUL94V-0 Flammability150VAC Voltage rating1.5A Current rating (maximum)750 Mating cycles durabilityApplicationsComputers & Computer Peripherals, Communications & NetworkingProduct InformationConnector Type: RJ22Modular Connector Type: RJ22 JackPort Configuration: 1 x 1 (Port)Gender: JackNo. of Contacts: 4ContactsNo. of Positions / Loaded Contacts (per Port): 4P4CLAN Category: Cat3Connector Mounting: Through Hole MountNo. of Ports: 1PortsConnector Orientation: VerticalContact Termination Type: Through HoleShielding: UnshieldedMagnetics: Without MagneticsContact Plating: Gold Plated ContactsLEDs: Without LEDContact Material: Phosphor BronzeLight Pipes: Without Light PipeProduct Range: CGS TE TE-MA
