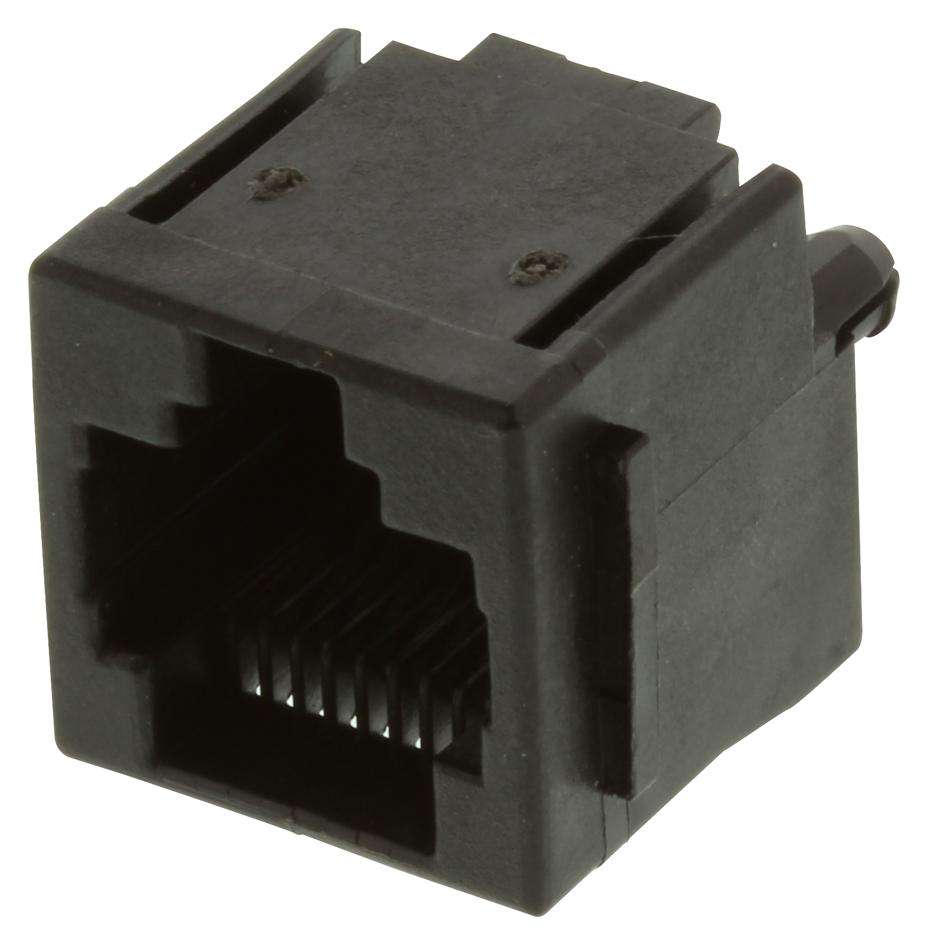

TE Connectivity (5520259-4) Modular Connector, RJ45 Jack, 1 x 1 (Port)

Modular Connector, RJ45 Jack, 1 x 1 (Port), 8P8C, Cat3, Through Hole MountProduct OverviewThe 5520259-4 is a CAT-3 8P8C/RJ45 unshielded Modular Plug with phosphor bronzecontacts and PBT polyester housing. Designed for direct mounting on PC boards,ease of soldering and board cleaning.Top entry (vertical) PCB mounting orientationMeets 1000V dielectric requirement contact to contact20dB Shielding effectiveness from 30 to 400MHz1.5A at 25°C Current rating150VAC Maximum voltage rating1000VAC Dielectric withstanding voltageApplicationsCommunications & Networking, Computers & Computer Peripherals, ConsumerElectronics, Wireless, IndustrialProduct InformationModular Connector Type: RJ45 JackPort Configuration: 1 x 1 (Port)Gender: JackNo. of Contacts: 8ContactsNo. of Positions / Loaded Contacts (per Port): 8P8CNo. of Positions: 8WaysLAN Category: Cat3Connector Mounting: Through Hole MountNo. of Ports: 1PortsConnector Orientation: VerticalContact Termination Type: Through HoleShielding: UnshieldedMagnetics: Without MagneticsContact Plating: Gold Plated ContactsLEDs: Without LEDContact Material: Phosphor BronzeLight Pipes: Without Light PipeProduct Range: CGS TE TE-MA
