TE Connectivity (5530843-3) Card Edge Connector, Dual Side, 1.85 mm

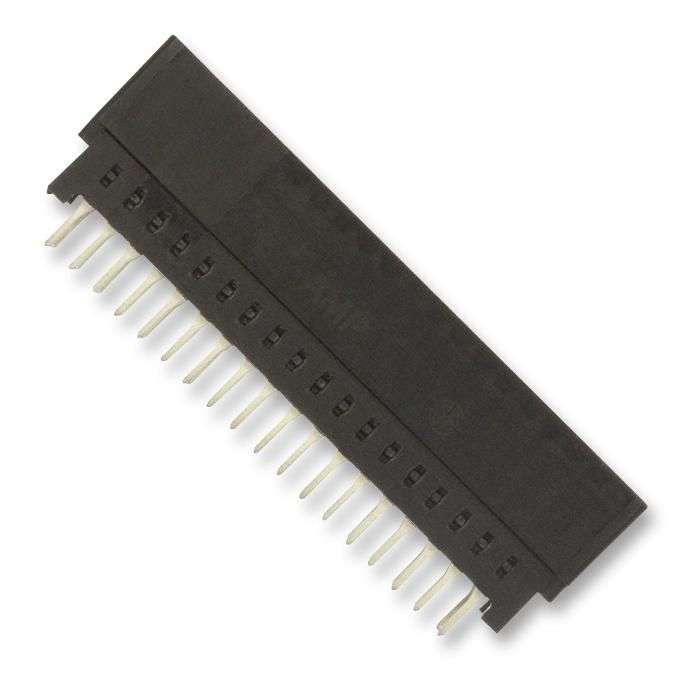

Card Edge Connector, Dual Side, 1.85 mm, 36 Contacts, Through Hole Mount,Straight, SolderProduct OverviewThe 5530843-3 is a 18-position 2-row vertical Board-to-Board Card Edge Connectorwith gold-plated phosphor bronze contacts and black GF polyester housing. TheStandard Edge II receptacle supports through-hole solder termination method toPC board and solder tails PCB mount retention. It is applicable to?printedcircuit board. 0.64mm square solid posts meet standard wrap type specifications.It accepts double sided PC boards, 1.27 to 1.78mm thick.Solder postKeyed mating alignmentApplicationsIndustrialProduct InformationCard Edge Connector Type: Dual SideNo. of Contacts: 36ContactsCard Thickness: 1.85mmNo. of Contacts: 36 ContactsCard Edge / Backplane Connector Type: Card EdgeConnector Mounting: Through Hole MountPitch Spacing: 2.54mmConnector Body Orientation: StraightContact Termination Type: SolderContact Material: Phosphor BronzeNo. of Rows: 2RowsContact Plating - Mating Side: 30µ" Gold Plated ContactsRow Pitch: 4.85mmConnector Body Material: PET (Polyester), Glass Filled BodyContact Plating: Gold Plated ContactsProduct Range: Standard Edge II
