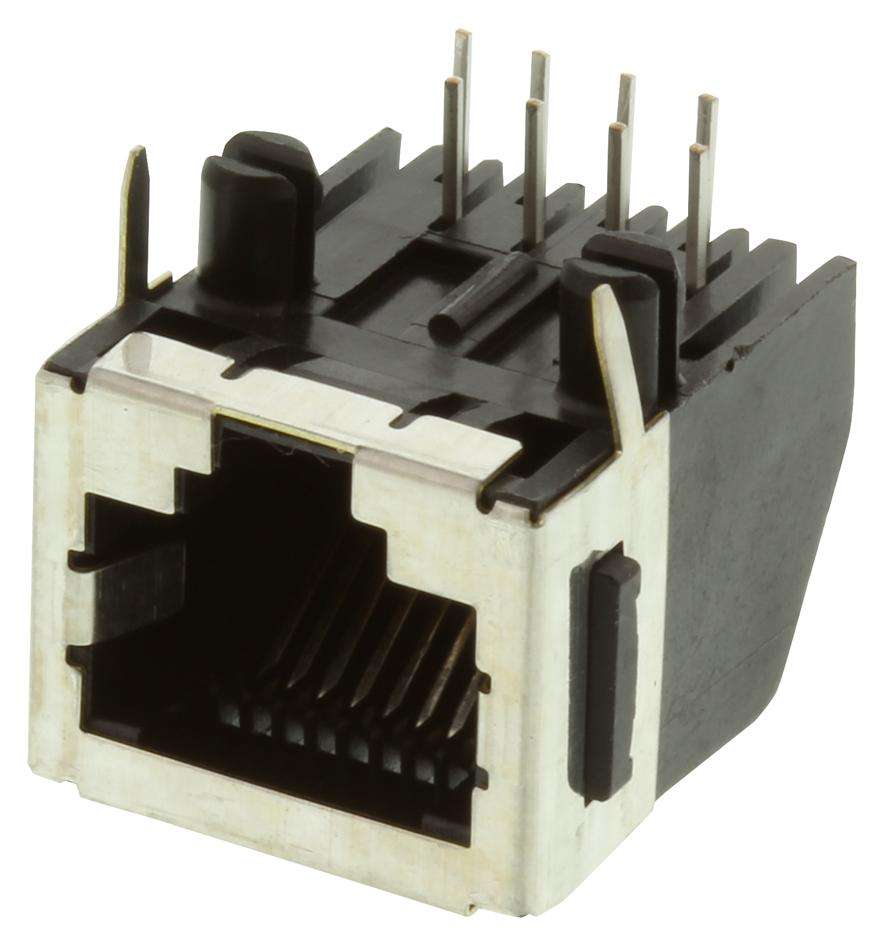

TE Connectivity (5555153-1) Modular Connector, RJ45 Jack, 1 x 1 (Port)

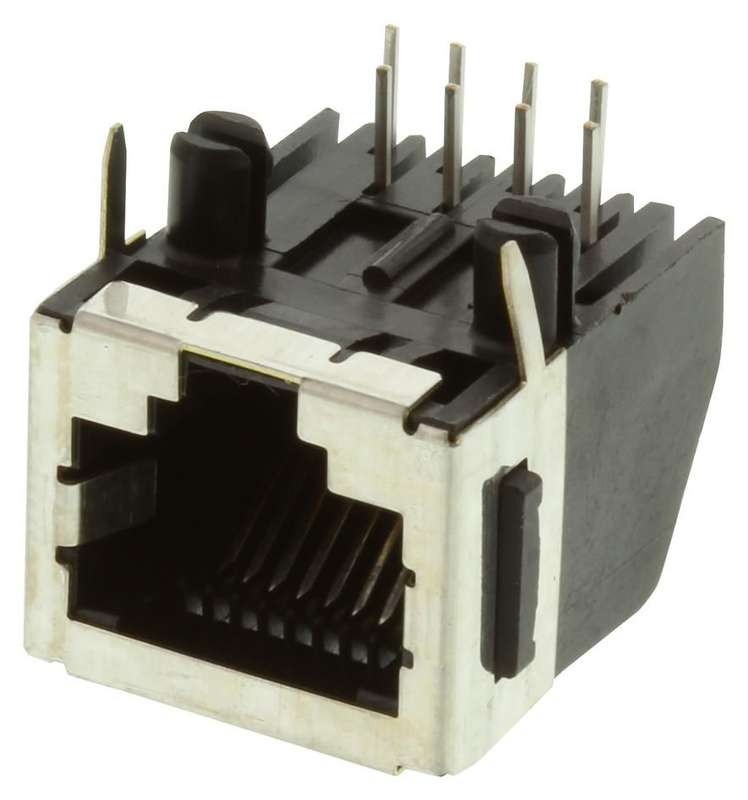

Modular Connector, RJ45 Jack, 1 x 1 (Port), 8P8C, Cat3, Through Hole MountProduct OverviewThe 5555153-1 is a 8P8C 1-port RJ45/CAT-3 shielded right angle Modular Jack withgold-plated phosphor bronze contacts, black PBT polyester housing, panel stopsand tin-plated copper alloy shield. It is designed for direct mounting on PCboards, ease of soldering and board cleaning.Solder termination150VAC Maximum voltage rating750 Mating cycles durabilityUL94V-0 Flammability ratingApplicationsComputers & Computer PeripheralsProduct InformationModular Connector Type: RJ45 JackPort Configuration: 1 x 1 (Port)Gender: JackNo. of Contacts: 8ContactsNo. of Positions / Loaded Contacts (per Port): 8P8CNo. of Positions: 8WaysLAN Category: Cat3Connector Mounting: Through Hole MountNo. of Ports: 1PortsConnector Orientation: Right AngleContact Termination Type: Through HoleShielding: ShieldedMagnetics: Without MagneticsContact Plating: Gold Plated ContactsLEDs: Without LEDContact Material: Phosphor BronzeLight Pipes: Without Light Pipe
