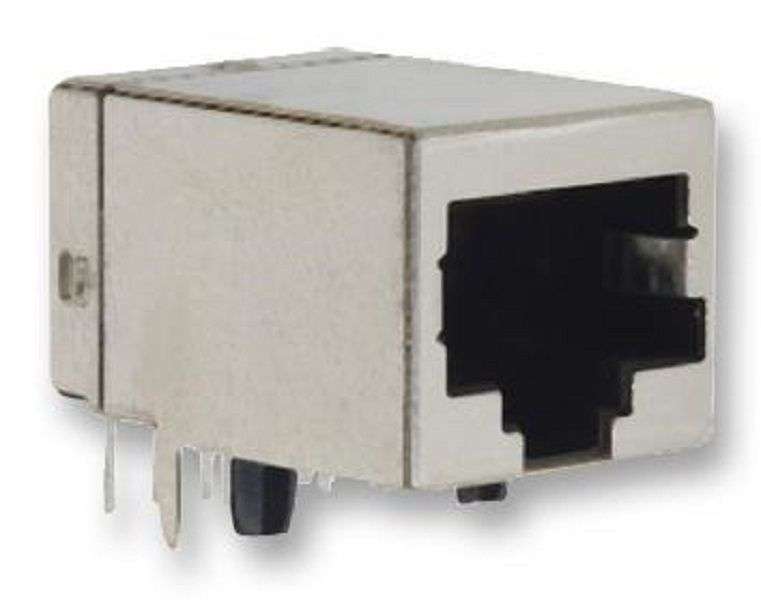

TE Connectivity (5558342-1) Modular Connector, RJ45 Jack, 1 x 1 (Port)

Modular Connector, RJ45 Jack, 1 x 1 (Port), 8P6C, Cat5e, Through Hole MountProduct OverviewThe 5558342-1 is a 8P8C 1-port RJ45/CAT-5e shielded right angle Modular Jackwith gold-plated phosphor bronze contacts, black high temperature nylon housingand tin-plated copper alloy shield. It is designed for direct mounting on PCboards, ease of soldering and board cleaning.Solder termination150VAC Maximum voltage rating750 Mating cycles durabilityUL94V-0 Flammability ratingApplicationsComputers & Computer PeripheralsProduct InformationConnector Type: ModularModular Connector Type: RJ45 JackPort Configuration: 1 x 1 (Port)Gender: JackNo. of Contacts: 8ContactsNo. of Positions / Loaded Contacts (per Port): 8P6CNo. of Positions: 8WaysLAN Category: Cat5eConnector Mounting: Through Hole MountNo. of Ports: 1PortsConnector Orientation: Right AngleContact Termination Type: Through HoleShielding: ShieldedMagnetics: Without MagneticsContact Plating: Gold Plated ContactsLEDs: With LEDContact Material: Phosphor BronzeLight Pipes: Without Light PipeProduct Range: PCF
