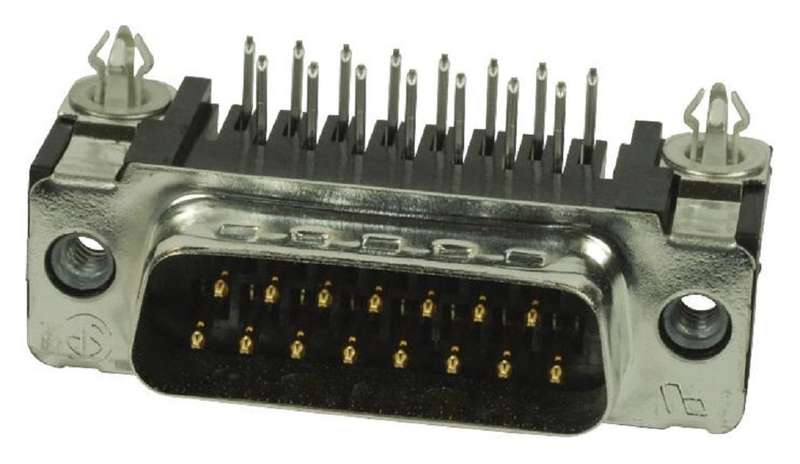

TE Connectivity (5747841-4) D Sub Connector, DB15, 15 Contacts, Plug

D Sub Connector, DB15, Standard, Plug, AMPLIMITE HD-20, 15 Contacts, DA, SolderProduct OverviewThe 5747841-4 is a 15-way 2-row front metal shell D-sub Plug with gold-platedbrass contacts and clear chromate-plated zinc 4-40 UNC threaded inserts. TheAmplimite HD-20 series right angle posted plug comes with grounding indents,grounding straps, black nylon/polyester housing, tin-plated brass eyelet,tin-plated carbon steel shell and tin-plated solder tail. Plugs are preloadedwith size 20 DF posted pin contacts. Connectors are intermateable with any size20 subminiature D connectors dimensionally complying with MIL-C-24308. The frontmetal-shell design is compatible with full metal-shell connectors.UL94V-0 Flammability ratingRight angle through hole PCB mountingCopper alloy boardlockApplicationsIndustrial, Computers & Computer PeripheralsProduct InformationD Sub Connector Type: StandardNo. of Contacts: 15ContactsGender: Plug (View Associated Connectors)Product Range: AMPLIMITE HD-20D Sub Shell Size: DAContact Termination Type: SolderConnector Mounting: Through Hole Mount Right AngleContact Material: BrassContact Plating: Gold over Palladium Nickel, GoldConnector Body Material: Carbon Steel Body
