TE Connectivity (5747843-4) D Sub Connector, DB37, 37 Contacts, Plug

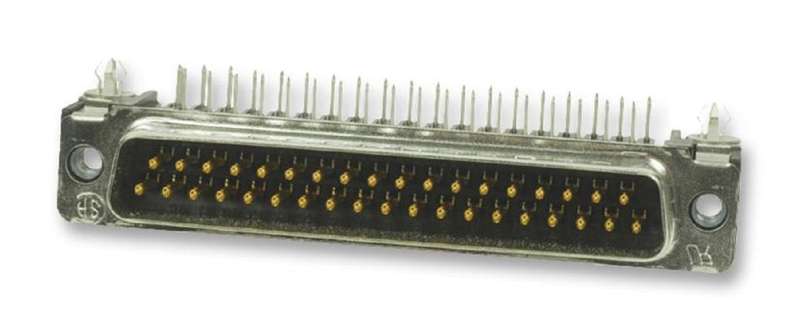

D Sub Connector, DB37, Standard, Plug, AMPLIMITE HD-20, 37 Contacts, DC, SolderProduct OverviewThe 5747843-4 is a 37-position 2-row right-angle posted PCB D-sub Connector withgold-plated phosphor bronze contacts and UL94V-0 rated thermoplastic housing.The Amplimite HD-20 series receptacle supports through-hole PCB mountingstyle?and threaded insert, 4-40 UNC mating connector lock.?This stacked PCBconnector is members of the complete line of Amplimite D-sub connector familywhich has been accepted by the electronic industry for their rugged design andease of application. Stacked connectors add the advantage of reducing overallboard real estate normally consumed by individual PCB connectors.Front metal-shells for EMI/RFI shieldingHybrid styles provide maximum selectivity and permit mixing of signal speedsApplicationsIndustrialProduct InformationD Sub Connector Type: StandardNo. of Contacts: 37ContactsGender: Plug (View Associated Connectors)Product Range: AMPLIMITE HD-20D Sub Shell Size: DCContact Termination Type: SolderConnector Mounting: Through Hole Mount Right AngleContact Material: Phosphor BronzeContact Plating: Gold Flash over Palladium Nickel Plated ContactsConnector Body Material: Carbon Steel Body
