TE Connectivity (5767054-1) Mezzanine Connector, Receptacle, 0.64 mm

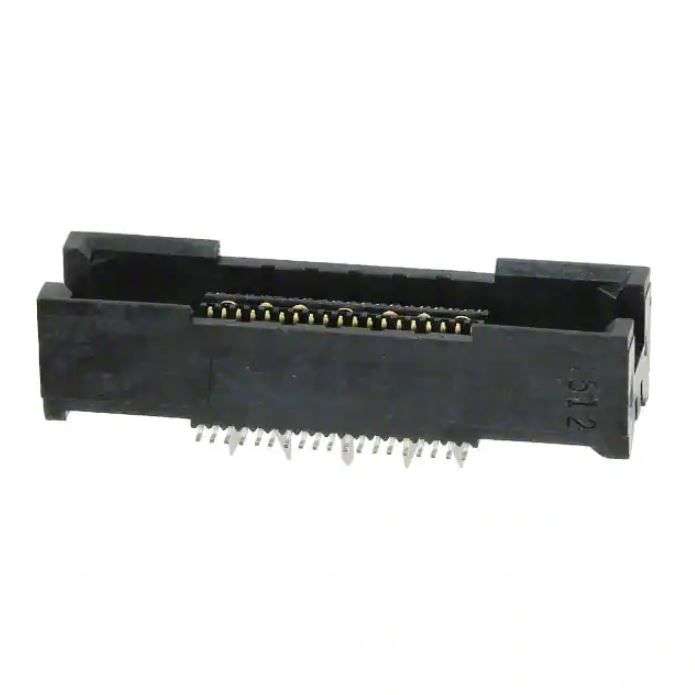

Mezzanine Connector, Receptacle, 0.64 mm, 1 Rows, 38 Contacts, Surface Mount,Copper AlloyProduct OverviewThe 5767054-1 is a 38-way 2-row 0.64mm SMT Mictor Connector Vertical Receptacle,0.9-inch stack height, copper alloy contacts with palladium nickel plating, LCPhousing and black colour. The MICTOR connector family is based on the microstripconcept of two rows of signal contacts divided by a centre power ground plane.MICTOR connectors are motherboard and daughter card compatible and includedesigns for cable-to-board applications. Various mated heights are available forparallel board to-board systems. The MICTOR connector family is available in0.64mm (0.025-inch) centrelines and in sizes ranging from 38 signal positions to266 positions (in increments of 38 positions). The housing material is a liquidcrystal polymer, compatible with infrared and forced air convection operations.The connector system uses the solid ground bus between the rows of signals toprovide low crosstalk and excellent high-speed signal characteristics.10000MR Insulation resistance500V Dielectric withstanding voltageUL94V-0 Flammability ratingApplicationsIndustrialProduct InformationMezzanine Connector Type: Receptacle (View Associated Connectors)No. of Contacts: 38ContactsPitch Spacing: 0.64mmNo. of Rows: 1RowsConnector Mounting: Surface MountContact Material: Copper AlloyContact Plating: Gold Plated ContactsProduct Range: MICTOR
