TE Connectivity (6339160-1) Modular Connector, Cat5, RJ45 Jack

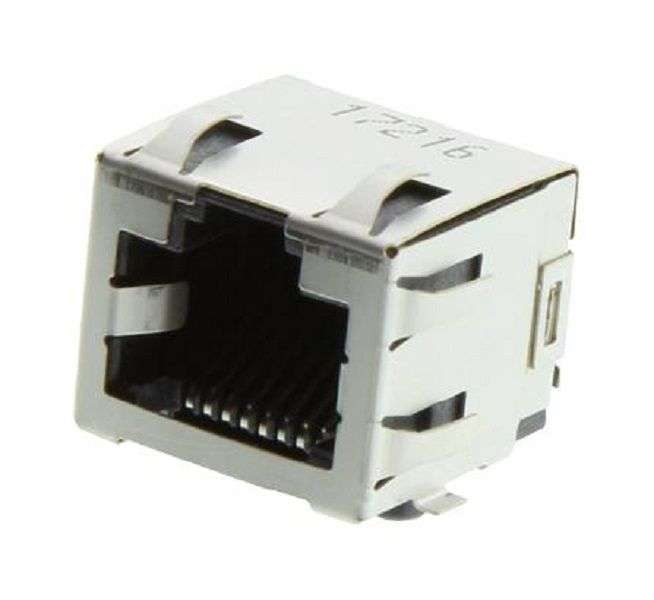

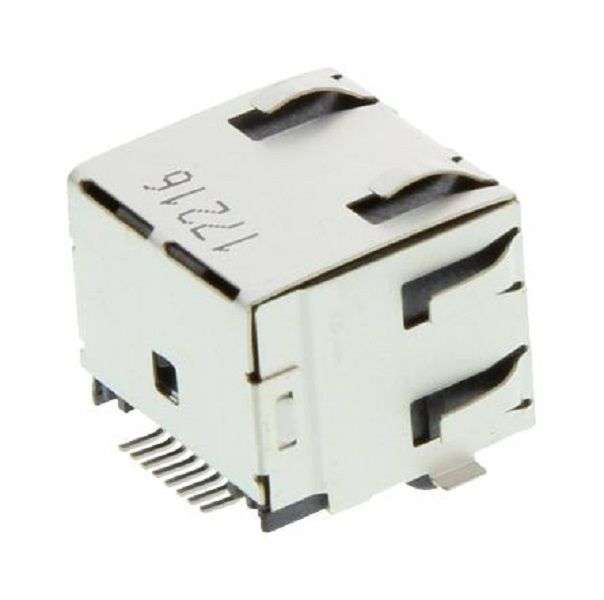

Modular Connector, Cat5, RJ45 Jack, 1 x 1 (Port), 8P8C, Cat5, Surface MountProduct OverviewThe 6339160-1 is a 1-port 8P8C RJ45/CAT-5 shielded surface-mount right angleModular Jack with gold-plated phosphor bronze contacts, high temperature blackthermoplastic housing and tin over nickel plated brass shield. It is designedfor direct mounting on PC boards, ease of soldering and board cleaning.Solder termination150VAC Maximum voltage rating750 Mating cycles durabilityUL94V-0 Flammability ratingApplicationsIndustrialProduct InformationModular Connector Type: RJ45 JackPort Configuration: 1 x 1 (Port)Gender: JackNo. of Contacts: 8ContactsNo. of Positions / Loaded Contacts (per Port): 8P8CNo. of Positions: 8WaysLAN Category: Cat5Connector Mounting: Surface MountNo. of Ports: 1PortsConnector Orientation: Right AngleContact Termination Type: Surface MountShielding: ShieldedMagnetics: Without MagneticsContact Plating: Gold Plated ContactsLEDs: Without LEDContact Material: Phosphor BronzeLight Pipes: Without Light Pipe
