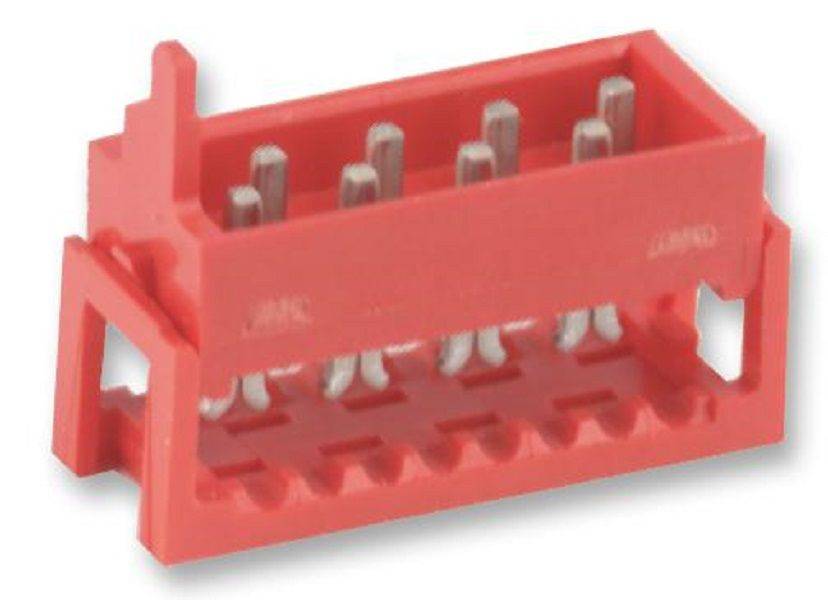

TE Connectivity (7-215083-8) IDC Connector, IDC Plug, Male, 1.27 mm, 2 Row

IDC Connector, IDC Plug, Male, 1.27 mm, 2 Row, 8 Contacts, Cable MountProduct OverviewThe Micro-MaTch Male-on-Wire Connector from TE Connectivity are supplied withpreassembled cover. This provides excellent positioning of ribbon cable beforeand during insulation displacement process. After termination cover is held inplace by each individual contact in addition to two plastic latches at both endsof connector. For wire connection a well known type blade with single slot isused. The insides of slots are tin plated for stable and reliable connections.Available in 4 to 24 positionsOperating voltage?of 100VDCTin contact finishContact material is phosphor bronze1.27mm pitch spacingGlass filled polyester housingOperating temperature range -40°C to 105°CUL 94 V-0 flammability ratingUL recognizedApplicationsIndustrialProduct InformationPitch Spacing: 1.27mmIDC Connector Type: IDC PlugContact Gender: MaleNo. of Contacts: 8ContactsNo. of Rows: 2 RowConnector Mounting: Cable MountContact Material: Phosphor BronzeContact Plating: Tin Plated ContactsProduct Range: Micro-MaTch
