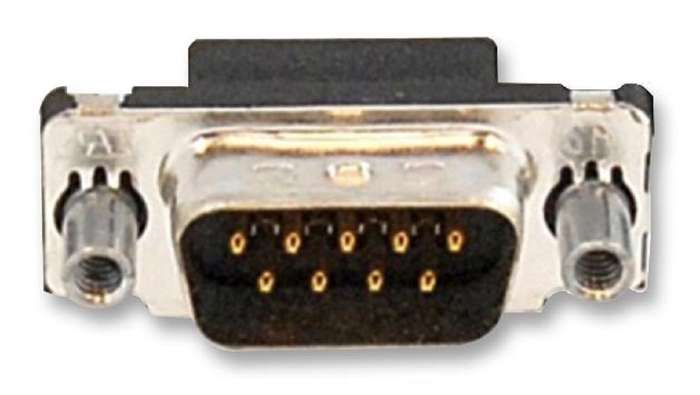

TE Connectivity (747840-4) D Sub Connector, DB9, 9 Contacts, Plug

D Sub Connector, DB9, Standard, Plug, AMPLIMITE HD-20, 9 Contacts, DE, SolderProduct OverviewThe AMPLIMITE HD-20 series Solder-cup D-sub Connectors with phosphor bronzeduplex plated contacts with gold flash on mating end, tin on solder cup withentire contact nickel under-plated, thermoplastic inserts and steel, tin or zincplated shell.Preloaded duplex-plated solder cup contactsTwo-piece UL94V-0 rated plastic insertAnti-solderwicking contact designIntermateable with other subminiature D connectorsAvailable in 9, 15, 25 and 37 position (shell sizes 1-4) plugs and receptaclesEasy application without special application toolsShields offer full EMI shielding and ESD insulationCrimped shield termination for low impedanceShield crimp provides strain reliefShields may be post moulded or covered with enclosuresApplicationsCommunications & Networking, Computers & Computer Peripherals, IndustrialProduct InformationD Sub Connector Type: StandardNo. of Contacts: 9ContactsGender: Plug (View Associated Connectors)Product Range: AMPLIMITE HD-20D Sub Shell Size: DEContact Termination Type: SolderConnector Mounting: Through Hole Mount Right AngleContact Plating: Gold Flash over Palladium Nickel Plated ContactsConnector Body Material: Steel Body
