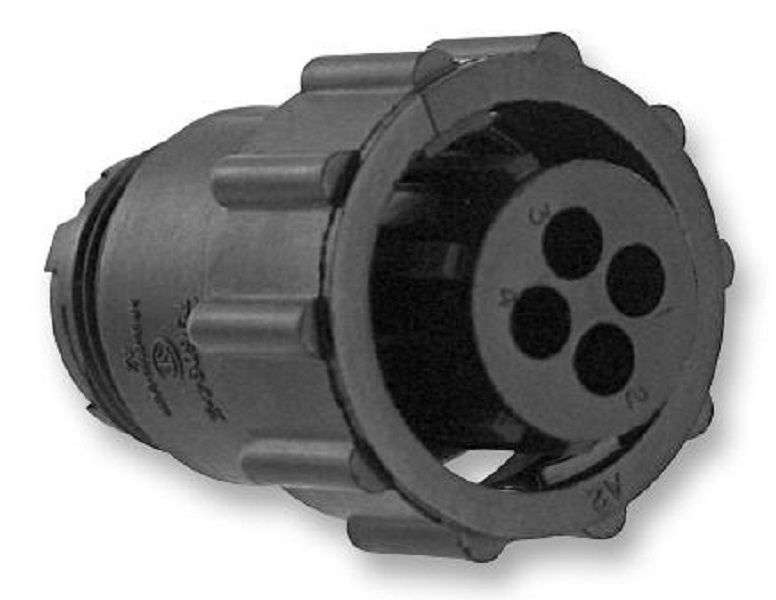

TE Connectivity (796094-2) Circular Connector, Cable Mount Plug, 4 Contacts

Circular Connector, CPC Series 1, Cable Mount Plug, 4 Contacts, Nylon(Polyamide) BodyProduct OverviewThe 796094-2 is a 4-postion Straight Plug with socket type contacts, UL94V-0rated black thermoplastic housing and 11-4 insert arrangement. The standard sexone-piece sealed circular plastic connector is the latest product innovation tothe sealed CPC product family. This design allows for easy assembly. The housingand the seal are attached. A newly designed wire entry seal protects the rear ofthe connector and a peripheral seal protects the connector interface. Simplycrimp the contact onto a wire and insert the crimped wire contact through theseal and into the housing cavity. The series 1 connector permit the use ofmultiple combinations of signal and coaxial circuits in the same housing byaccepting durable multi-mate contacts. Type III+ contacts (0.062-inch (1.57mm)pin diameter) are capable of carrying a maximum of 13A when crimped in wire.LightweightQuick connect/disconnect capability with thread assist, positive detent couplingPolarized for proper mating of connector halvesKeyed mating alignmentThreaded coupling mating retentionContact protectionContains wire entry and peripheral sealsApplicationsIndustrialProduct InformationProduct Range: CPC Series 1Circular Connector Shell Style: Cable Mount PlugNo. of Contacts: 4ContactsConnector Body Material: Nylon (Polyamide) Body
