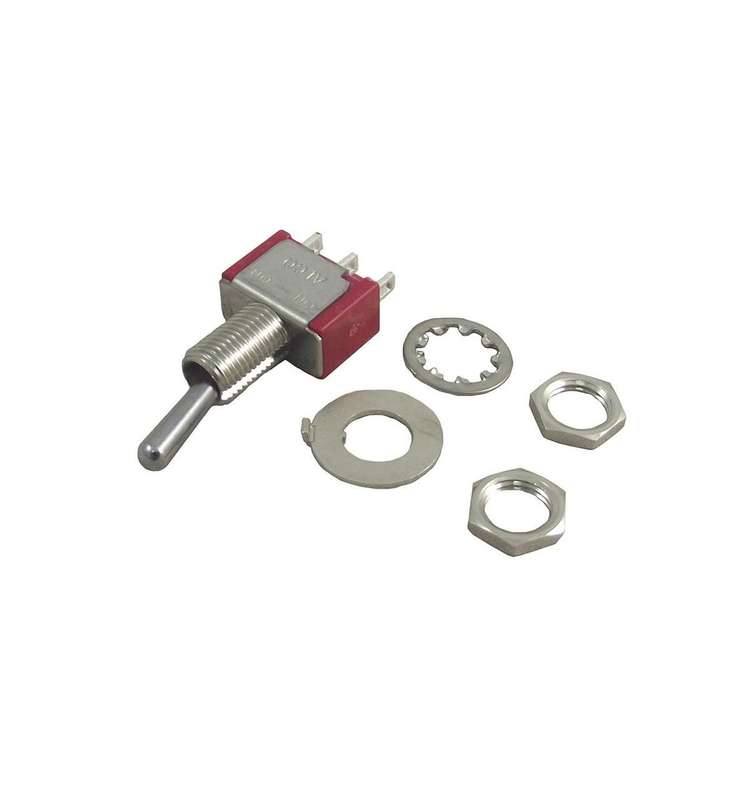

TE Connectivity (A101SYZQ04) Toggle Switch, On-On, SPDT, Non Illuminated

TE Connectivity (A101SYZQ04) Toggle Switch, On-On, SPDT, Non Illuminated

2341 available / new
R285.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
1197667
Bob Shop ID
645117751
Toggle Switch, On-On, SPDT, Non Illuminated, GEMINI, Panel Mount, 5 AProduct InformationSwitch Operation: On-OnContact Configuration: SPDTIllumination: Non IlluminatedProduct Range: GEMINISwitch Mounting: Panel MountContact Current Max: 5AContact Voltage AC Nom: 250VSwitch Terminals: SolderContact Voltage DC Nom: 30VProduct OverviewThe A101SYZQ04 is a single-pole double-throw bat long Toggle Switch withsilver-plated copper alloy wire lug terminations and contact, nickel-platedbrass alloy actuator, thermoplastic case, 1/4-40 threaded 0.35-inch (8.9mm) longnickel-plated brass alloy bushing, phenolic internal actuator and tin-platedbrass support bracket.Epoxy sealStainless steel frame10mR at 2 to 4VDC/100mA Maximum contact resistance1000MR Insulation resistance1000VRMS at sea level Dielectric strengthIP67 Protection rating-30 to +85°C Operating temperature rangeApplicationsIndustrial, Audio, Lighting, Medical, Sensing & Instrumentation, Communications& Networking
Add to cart
