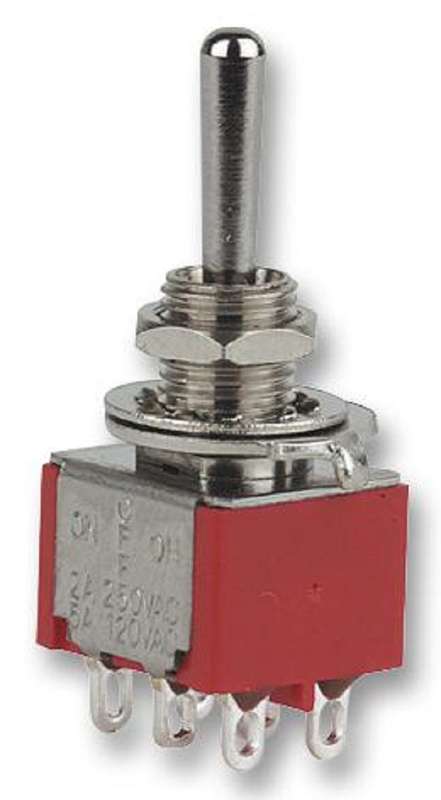

Te Connectivity (A205SYZQ04) Toggle Switch, (On)-Off-(On), DPDT, 5 A

Toggle Switch, (On)-Off-(On), DPDT, Non Illuminated, A, Panel Mount, 5 AProduct InformationSwitch Operation: (On)-Off-(On)Contact Configuration: DPDTIllumination: Non IlluminatedProduct Range: ASwitch Mounting: Panel MountContact Current Max: 5AContact Voltage AC Nom: 250VSwitch Terminals: SolderContact Voltage DC Nom: 30VProduct OverviewThe A205SYZQ04 is a double-pole double-throw (DPDT) Toggle Switch withsilver-plated contacts. The Gemini A series offer extensive one pole withmulti-circuit configurations including momentary function, locking toggle toavoid unwanted switching as well as bat and flat toggles in different lengths.Terminals are epoxy sealed to prevent the entry of flux, solvent and othercontaminants. Gemini A series switch available with wire lug terminal choices.Baton long toggle style10mR Contact resistance1000VAC Dielectric strength1000MR Insulation resistanceThreaded bushingVertical terminationUL94V-0 Flammability ratingApplicationsIndustrial, Audio, Medical, Lighting, Sensing & Instrumentation, Communications& Networking
