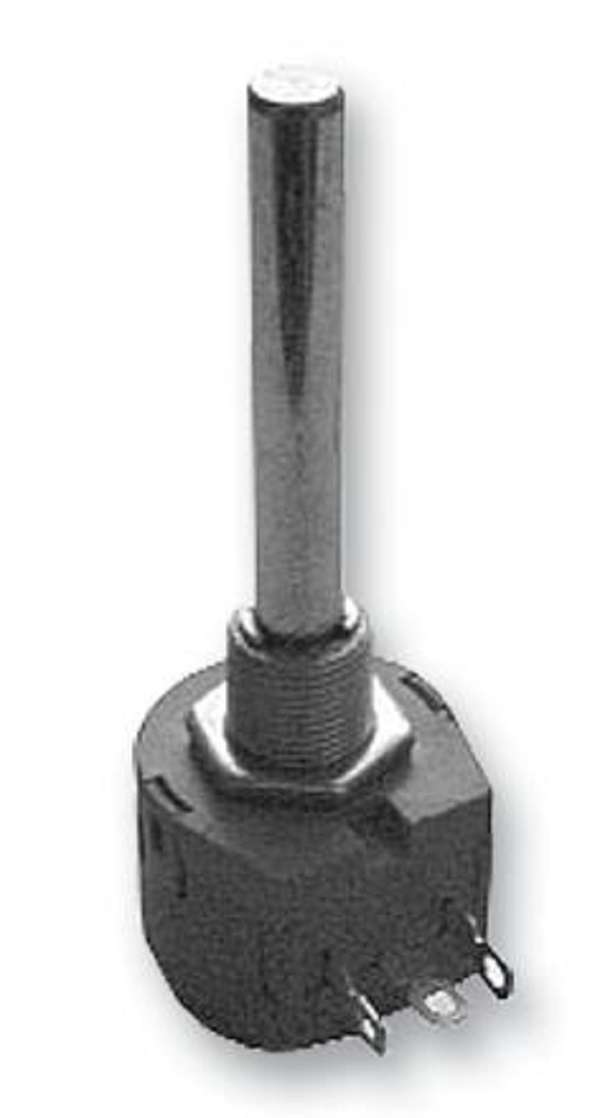

Te Connectivity (TW1250KA) Rotary Potentiometer, Wirewound, 25 ohm

Te Connectivity (TW1250KA) Rotary Potentiometer, Wirewound, 25 ohm

879 available / new
R715.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
1502914
Bob Shop ID
645115903
Rotary Potentiometer, Wirewound, 25 ohm, 1 Turns, Linear, 1 W, ± 10%, TW125Product InformationTrack Resistance: 25ohmNo. of Turns: 1TurnsTrack Taper: LinearPower Rating: 1WResistance Tolerance: ± 10%Product Range: TW125Potentiometer Mounting: Panel MountShaft Diameter: 6.35mmNo. of Gangs: 1Adjustment Type: Screwdriver SlotShaft Length: 25mmTemperature Coefficient: ± 100ppm/°CPotentiometer Type: High PowerResistor Technology: WirewoundPotentiometer Terminals: Solder LugResistor Case / Package: -Product Length: 42.5mmProduct Width: -Product Height: -Operating Temperature Min: -55°COperating Temperature Max: 125°CProduct OverviewThe TW1250KA is a 25kR 1W 1-turn 1-gang panel-mounting spindle operated RotaryPotentiometer with screwdriver slot adjustment, linear track taper and plainshaft. The high power wirewound potentiometer features eyelet termination, lowterminal resistance and excellent linearity.Proven reliabilityRobust constructionSingle top spindle adjustment-55 to 125°C Operating temperature range
