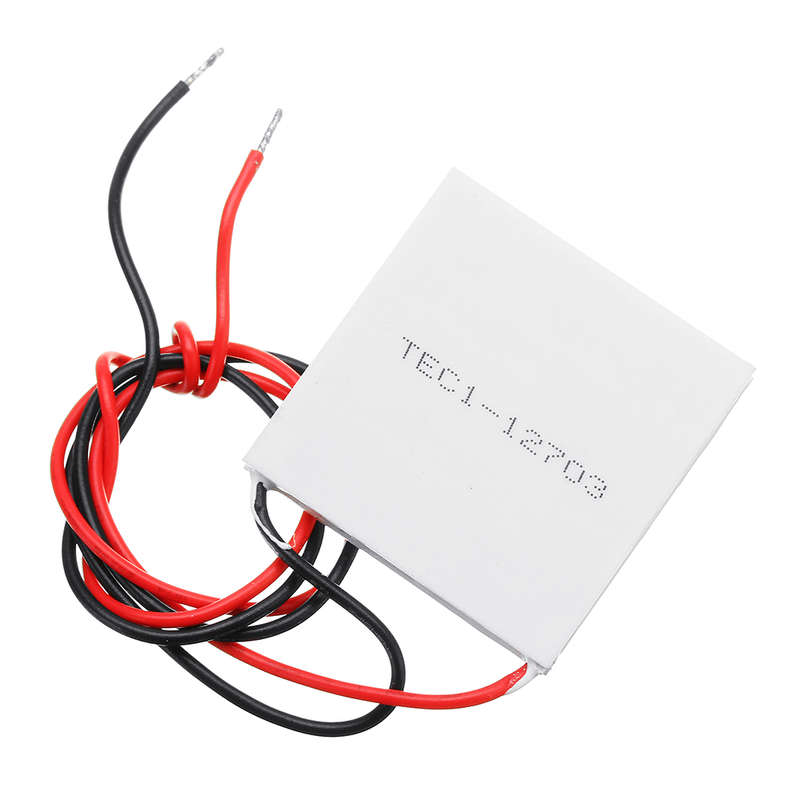

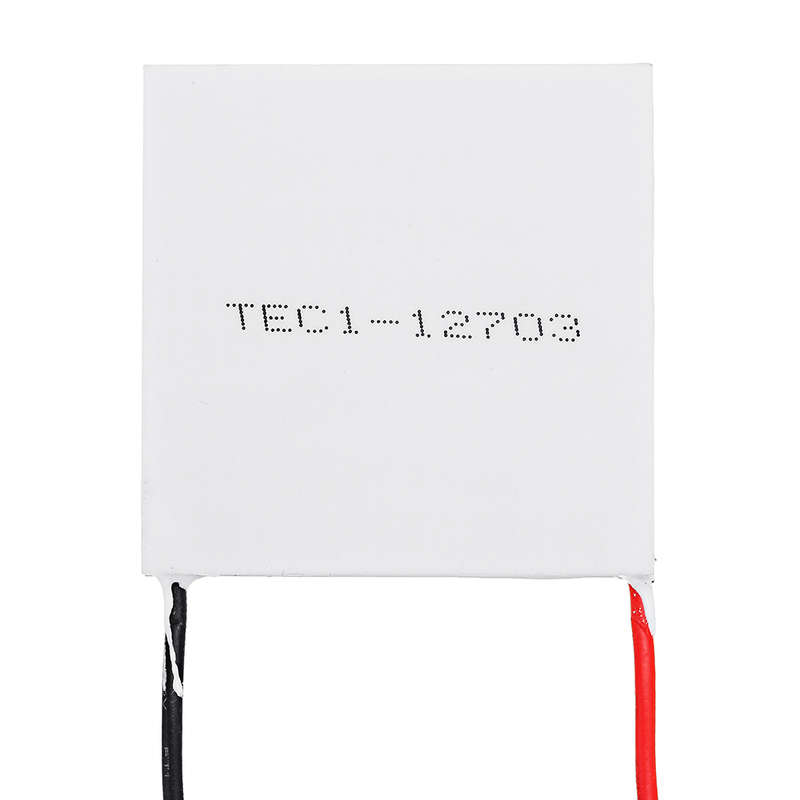

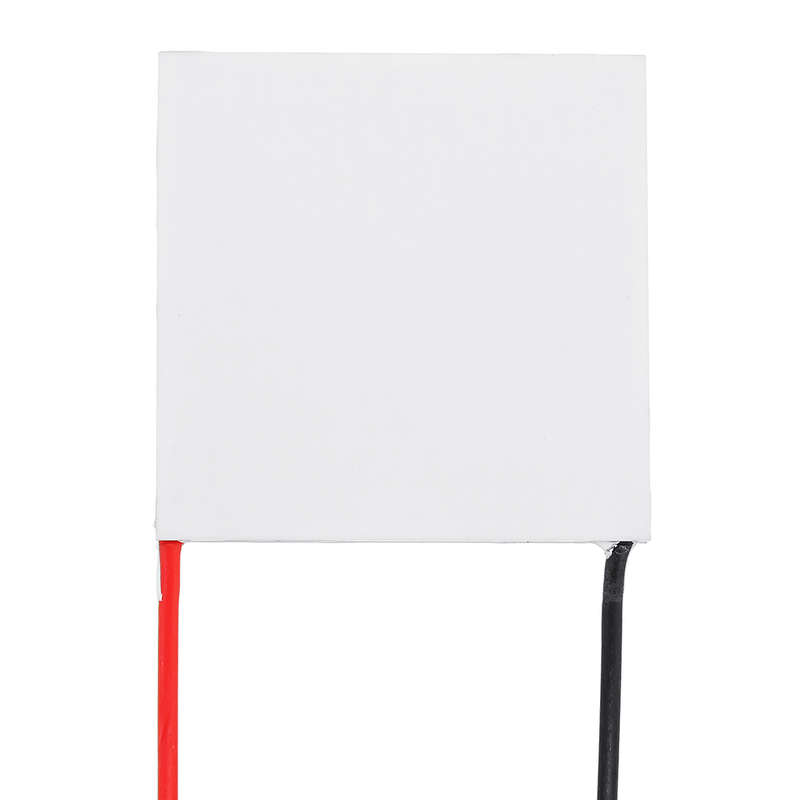

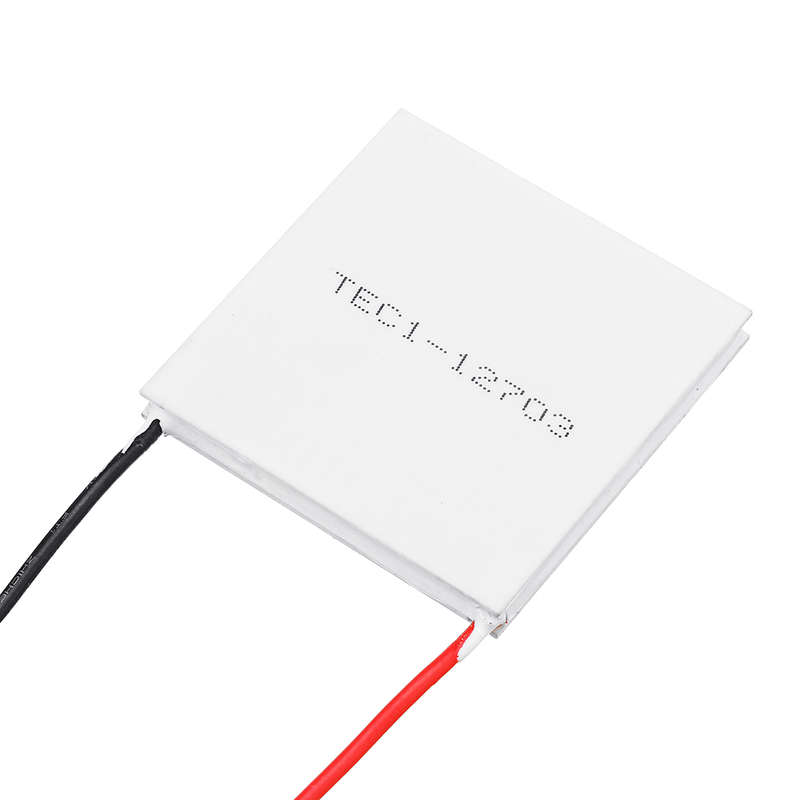

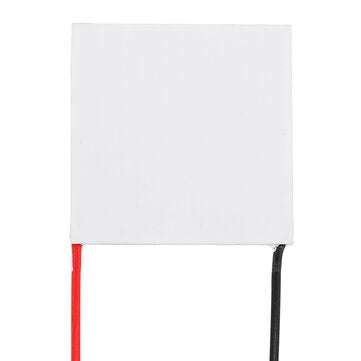

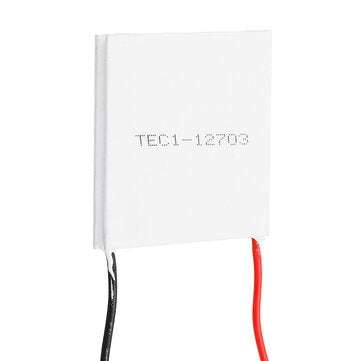

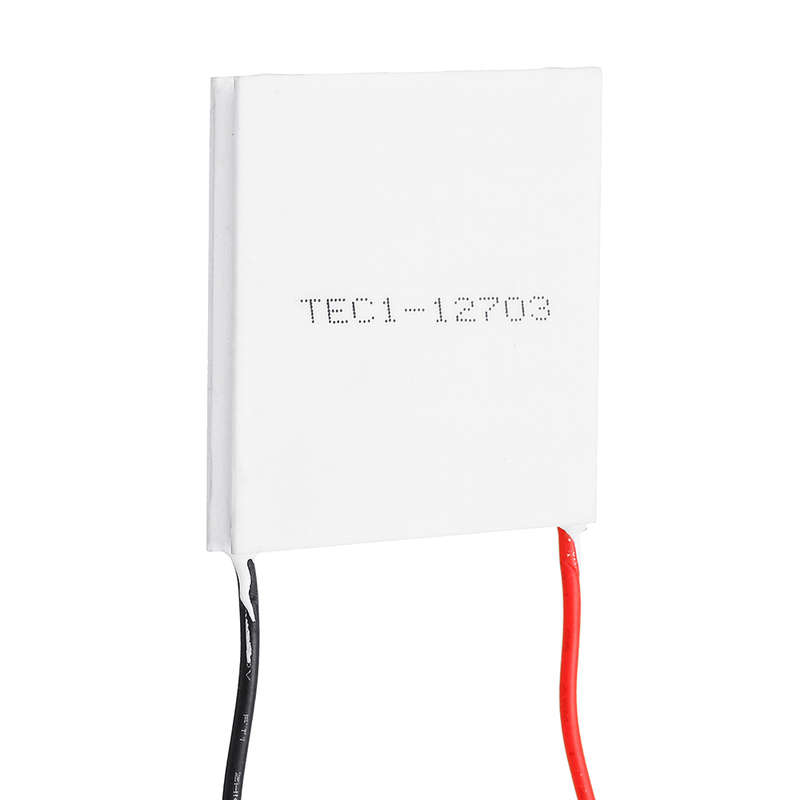

TEC1-12703 40x40MM 12V3A Thermoelectric Cooler Peltier Refrigeration Plate

20 available / new

R396.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3590

93.02 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643389905

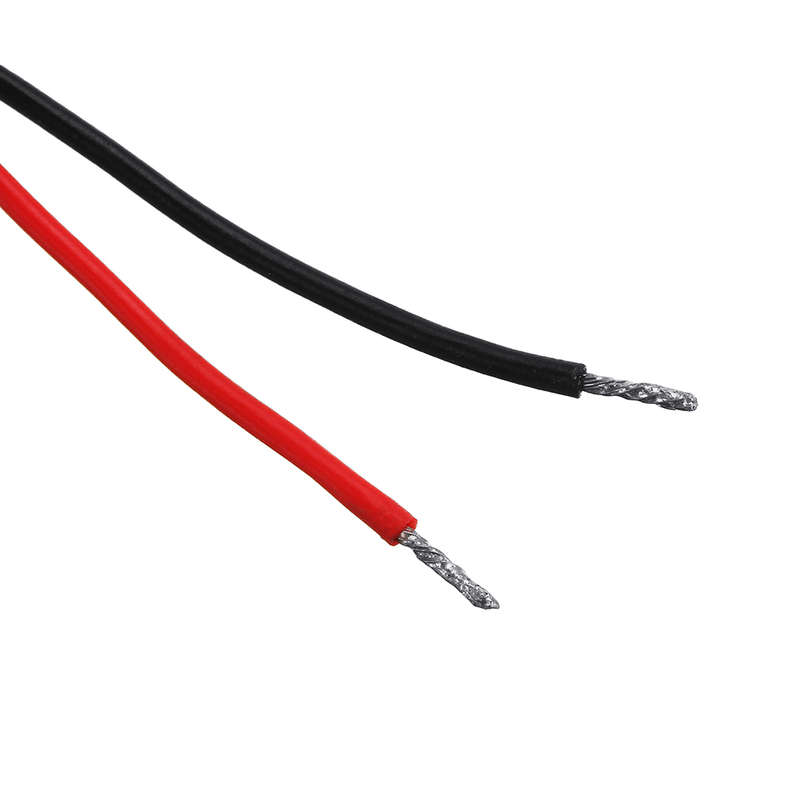

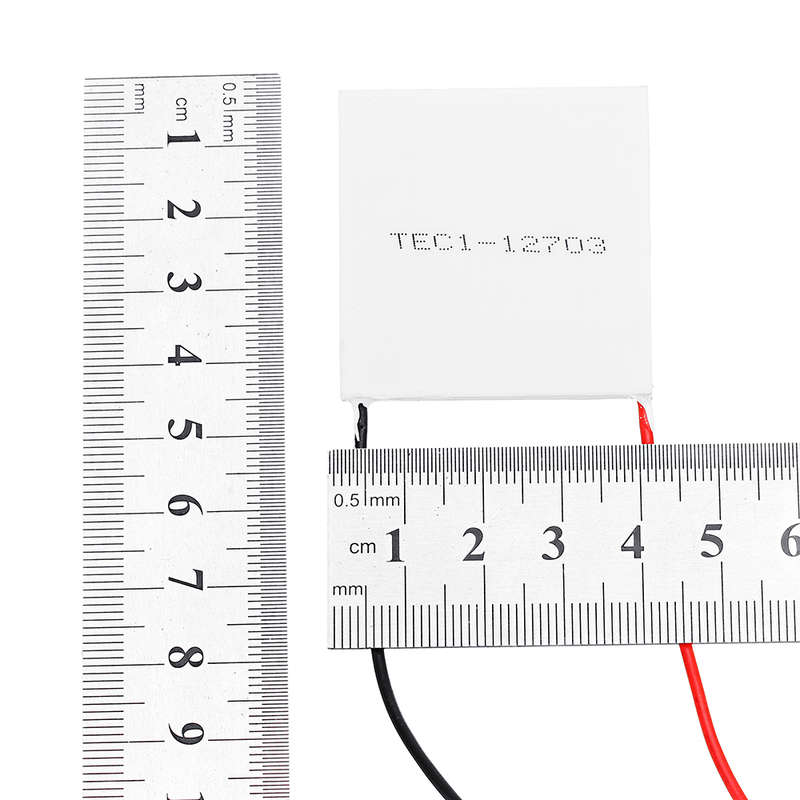

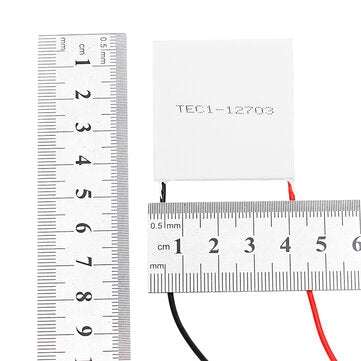

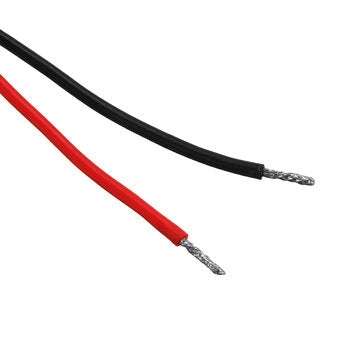

Description: Chip model: TEC1-12703 Dimensions: 40*40*4.3mm Component logarithm 127 Wire size: lead length 310mm &pm; 5mm RV standard wire single head 5mm tinned Internal resistance: 4.0~4.3 (ambient temperature 23&pm;1ﾣC, 1KHz Ac test) Maximum temperature difference: Tmax (Qc=0) above 63ﾣC Working current: Imax=3A (when starting at 15.5V) Rated voltage: DC 12V (Vmax: 15.5V) Cooling power: Qcmax 27W Assembly pressure: 85N/cm2 Working environment: temperature range -55 ﾣ C ~ 83 ﾣ C
(excessive ambient temperature drop directly affects cooling efficiency) Packaging process: around with standard 704 silicone rubber seal Storage conditions: -40 ﾣ C ~ 60 ﾣ C Note: There is a literal surface for the cooling surface, and no literal surface is the cooling surface. A heat sink or water-cooled must be installed on the heat sink surface, otherwise, it will burn out.
(Please coating thermal silica gel regardless of water cooling or air cooling)

Package included:

1 xTEC1-12703 40x40MM 12V3A Thermoelectric Cooler Peltier Refrigeration Plate
