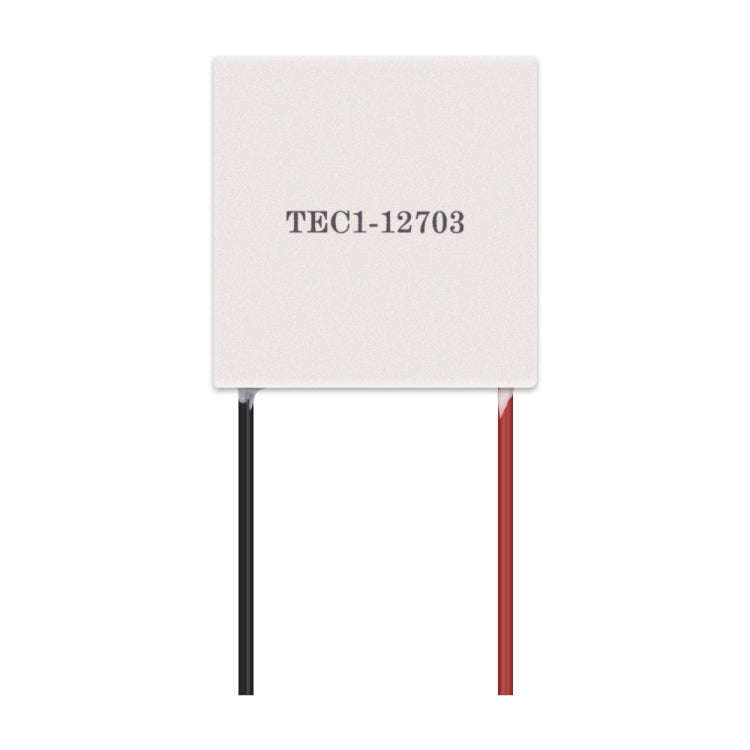

TEC1-12703 Thermoelectric Cooler Peltier Element Module
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Customer ratings:
Product code
TBD0601763901
Bob Shop ID
602466624
1. Number of component pairs: 127
2. Assembly pressure: 85N/cm2
3. Be sure to apply thermal grease when installing the radiator
4. The literal is cold side, and the non-literal is hot side
5. Packaging process: standard 704 silicone rubber seal around
6. Packaging standard: foam box packaging, storage conditions ambient temperature -10 ~ 40 degrees Celsius
7. Working environment: temperature range -5583 degrees Celsius (excessive ambient temperature will directly affect the cooling efficiency)

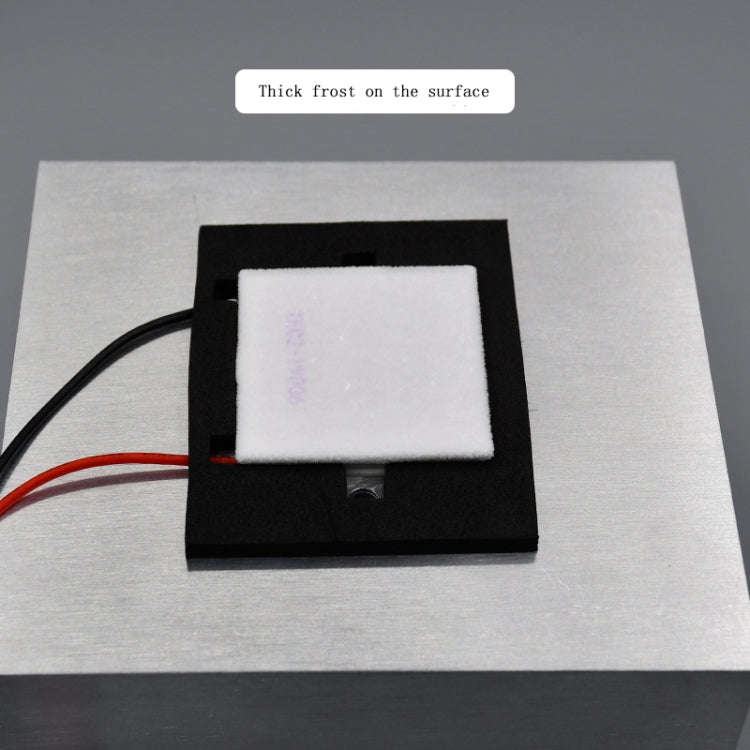

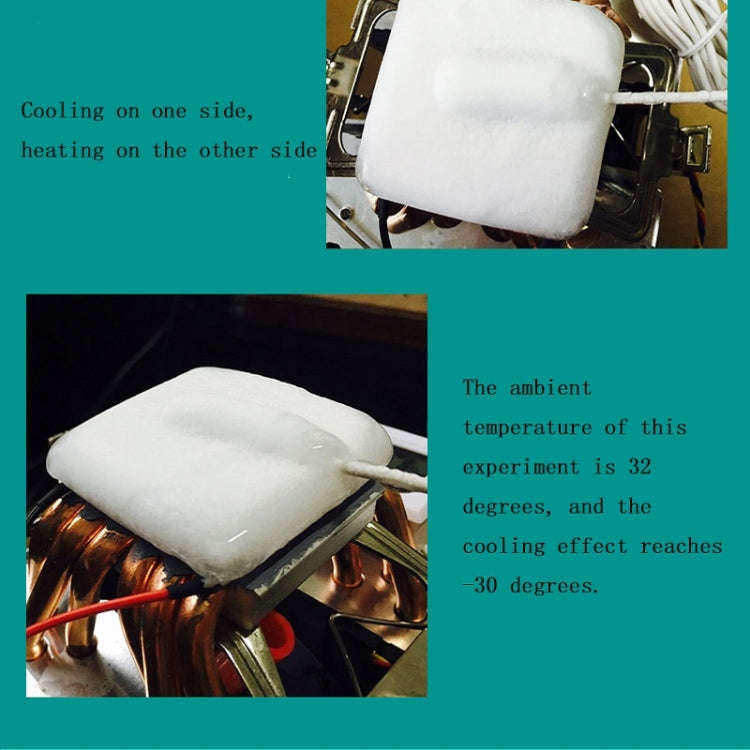

8. The working state of the cooling plate is that one side is cooling and the other side is heating, and the heating surface must be well dissipated during work. It is strictly forbidden to energize for more than 2 seconds without heat dissipation, so as to avoid overheating and burning.

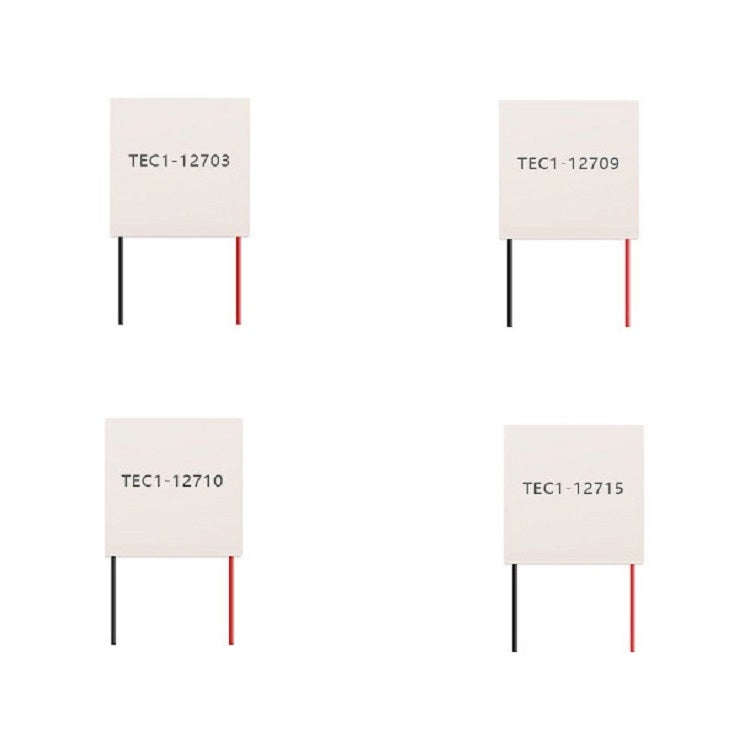

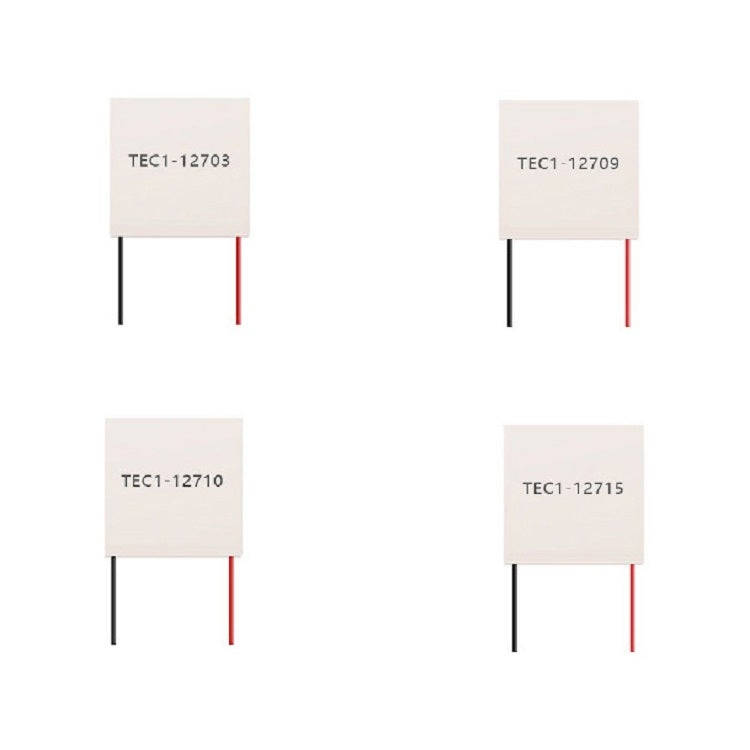

9. Dimensions: 12703: 40x40x4.0mm, 12709: 40x40x3.4mm, 12710: 40x40x3.4mm, 12715: 40x40x3 .3mm
10. Other parameters:
- 12703: Wire specification: lead length 310+/-5mm, RV standard wire, single head 5mm tin-plated, internal resistance: 4.0~4.3 ohms (ambient temperature 23+/-1 degrees Celsius, 1kHZ Ac test), working current: Imax=12 ( When starting at rated voltage), rated voltage: DC12V (Vmax: 15.5V), cooling power: Qcmax 27W

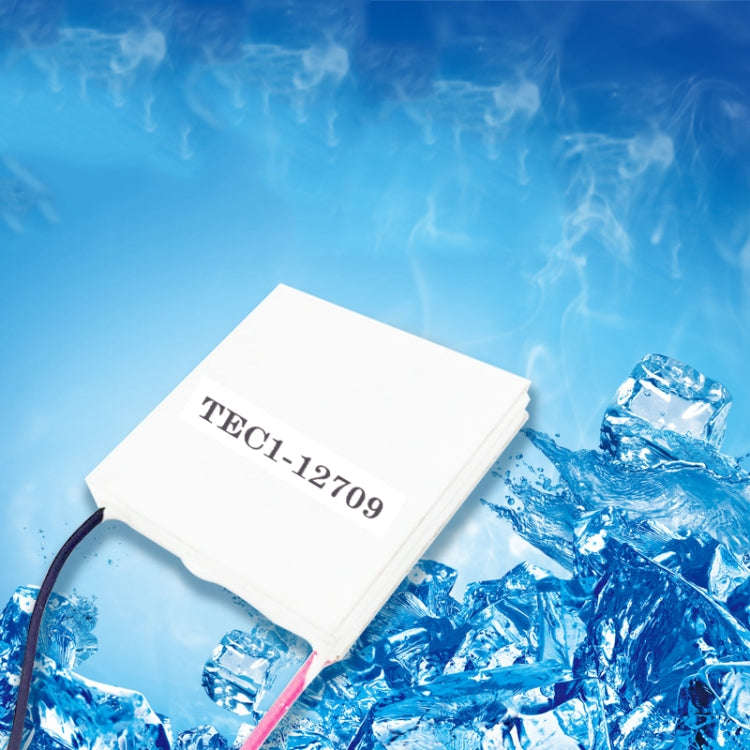

- 12709: Current: less than or equal to 9A, temperature difference: less than or equal to 68 degrees Celsius, voltage: less than or equal to 15.2V, hot end temperature: 82W

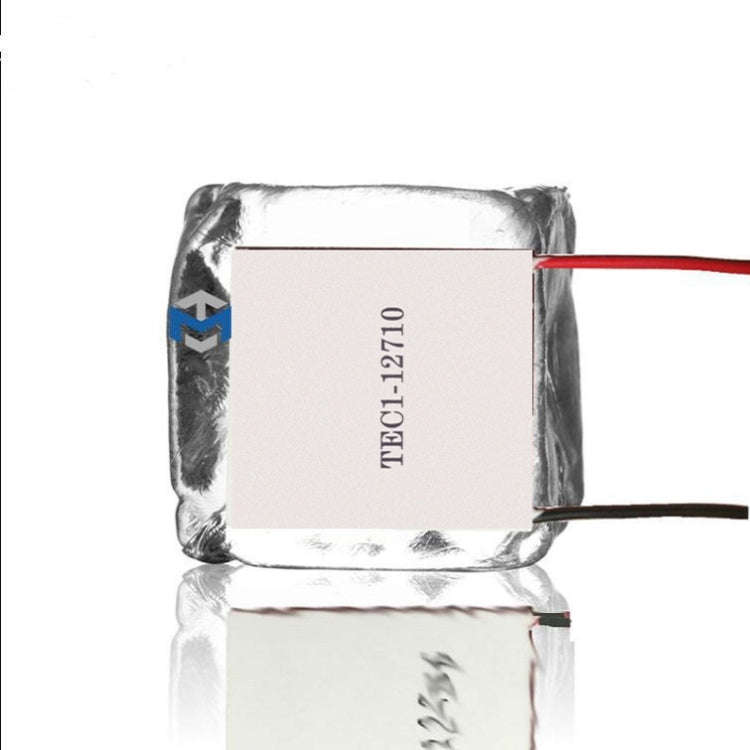

- 12710: Wire specification: lead length 300+/-5mm, RV standard wire, single head 5mm tin plated, internal resistance: 1.2~1.5 ohms (ambient temperature 23+/-1 degrees Celsius, 1kHZ Ac test), working current: Imax=10A ( 15Vmax voltage start), rated voltage: DC12V (Vmax: 15.5V), cooling power: Qcmax 92W
- 12715: Voltage: less than or equal to 15.4V, current: less than or equal to 15A, cold output: 134W
