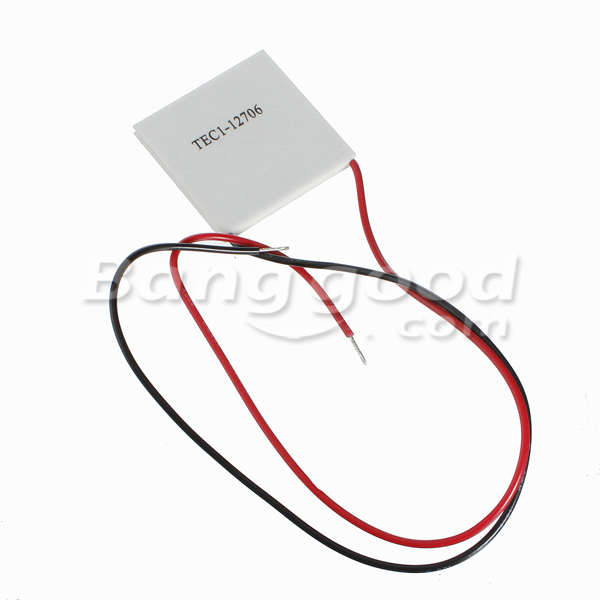

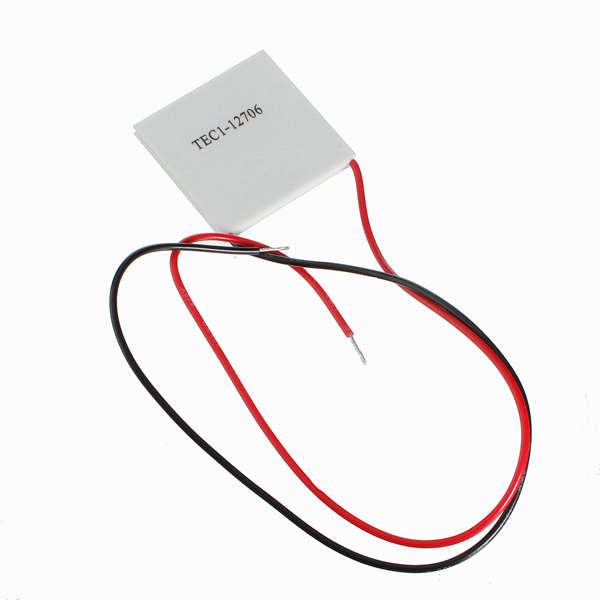

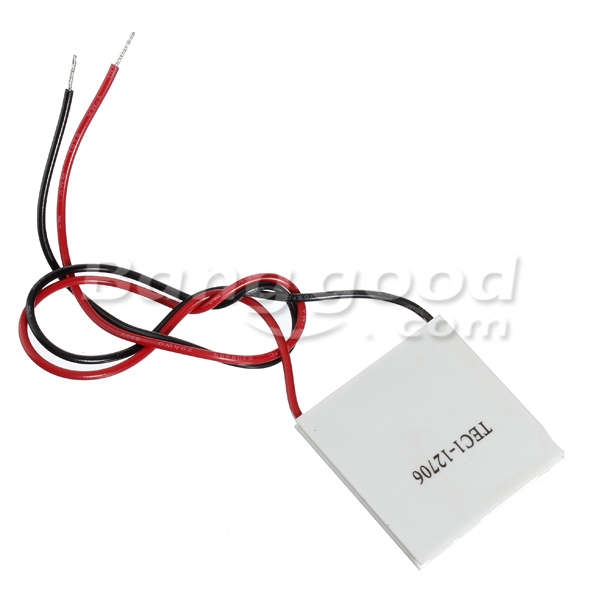

TEC1-12706 40x40mm Thermoelectric Cooler Peltier Plate Module 12V 60W

Description:
This is TEC1-12706 40x40mm thermoelectric cooler Peltier plate module 12V 60W
Get ice cold in minutes or heat to boiling by simply reversing the polarity, used for numerous applications from CPU coolers to alternate power sources, or even for your own custom car drink warmer/cooler.
Since they consist primarily of semiconductor material sandwiched between ceramic plates and have no moving parts




Feature:
Its work is characterized by side refrigeration and side fever.
Hot and cold on both sides of the temperature difference of 68 degrees
Connected to the 12-volt power supply cooling piece on both sides there will be difference in temperature, side cold side of the heat, do not long power cooler radiator, otherwise it will cause cooler internal overheating and burning.
Specification:

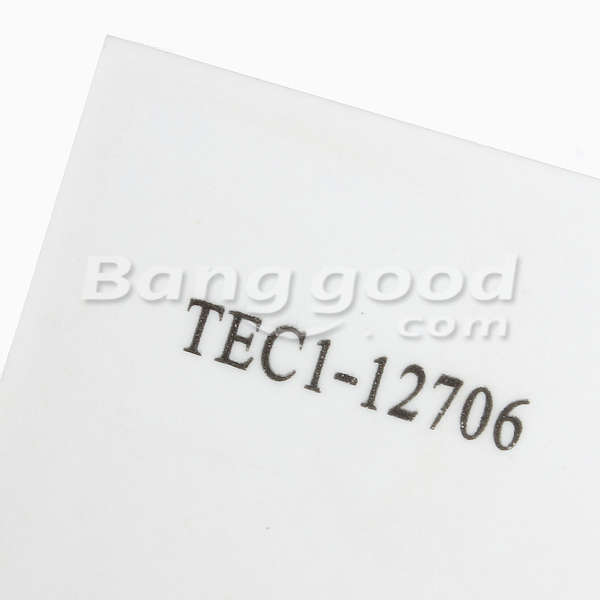

Model: TEC1-12706
Size: 40mm x 40mm
Operates from 0~15.2V and 0~6A
Operates Temperature: -30C to 70C
Max power consumption: 60W
These devices must be used in conjunction with a heat sink to avoid burned
Each device is full inspected and tested

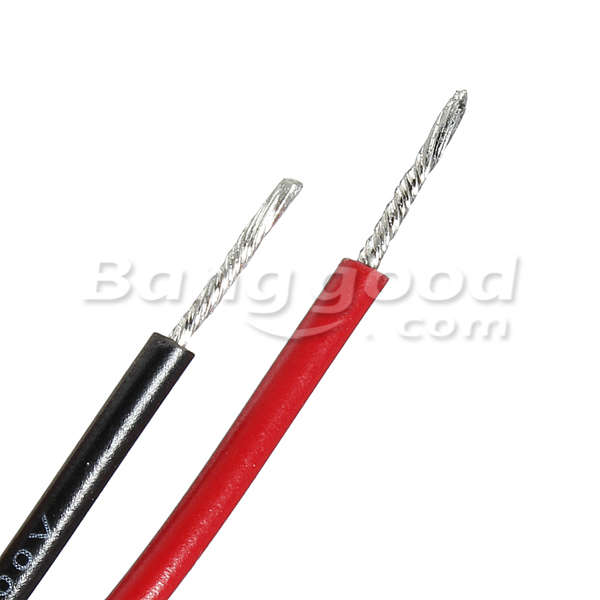

Fitted with 6-inch insulated leads
Installation:
Cooling piece is very simple to install and use. Before installation, to find a dry cell, connected to the two leads of the cooler, obviously cold you can feel at one end and the other end of fever, remember that the polarity of the lead and determine a good cooler cold and hot end. If you want to get a bigger system Ling, it is recommended that two cooling mode, with two stack up with the above, a grim absorption following a fever, the experiments prove two refrigeration effect is much better than the single-stage, the condition can choose three, of course, have a large power supply support.
Package included:
1 x cooler plate module
