Peltier cooler overview
They consist primarily of semiconductor material sandwiched between ceramic plates and have no moving parts. Hot and cold on both sides with a temperature difference of 68 degrees.
NOTE: Must be used with suitable Heatsink to avoid damage to the Unit
Peltier cooler Features
This cooling piece is very simple to install and use. Before installation, connect to 12V DC power source, you will immediately feel what side of the unit is hot and what side is cold, also note the polarity of the power leads, The cold side must be on the unit you want to cool and the hot side on the heat sink side. This unit uses 60W power at 12V so your power supply must be able to handle at least 8A.

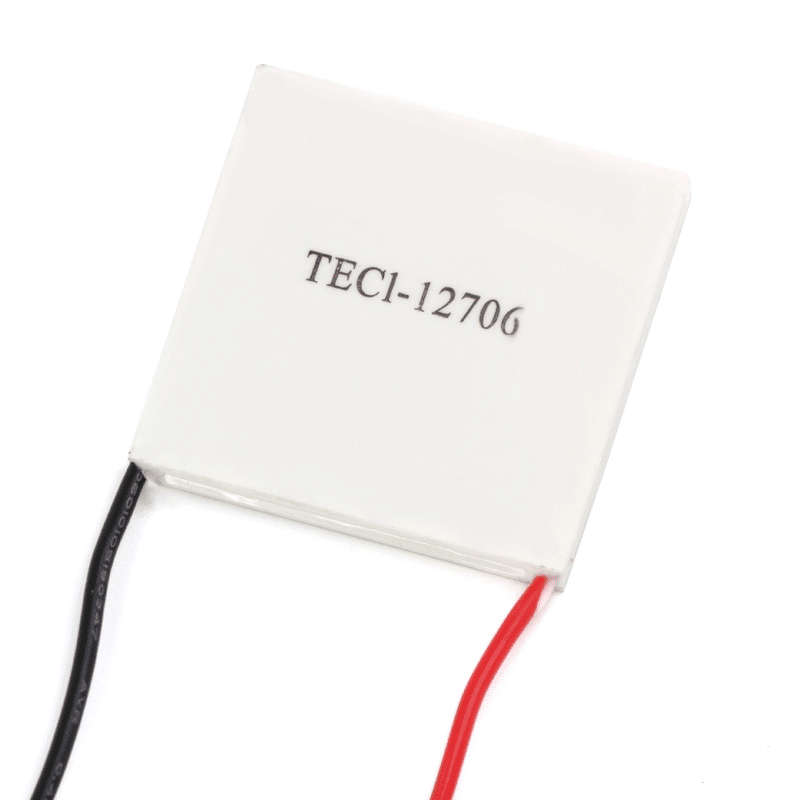

TEC1-12706 Thermoelectric Peltier Cooler Specifications
Model number: TEC1-12706 12V6A 60W
Voltage: 12V
Couples: 127
Umax (V): 15.2
Imax (A): 6.4
Tmax: 67
QM(W):60W
Resistance ( ): 1.5 ~ 1.6
Dimensions: 40x 40x 3.5(mm )
