Specifications:
Power Supply:USB 5V DCCertificationCCC
Frequency range
FM :( 87 - 108 MHz ) : Russian:64-108MHz
Japan: 76-108MHz
EU,USA : 87.5-108MHz
Attention: The frequency step of FM is 100kHz, and the fine-tuning step is 10kHz
LW: 153 - 513 kHz (9kHz step,fine-tune step 1kHz)
MW: 520 - 1710 kHz [10kHz step,1kHz fine-tuning step(for America)]
SW: 1711 - 29999 kHz (5kHz step,1kHz fine-tuning step)
Attention:When the above band is received in SSB mode,step 1kHz,fine-tune step 10Hz
Sensitivity:
FM (S/N=30db):Less than 3 uV
MW(S/N=26dB):Less than 1mV/mLW (S/N=26db) :Less than 10mV /m
SW(S/N=26dB):Less than 10mV/m
Selectivity:
FM:>60dB (±150KHz)
MW:>60dB (BW=3kHz,±9KHz)LM:>60dB (BW=3kHz,±9kHz)
SW:>60dB (BW=3kHz,±5kHz)
FM Stereo crosstalk:greater than 35 dB
Output(Distortion 10%):200mW
Dimensions:139 x 85 x 26 mm
Weight: 210g Without battery installed
Features:
Friendly human-machine interface and easy operation
Can receive FM stereo, medium wave, long wave, short wave, single sideband (SSB) communication signals
Use modern DSP digital demodulation technology to improve listening sensitivity, selectivity, signal-to-noise ratio and anti-interference ability
FM reception range 64-108MHz, suitable for global FM broadcast reception
Short wave single sideband (SSB) minimum step 10Hz, upper sideband (USB) and lower sideband (LSB) are received independently
Apply synchronous detection technology to suppress adjacent channel interference
Seven ways to select channels: convenient tuning (ETM), automatic search and browse radio frequency, automatic search and browse stored stations, manual search for station frequencies (VF), manual search for stored stations (VM), direct input of frequency numbers, direct input of Store station address number
Easy Tuning (ETM) has a radio frequency schedule function, making tuning more convenient and faster
It can store up to 650 radio frequencies manually, semi-automatically, and fully automatic (ATS), of which 100 for FM/long wave, 150 for mediumwave, and 300 for short wave
Multi-function display: It can display the working status of radiofrequency, electric field intensity, signal-to-noise ratio, battery capacity, etc.

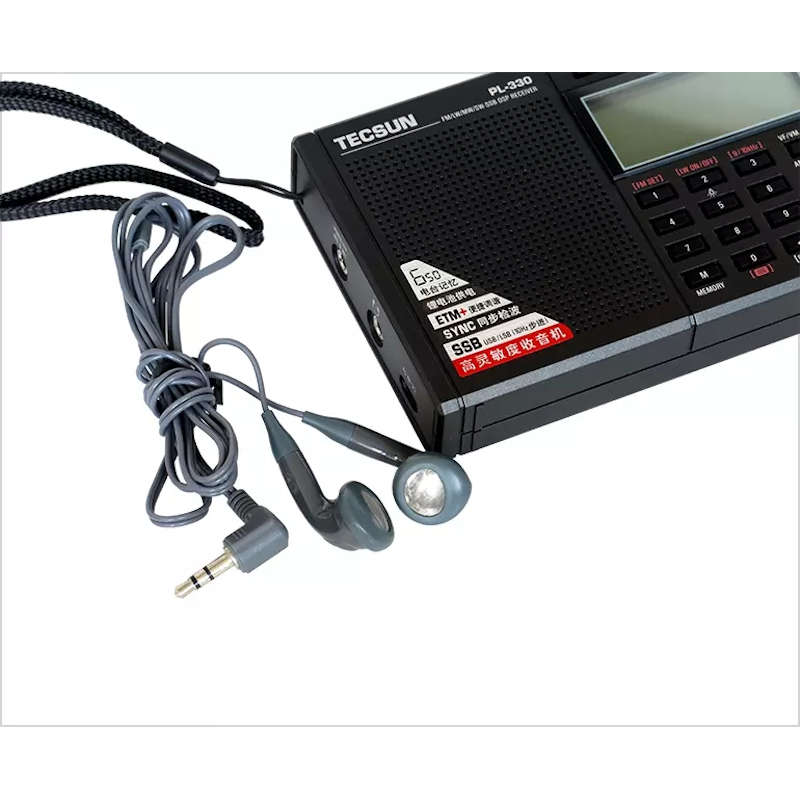

Adopt high-quality and high-sensitivity speakers, beautiful sound, use headphones to listen to FM stereo broadcasting
With broadcast timing automatic power-on function
Very user-friendly power switch function: you can set the automatic shutdown after 1-120 minutes after booting, or cancel the automatic shutdown function
With shortwave/FM external antenna jack

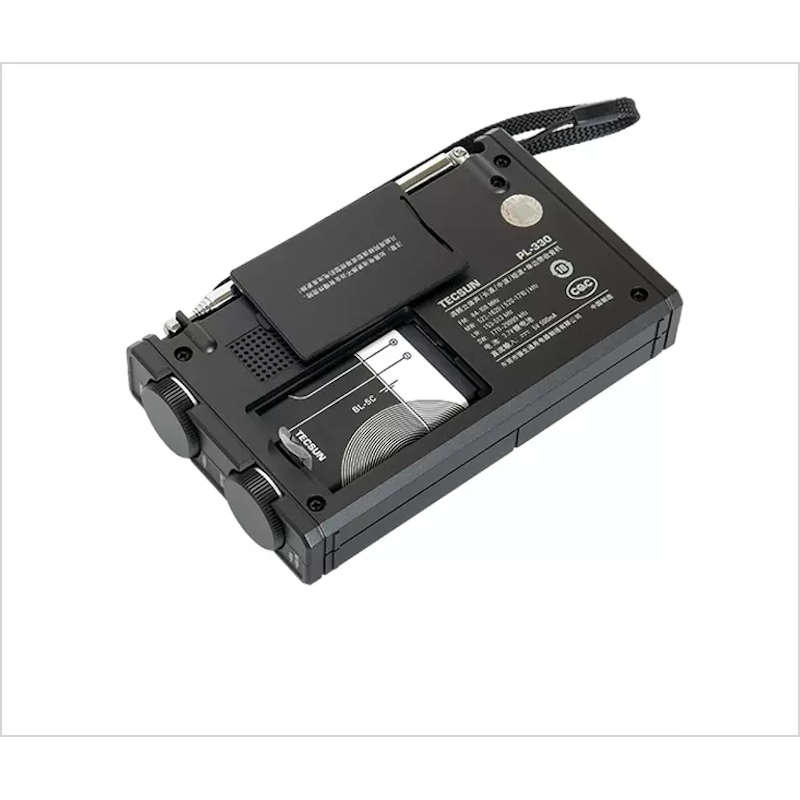

Lithium battery power supply, USB power supply, or charging can also be used
Physical size: 139 x 85 x 26 mm (WxHxT)

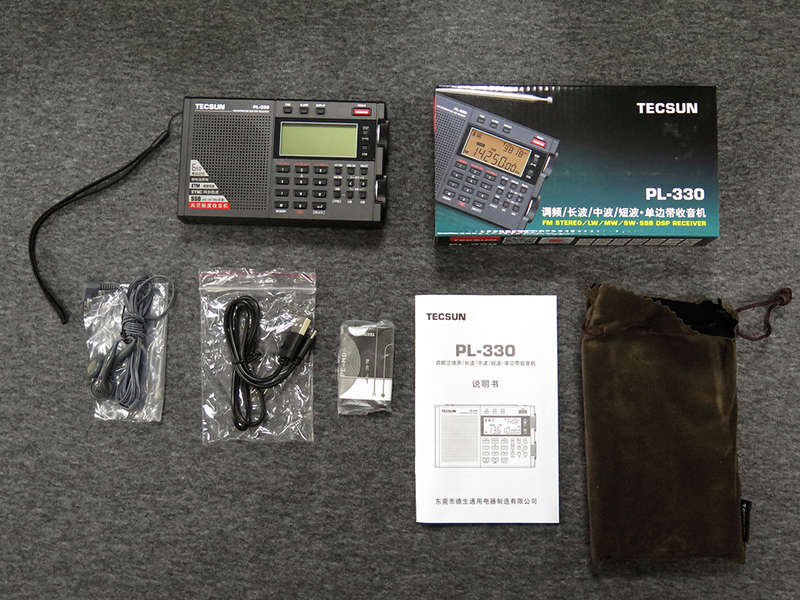

Package Included:
1 x Radio
1 x User Manual
