TECSUN PL-660 SSB AIR PLL FM-Stereo LW MW SW World Band Radio
Product Features:
(TECSUN) PL-660 SSB AIR PLL FM-stereo LW MW SW world band radio
Receiving FM stereo, MW, LW, short wave, single-sideband (SSB) and AIR PLL synthesized
Short-wave single-sideband (SSB) is divided into upper sideband (USB) and lower sideband (LSB) to receive independently, it strong to suppress the interference
With FM/ SW external antenna jack,and 3 files of high / medium / low sensitivity control switch, facilitate the remote receiver
6 kinds of way to choose the radio stations:
Manual search radio frequency
Direct digital frequency input
Manual station search stored (VM)
Directly addresses stored digital radio
Radio frequency automatic search browse
Browse the stored automatically search for radio frequency
Clear LCD display screen with backlight, easy to use even in dark night
FM receiver covers range is 76-108MHz
Can receive in China and Europe, the United States, Japan FM radio frequency
You can listen to the domestic part of the campus radio and TV sound, to enjoy FM stereo radio using headphones
Multi-function digital adjustment knob, can set the time, adjust the frequency, select the memory page and address
Two-time boot menu, boot to listen to stored radio frequency
Intelligent power switch, can automatically start power and shutdown
Multi-functions digital display for frequency, signal strength, S/N ratio, clock & alarm
Temperature (°C or °F) & battery consumption
Highly intelligent on/ off switch, allow to set the sleep timer from 1 - 120 minutes, or turn the power on/ off directly
Alarm by radio, and with the automatically alarm stopper within 1 - 90 minutes
Light & snooze function - 5 minutes, repeated three times
Digital clock function with 12/ 24 Hour Format
Volume knob with maximum 30 sound levels
FM mono & stereo (earphones only)
Key lock function

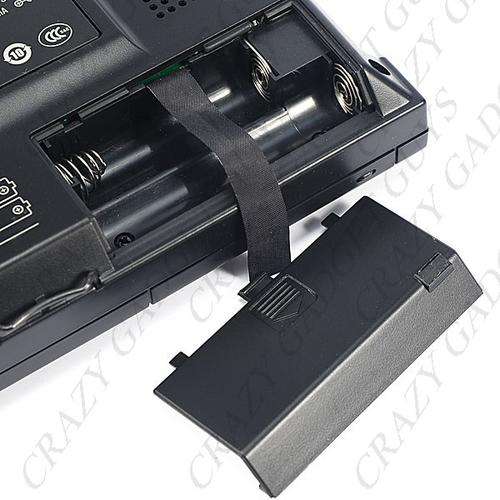

Power Supply: 4 x AA batteries (batteries NOT included) or DC-06 power adapter (adapter included)
Product Specifications:
Frequency Modulation (FM): 76-108MHz; smart step 0.01MHz/ 0.1MHz
Frequency Coverage:
Standard: 87-108MHz (for the exception of Japan, all countries other than Russia)
Germany: 87.5-108MHz (German FTZ standards, set to display 88-108MHz)
Japan: 76-108MHz (including the domestic part of the campus radio and TV audio channels 4-5)
AM (MW):
522-1620KHz; smart step 1KHz/9KHz (for Asia, Africa and Europe)
520-1710KHz; smart step 1KHz/10KHz (for North America)
Longwave (LW): 100-519KHz; smart step 1KHz/ 9KHz
Shortwave (SW): 1711-29999KHz; smart step 1KHz/ 5KHz
Air Band (AIR): 118-137MHz; smart step 1KHz/ 25KHz
The Noise Limit of Sensitivity:
Frequency Modulation (FM) (S/ N = 30dB) better than 3uV
AM (MW) (S/ N = 26dB) better than 1mV/ m
Longwave (LW) (S/ N = 26dB) better than 5mV/ m
Shortwave (SW) (S/ N = 26dB) better than 20uV
Single sideband (SSB) (S/ N = 10dB) better than 1uV
Air Band (AIR) (S/ N = 10dB) better than 5uV
SNR
Frequency Modulation (FM): Better than 60dB
The long-wave (MW / LW): Better than 45dB
Shortwave (SW): Better than 50dB
FM Stereo Separation: Better than 20dB
The output power (10% distortion)
Speaker: ≥ 450mW
Headset: ≥ 10mW
Material: High quality alloy + plastic
Colour: As shown in the picture
Size: 180 x 115 x 30 mm / 7.09 x 4.53 x 1.18 inch
Net Weight: 477 g / 16.83 oz
Note: Right plug of adapter would be sent according to your shipping country

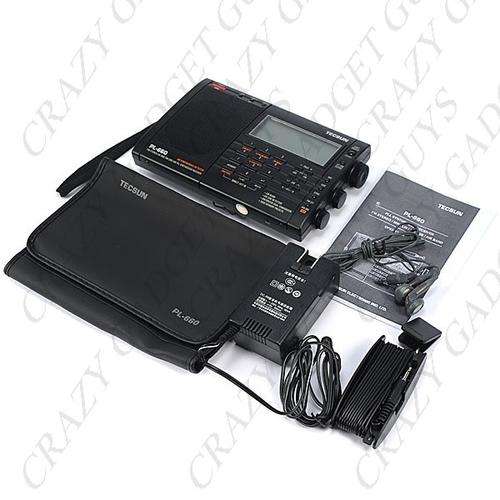

Package Contents:
1 x TECSUN PL-660 Radio
1 x Power Adaptor
1 x Stereo Earphone
1 x AN-06 External Soft Antenna
1 x Carrying Pouch
1 x User Manual
