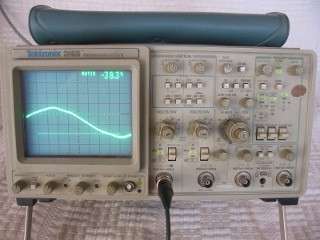

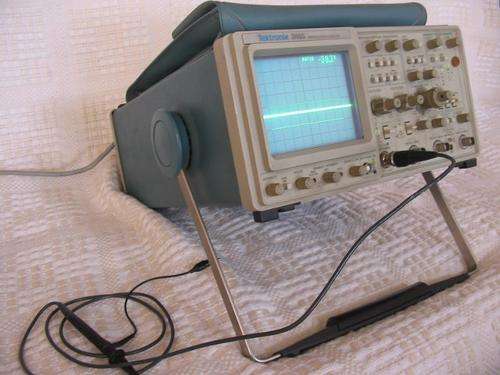

Tektronix 2465 Oscilloscope, Analog: 300MHz,4ch (Stand alone). This Tektronix 2465 Oscilloscope is in good working order, passes internal self tests and comes with one probe as pictured below. User manual also available.
Technical description
The Tektronix 2465 Oscilloscope allows fast and precise measurements. The instrument features: 300MHz bandwidth at probe tip 500 ps/div sweep rate 2 mV/div vertical sensitivity 500MHz minimum triggering bandwidth.
The Tektronix 2465 Oscilloscope is a portable 300-MHz instrument having a four channel vertical deflection system. Channel 1 and Channel 2 provide calibrated deflection factors from 2mV per division to 5V per division. For each of these channels, input impedance is selectable between two values: either 1M Ohm in parallel with 15pF, or 50 Ohm internal termination.
Input signal coupling with 1M Ohm impedance can be selected as either AC or DC. Channel 3 and Channel 4 have deflection factors of either 0.1 V or 0.5 V per division. Each of these channels has an input impedance of 1M Ohm in parallel with 15 pF, with DC input signal coupling. Trigger circuits enable stable triggering over the full bandwidth of the vertical system. The horizontal deflection system provides calibrated sweep speeds from 1.5 sec per division to 500 psec per division. Drive for the horizontal deflection system is obtained from a choice of A, B delayed, A alternated with B delayed sweeps, or CH 1 (for the X-Y display mode). The 2465 incorporates alphanumeric crt readouts of the vertical and horizontal scale factors, the trigger levels, time difference measurement values, voltage difference measurement values, and certain auxiliary information.
Performance Characteristics 2465| Form Factor | Benchtop |
| Bandwidth | 300 MHz |
| Rise time | 1.17 ns |
| Number of Channels | 4 ch |
| Min. Vertical Sensitivity | 2 mV/div |
| Maximum Vertical Sensitivity | 5 V/div |
| Vertical(or Deflection Factor) Accuracy | 2 % |
| Input Coupling | AC,DC,GND |
| Input Impedance | 1 MOhm |
| Input Impedance (alternate) | 50 Ohm |
| Maximum Input Voltage | 400 V(dc+p |
| Maximum Input#2 (for Impedance #2) | 5 Vrms |
| Main time base - lowest | 5 ns/div |
| Main time base - highest | 500 ms/div |
| B Sweep Time Base (low) | 5 ns/div |
| B Sweep Time Base (high) | 50 ms/div |
| Time base Magnification factor (X?) | x10 |
| Timebase accuracy | 0.7 % |
| Trigger Source | External,Internal |
| Display Type | Color CRT |
| Display Size | 13 cm |
