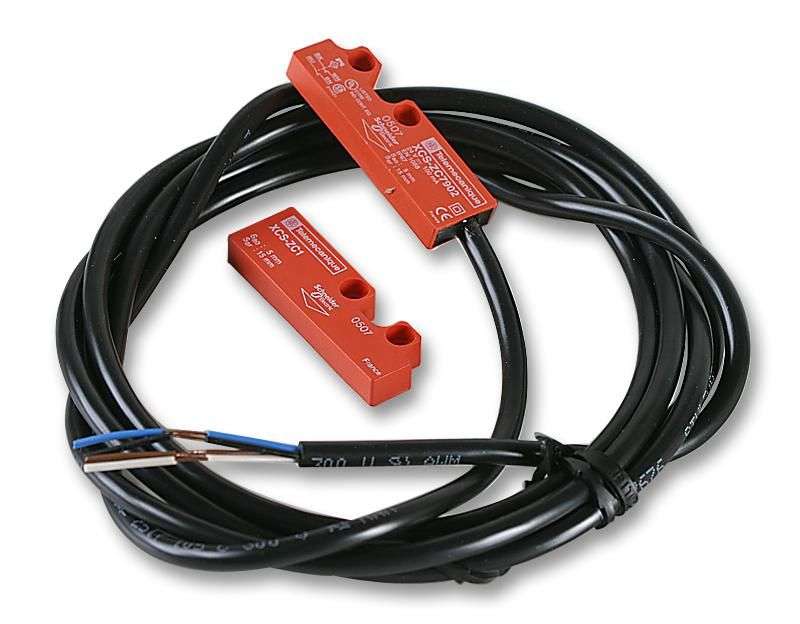

Telemecanique Sensors (XCSDMC7902) Safety Interlock Switch, Magnetic

Safety Interlock Switch, Magnetic, XCSDMC, DPST-NC, Wire LeadedProduct InformationProduct Range: XCSDMCContact Configuration: DPST-NCSwitch Terminals: Wire LeadedContact Voltage AC Max: -Contact Current AC Max: -IP Rating: -Contact Voltage DC Max: 24VContact Current DC Max: 550mAProduct OverviewThe XCSDMC7902 is a double-pole double-throw (DPDT) Safety Interlock Switch withplastic body and thermoplastic PBT enclosure. This coded magnetic switchfeatures 2NC staggered rhodium contacts and PVC pre-cabled electricalconnection. This XCSDMC series compact rectangular interlock switch is suitablefor use with the Preventa safety detection range products. It meets the EN/IEC60204-1, EN/IEC 60947-5-1, EN/ISO 12100, UL 508, CSA C22.2 No 14 standards.10R Resistance across terminals1200000 cycles Electrical durability1000MR Insulation resistanceIP67 and IP66 Protection rating-25 to 85°C Ambient air temperature range for operationApplicationsIndustrial, Robotics, Automotive
