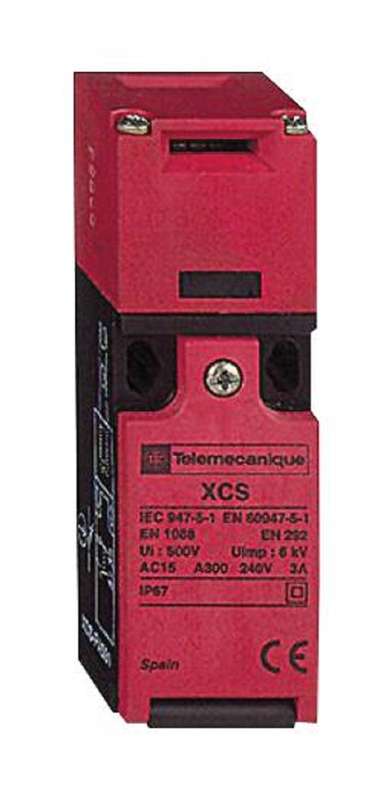

Telemecanique Sensors (XCSPA591) Safety Interlock Switch, 120 V, 6 A

Safety Interlock Switch, SPST-NO, SPST-NC, Screw, 120 V, 6 A, IP67Product InformationProduct Range: -Contact Configuration: SPST-NO, SPST-NCSwitch Terminals: ScrewContact Voltage AC Max: 120VContact Current AC Max: 6AIP Rating: IP67Contact Voltage DC Max: 125VContact Current DC Max: 550mAProduct OverviewThe XCSPA591 is a single-pole single-throw (SPST) 1NO-1NC Safety Switch with keyoperated turret PA (polyamide) head and slow-break, break before make snapaction contacts. This compact XCSPA series Preventa safety detection rangeplastic (polyamide) switch features 1 entry tapped PG 11 cable entry.Green premium productWithout locking of actuatorDouble insulated15N Positive opening minimum force0.01m/s Minimum actuation speed0.5m/s Maximum actuation speedClass II conforming to EN/IEC 60536 protection against electric shockIP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1 protection ratingTC Protective treatment=1000000 cycles Mechanical durabilityApplicationsRobotics, Industrial, Automotive
