Wired Auto-dialer Burglar Security House Alarm System w/ microphone and speaker
Circulatory dialing four telephone, cell phone, or pager numbers, and each phone number could be up to 16 digits. Easy programming, parameters and data will be saved and will not lost during power down Alarm report dial could be triggered by normally-open relay, normally-closed relay, or 12V DC power supply. Alarm reporting will include a 20-second recorded voice message and this recorded message could be updated
Working Voltage: DC 11V TO 15V
Static Current: 20mA (MAX)
Dial Mode: Audio frequency/pulse, jumper selection J1
Alarm Mode: N.C., N.O. and voltage signal jumper selection J2 and J3
Recording Duration: 20 seconds, telephone numbers and audio information remain intact even if the power is off.
Telephone Number Storage: 4 groups of telephones and each group is able to save as long as 16 digits.
Second-level Private Password: 0-6 digits Private Password, and the first three digits can be used to stop alarms and the whole (six digits) can be used to modify the settings.
Default Password: 911

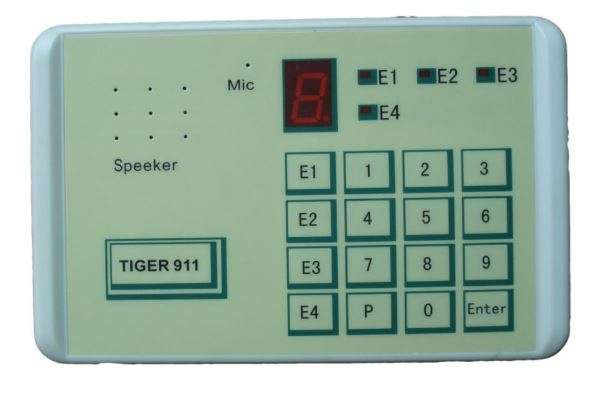

1. Trumpet/speaker
2. Microphone
3. 7- Segment Display: When putting in the number to be saved, it will show up simultaneously
4. E4 indicator: When setting up the E4 number, it will be on.
5. E1 indicator: When setting up the E1 number, it will be on.
6. E2 indicator: When setting up the E2 number, it will be on.
7. E3 indicator: When setting up the E3 number, it will be on.
If the password is being configured, the E1, E2, E3 and E4 indicators will be on together
8. Connect with the telephone plug
9. 10 Connect with the DC12V power supply and the orange wire (or red) is for the positive pole and the brown wire (or black) is for the negative pole.
11.12 Signal trigger wire, When connected to the N.C. or N.O., the polarity of electrodes can be neglected. But when dealing with the DC12V, the blue wire (or yellow) is for the positive pole. The green wire is for the negative pole.
13 P button can be used as follows:
Store 6 digits as password;
When using a voice automatic feedback system main switcher, it can be used to set up the "Hold-on/pause" Duration. Press once, you get two seconds, press twice pause is four seconds etc. With such a function, the call can be reached to the extension automatically.
14 Connect to the series telephones
