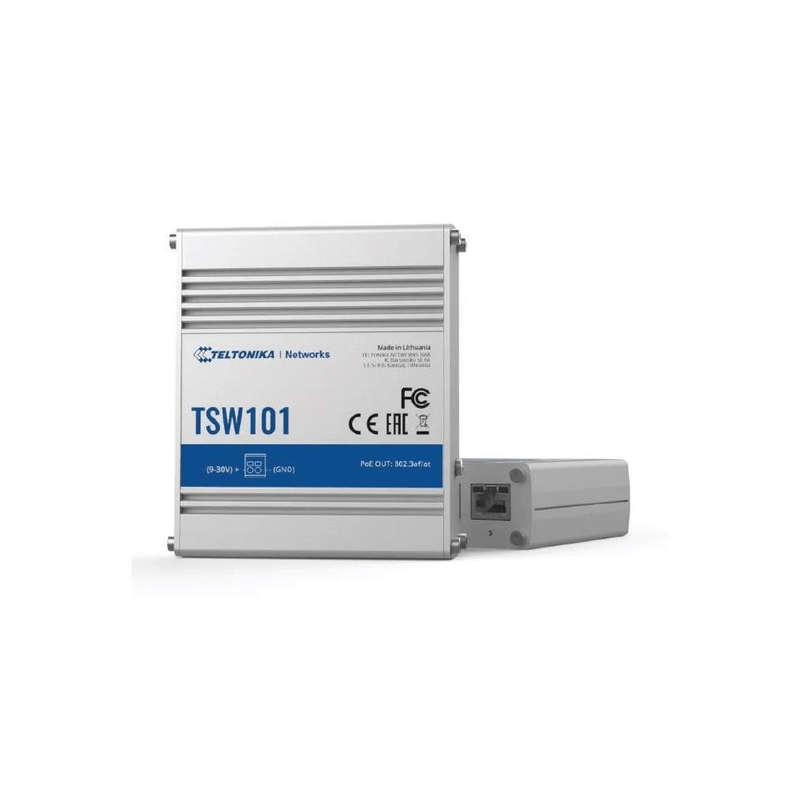

Teltonika 5-port Unmanaged L2 Gigabit Switch

TSW101 is Teltonika Networks' first automotive-dedicated unmanaged switch.Equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at PoE+ standards.A wide range of supported power supply voltages (9-30 VDC), and a compact size allow it to slot into many automotive applications.Classified as a power source equipment (PSE), this device enables power supply centralization - providing up to 30 watts per single port and maximum output power of 60 watts, 10/100/1000 Mbps Ethernet ports for streamlined, high-bandwidth solutions. Ideal for providing both: in-vehicle power and an Ethernet data connection simultaneously.

Specifications:

INTERFACES

• Ethernet: 5 x RJ45 ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

POE

• PoE ports: Port 1- 4
• PoE standards: 802.3af and 802.3at
• PoE Max Power per Port (at PSE): 30 W
• Total PoE Power Budget (at PSE): 60 W
• Maximum Ethernet cable length: 100 m

POWER

• Connector: 2-pin industrial DC power socket
• Input voltage range: 9-30 VDC
• Input voltage range for PoE: 9-30 VDC
• Power consumption: Idle: 0.64 W / Max: 2.31 W / PoE Max: 60 W
