Teltonika DAP140 Industrial Wireless Access Point

The DAP140 is a Teltonika industrial wireless access point with passive PoE-in, designed to enhance Wi-Fi coverage and performance in industrial environments. Featuring Wi-Fi 4 with Wi-Fi mesh and Fast Roaming, as well as dual RJ45 ports and support of up to 50 simultaneous connections, this wireless access point is integral in maintaining reliable connectivity. An integrated DIN rail bracket, 3-pin power connector, and industrial-grade aluminium housing make the DAP140 the ideal access point for industrial applications.

Features

• WIRELESS AP CAPABILITIES: Seamless Wi-Fi 4 with Wi-Fi mesh & Fast Roaming
• ETHERNET: 2x 10/100 RJ45
• POWER INPUT: 1x 3-pin power connector tailored for industrial use
• INTEGRATED DIN RAIL BRACKET: Easy mounting for plug-and-play deployment

Technical Specification

Product: Teltonika DAP140 Industrial Wireless Access Point

CPU: Mediatek, 580 MHz, MIPS 24KEc

RAM: 128 MB, DDR2

FLASH storage: 16 MB serial NOR flash

Ethernet Ports

• 2x 10/100 Mbps LAN ports
• Compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards
• Supports auto MDI/MDIX crossover

Wireless mode: IEEE 802.11b/g/n (Wi-Fi 4), Access Point (AP), Client (STA), Mesh (802.11s), Multi AP

Antennas: 1x RP-SMA for Wi-Fi

Power

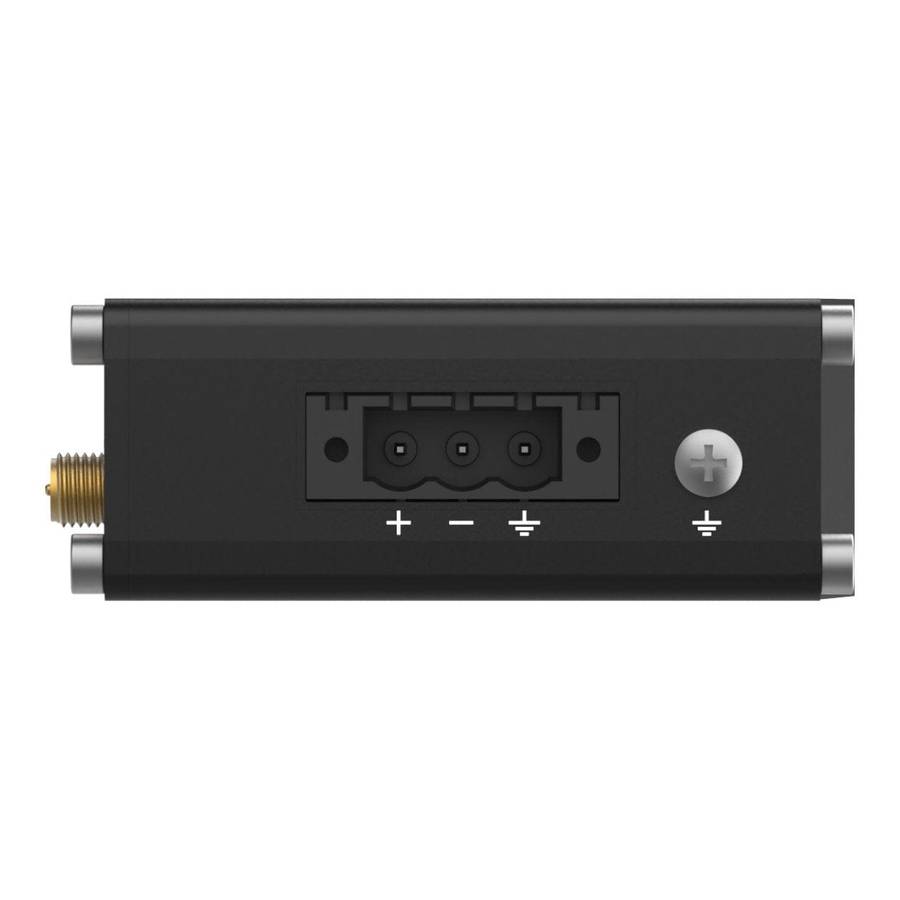

• Connector: 3-pos plugable terminal block
• Input voltage range: 9-30 VDC, reverse polarity protection, surge protection >31 VDC 10us max
• PoE (passive): Passive PoE over spare pairs. Possibility to power up through LAN2 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
• Power consumption: Idle: 1 W / Max: 2 W
• Other: 1x Grounding screw

Operating system: RutOS (OpenWrt based Linux OS)

Weight: 142.3 g

Mounting options: Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)
