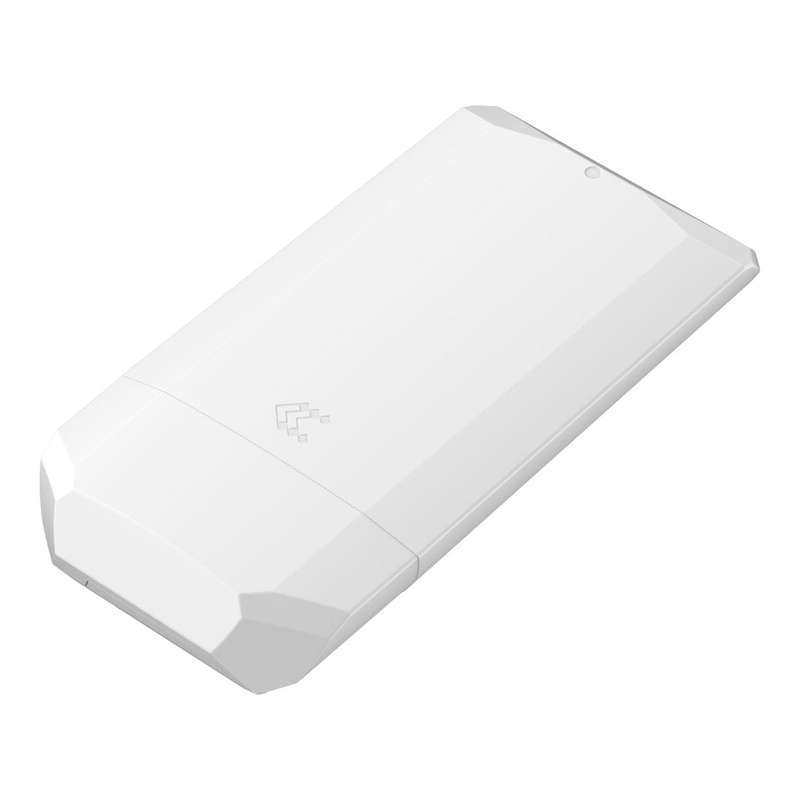

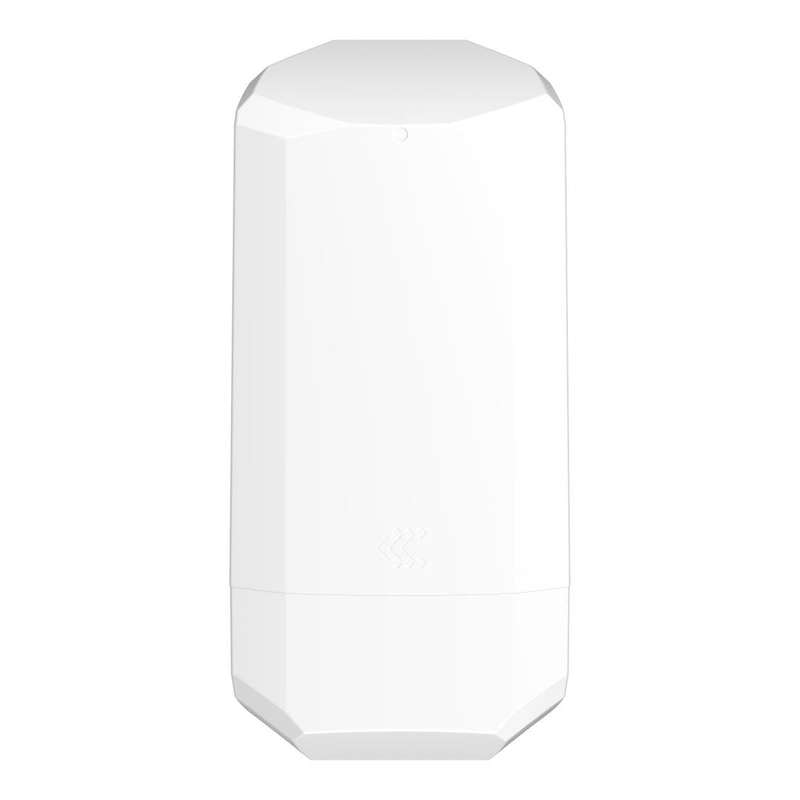

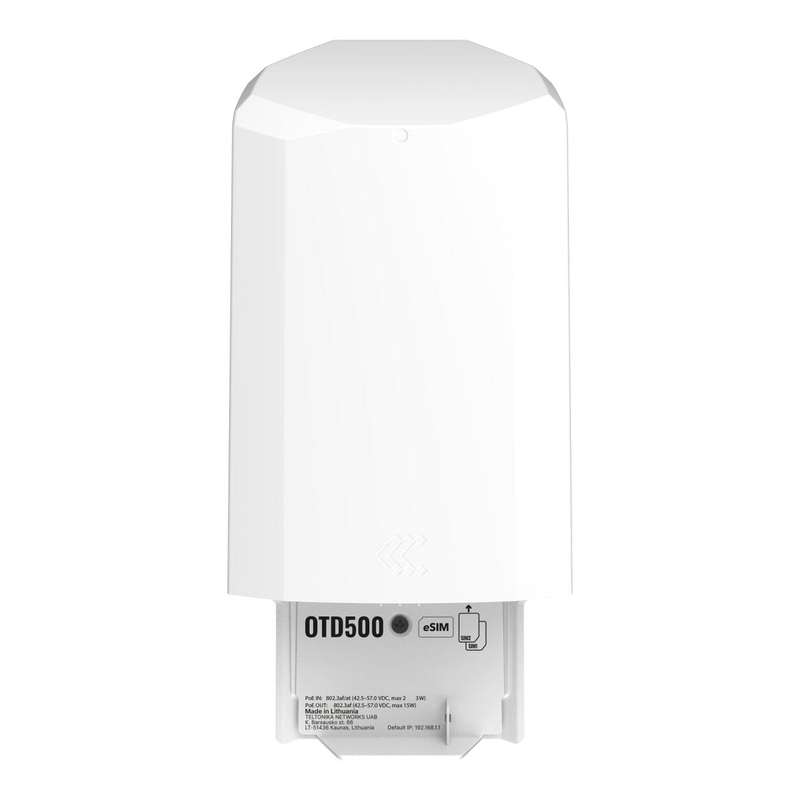

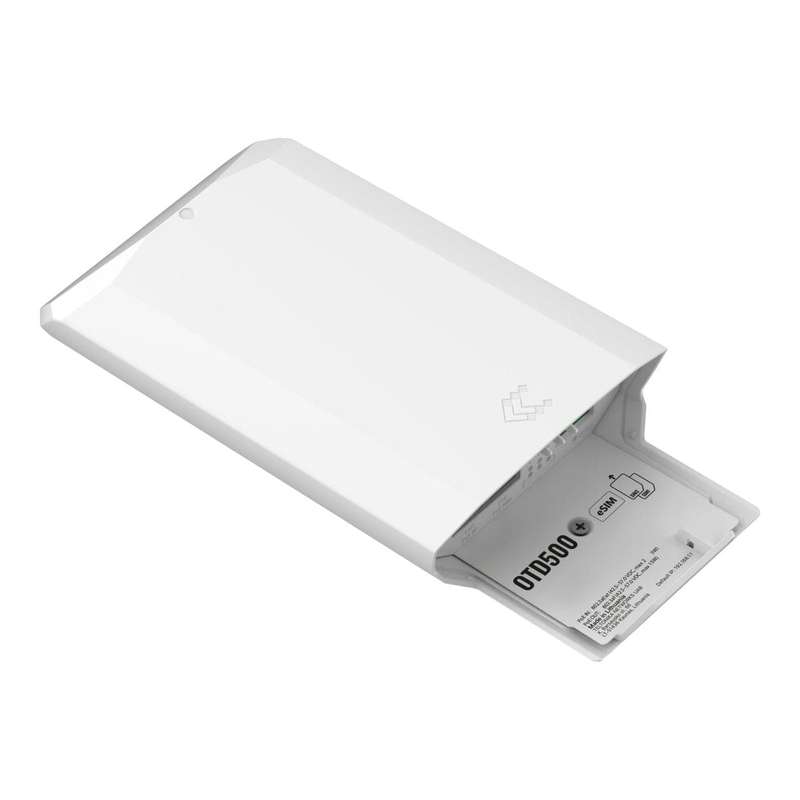

Teltonika OTD500 5G Outdoor Router
Features
- IP55: IP55 durability for outdoor deployment
- POE-IN/OUT: 1x PoE-in and 1x PoE-out port
- CONNECTIVITY: 5G, 4G Cat 19
- eSIM: Seamless connectivity with eSIM SGP.22
Advanced 5G Router for Your Business and Home
The Teltonika OTD500 is a state-of-the-art 5G router that delivers incredible performance, stability and functionality. With support for LTE Cat 19, eSIM, PoE in/out, and IP55 immunity, this router is perfect for both demanding business environments and home applications. Whether you're looking for a stable Internet connection for IoT or an advanced monitoring and remote management solution, the Teltonika OTD500 will meet your needs.
Latest 5G and LTE Cat 19 technology
The Teltonika OTD500 supports 5G Sub-6Ghz SA/NSA, which means ultra-fast download speeds of up to 3.4 Gbps and upload speeds of up to 900 Mbps. With LTE Cat 19 compatibility, the router offers excellent performance on 4G LTE networks as well, reaching speeds of up to 1.6 Gbps on downloads. The use of 4x4 MIMO technology guarantees a stable connection even in crowded networks.
PoE in/out and IP55 protection
Powering peripherals has never been easier. The Teltonika OTD500 offers PoE in to power the router via Ethernet cable and PoE out to power other devices such as IP cameras. With an IP55 rating, the router is resistant to harsh weather conditions, making it ideal for outdoor applications.
Remote management and security at the highest level
The router works with Teltonika RMS (Remote Management System), allowing full control from anywhere in the world. With advanced features such as firewall, VPN, and protection against DDoS attacks, your network remains secure and stable. Integrated monitoring tools, such as traffic statistics and signal graphs, give you a complete view of your network's performance.
Versatility and convenience with dual SIM and eSIM
The router supports dual SIM, allowing automatic switching between cards in case of weak signal, roaming or data overage. The built-in eSIM allows management of up to 7 profiles without the need for physical SIM cards. This makes the device ideal for mobile and IoT applications where security and connection availability are key.
Technical Specification
Product: Teltonika OTD500 5G Outdoor Router
CPU: MediaTek, Dual-core, 880 MHz, MIPS1004Kc
RAM: 256 MB, DDR3
FLASH storage: 16 MB serial NOR flash, 256 MB serial NAND flash
Ethernet ports: 2x 10/100/1000 Mbps (can be configured as WAN), supports auto MDI/MDIX crossover
Standards: Compliance with IEEE 802.3, IEEE 802.3u, 802.3az
PoE
- PoE in port: 1x PoE In
- PoE in standard: 802.3af/at
- PoE out port: 1x PoE Out
- PoE out standard: 802.3af Alternative B
- PoE Max Power per Port (at PSE): 15 W Max (power supply unit dependent)
Power
- Connector: RJ45 Socket
- Input voltage range: 42.5—57.0 VDC, reverse polarity protection, voltage surge/transient protection
- Input voltage range for PoE: 42.5—57.0 VDC, reverse polarity protection, voltage surge/transient protection
- Power consumption: Idle: 2.5 W / Max: 9 W / PoE Max 24 W
- Power adapter: Not included
Other Interfaces
- SIM: 2x SIM slots (Mini SIM — 2FF), 1.8 V/3 V
- eSIM: up to 7 eSIM profiles (Consumer type eSIM)
- Antennas: 4x internal antennas
- Antennas specifications: 4x 617 - 960 / 1695 - 2690 / 3300 - 4200 / 4200 - 5000MHz, 50 , VSWR 3.5, gain 4.9 dBi, omnidirectional
Mobile module
- 5G Sub-6Ghz SA/NSA 2.4/3.4Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2)
- 4G LTE— LTE Cat 19 1.6Gbps DL/200Mbps UL
- 3G up to 42 Mbps DL/5.76Mbps UL
Operating system: RutOS (OpenWrt based Linux OS)
Weight: 385 g
