Teltonika PR1ICA70 SMA 28 dBi Omni-directional Antenna

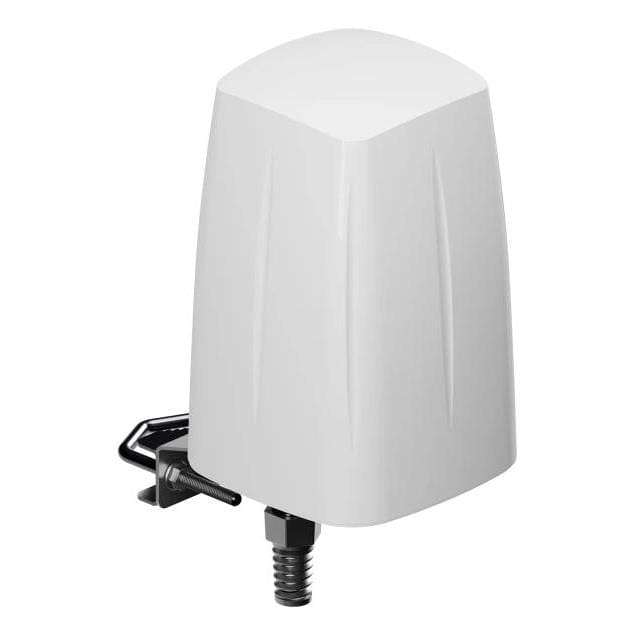

Teltonika PR1ICA70 Outdoor LTE/5G/WI-FI/GPS Antenna is designed for reliable signal coverage from every direction for RUTX50 and RUTM50 routers. This antenna consists of 6x RG316, 1x RG174 cable and wall, ceiling, and mast mounting methods. The PR1ICA70 antenna is water and dust-resistant for ultimate outdoor reliability. This antenna weighs 1500g and is IP67-rated. The PR1ICA70 antenna operates from -40°C to 75°C temperature range.

Features

5G Antenna:

• Frequency range:
  • 617MHz to 960MHz, 1700MHz to 2700MHz, and 3300MHz to 4300MHz
• Vertical polarisation
• Omnidirectional radiation pattern
• 4.5dBi maximum gain
• <2.50 V.S.W.R
• Connector type and count:
  • 4x SMA male

WI-FI Antenna:

• 2400MHz to 2500MHz and 4700MHz to 6000MHz frequency range
• Vertical polarisation
• Omnidirectional radiation pattern
• 7.5dBi maximum gain
• <2 V.S.W.R
• Connector type and count:
  • 2x RP-SMA male

GNSS Antenna:

• 1560MHz to 1610MHz frequency range
• RHCP polarisation
• 28dBi gain
• <2 V.S.W.R
• Connector type and count:
  • 1x SMA male
• 2.5mA to 6.5mA current consumption range
• 2.5V_DC to 6.5 V_DC supply voltage range
• 6x RG316, 1x RG174 cable
• 50 impedance
• Wall, ceiling, and mast mounting methods
• 1500g weight
• IP67-rated
• RoHS compliant

Specifications:

• Antenna gain level (max): 28 dBi
• Frequency band: 0.617 - 4.2 GHz
• Impedance: 50 O
• Antenna type: Omni-directional antenna
• Antenna connector type: SMA
• Connector gender: Male
• Compliance certificates: RoHS
• Width: 160 mm, Depth: 189 mm, Height: 347 mm
