Brand New & Sealed with Manufacturer Warranty

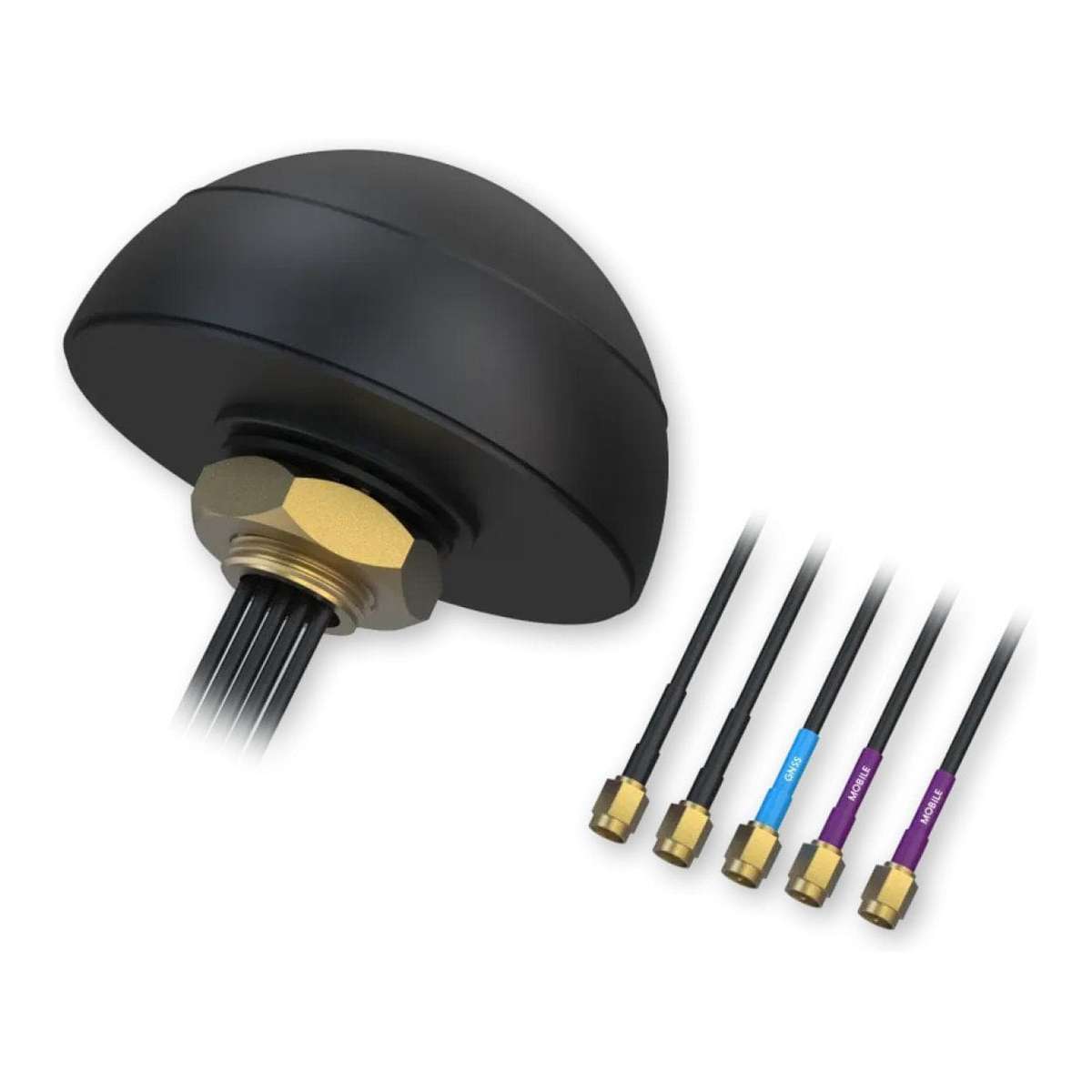

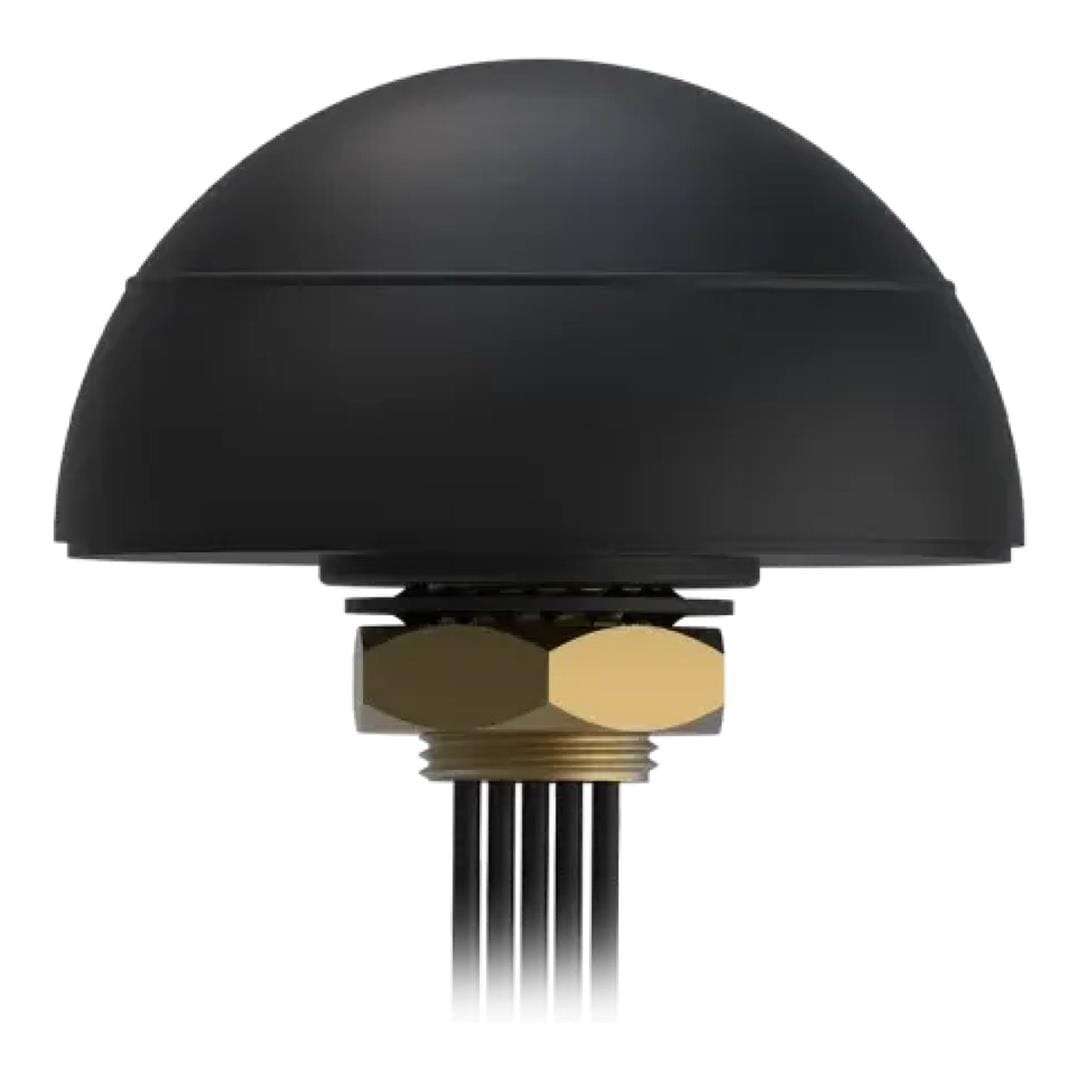

Teltonika PR1KCO28 Combo MIMO LTE/GNSS/Wi-Fi Roof SMA Antenna
Teltonika Combo LTE/ GPS/ Wi-Fi antenna
The MIMO Combo antenna consists of 5 integrated antennas: 2 LTE antennas, 2 Wi-Fi antennas and a GPS antenna. It is designed to be mounted on vehicle roofs.
Technical Specifications:
GNSS Antenna Frequency Range: 1575.42 — 1610 MHz
GNSS Antenna Polarization: RHCP
GNSS Antenna LNA Gain: 28 ± 2 dB
GNSS Antenna LNA Noise Figure: 1.5 dB
GNSS Antenna V.S.W.R Impedance: 50
GNSS Antenna Supply Voltage: 3 — 5 VDC
GNSS Antenna Current Consumption: < 15 mA
GNSS Antenna Connector Type and Count: SMA Male
LTE MIMO Antenna Frequency Range: 698 — 960, 1710 — 2690 MHz
LTE MIMO Antenna Polarization: Linear
LTE MIMO Antenna Gain: 3.0 dBi
LTE MIMO Antenna V.S.W.R: < 3.0
LTE MIMO Antenna Impedance: 50
LTE MIMO Antenna Connector Type and Count: 2x SMA Male
Wi-Fi Antenna Frequency Range: 2400 — 2483.5, 4900 — 5825 MHz
Wi-Fi Antenna Polarization: Linear
Wi-Fi Antenna Gain: 2.0 dBi
Wi-Fi Antenna V.S.W.R: < 2.5
Wi-Fi Antenna Impedance: 50
Wi-Fi Antenna Connector Type and Count: 2x RP-SMA Male
Mounting Method: Screw
Radome Ingress Protection Rating: IP65 (excluding cable outlet)
Radome Material: ABS
Housing Dimensions: Ø110 x 55 mm

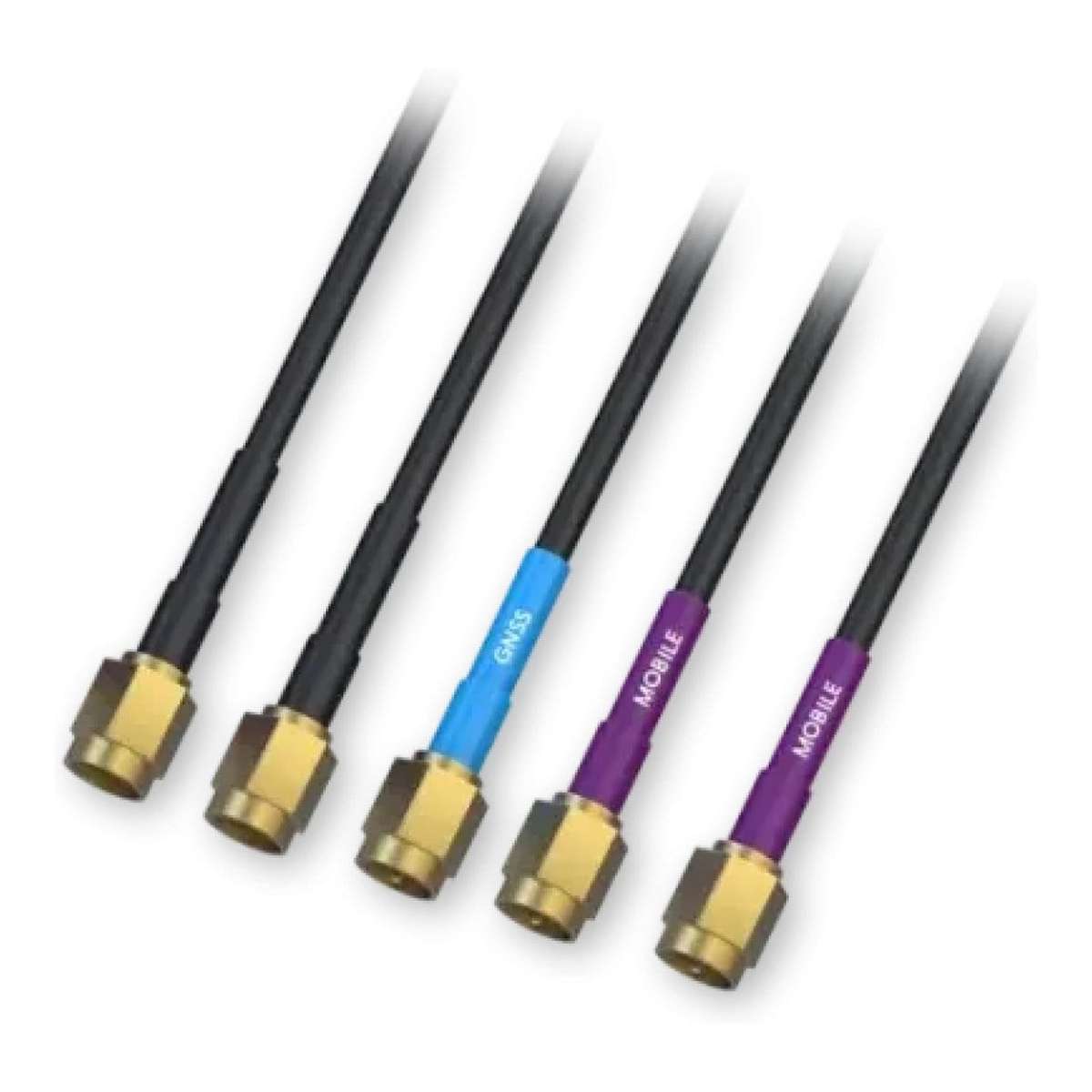

Cable: 5x RG174, 3000 mm
Operating Temperature: -40 ~ +85 °C
Weight: 535 ± 10 g
UV Resistance: Yes
RoHS Compliant: Yes
