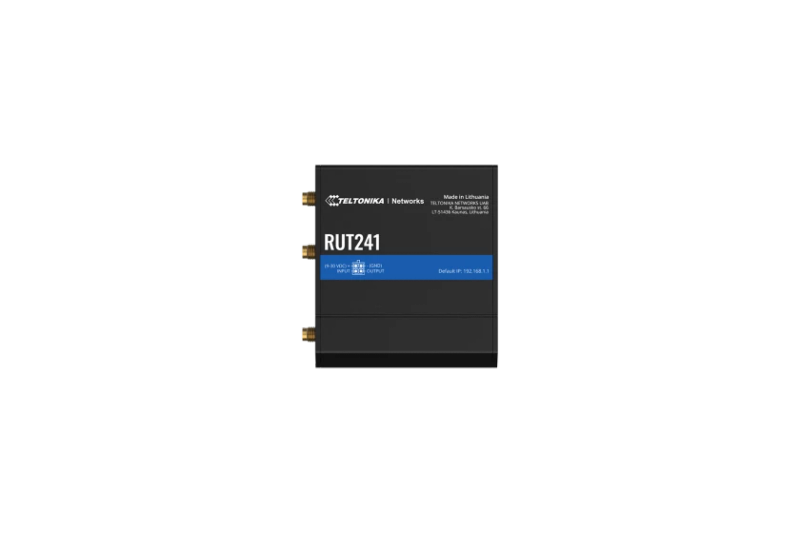

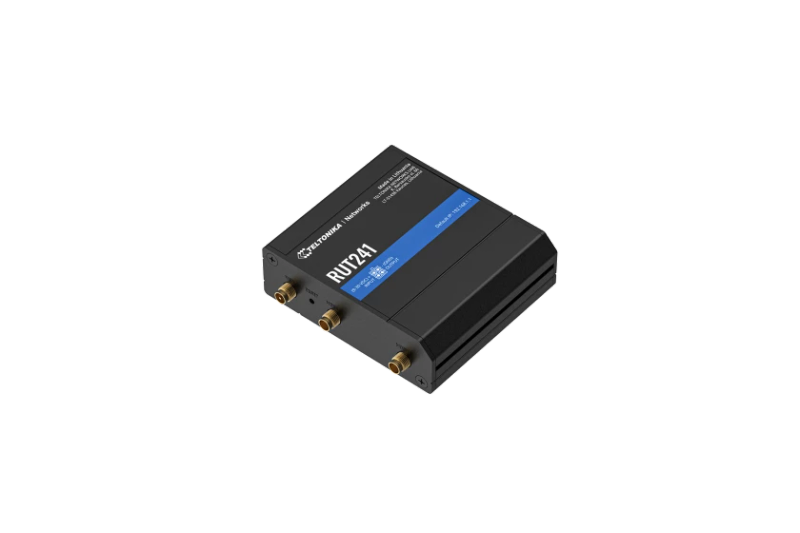

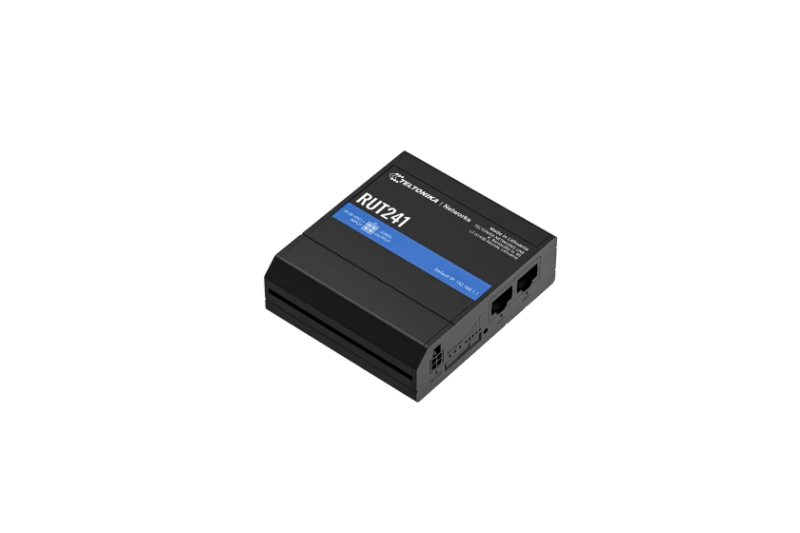

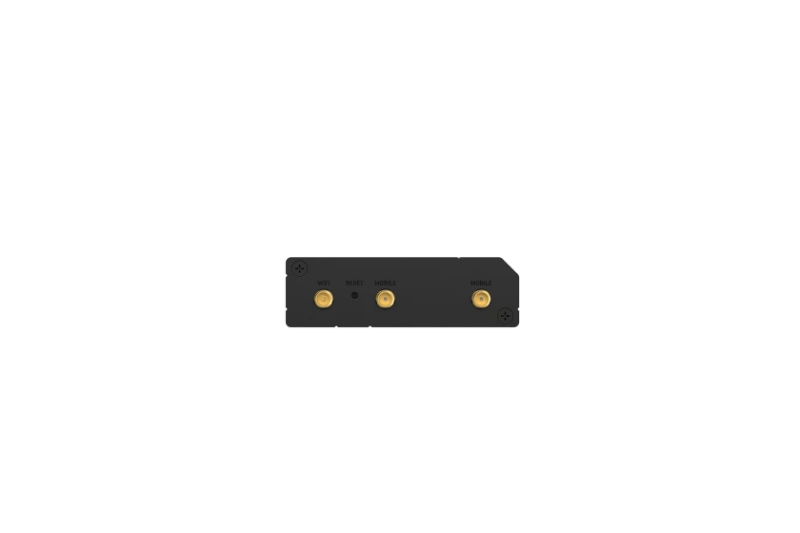

Teltonika RUT241 INDUSTRIAL CELLULAR 4G LTE Wi-Fi ROUTER

Mobile:

• 4G LTE Cat 4: Up to 150 DL/50 UL Mbps
• 3G: Up to 21 DL/5.76 UL Mbps
• 2G: Up to 236.8 DL/236.8 UL kbps
• 3GPP Release: 10/11 depending on hardware
• Status Indicators: IMSI, ICCID, operator info, signal strength (RSSI, SINR, RSRP, etc.)
• SMS/USSD: SMS via HTTP, Email to SMS, SMPP, and USSD support
• Black/White List: Operator management
• Multiple PDN & Band Management: Support for different network access services

Wireless:

• Modes: 802.11b/g/n (Wi-Fi 4), AP, STA
• Security: WPA2-Enterprise, WPA3, EAP-TLS with PKCS#12 certificates
• Connectivity: Up to 50 users, fast roaming, QR code for network access
• MAC Filter: Whitelist, blacklist

Ethernet:

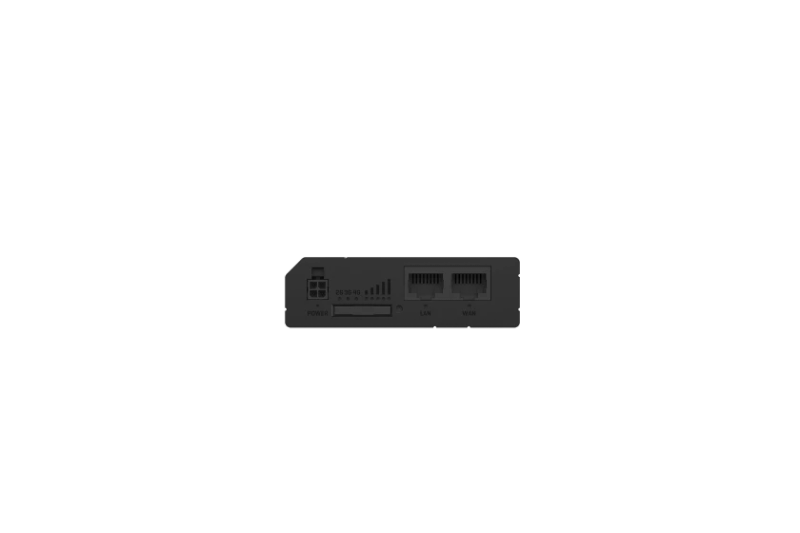

• WAN: 1x 10/100 Mbps WAN port
• LAN: 1x 10/100 Mbps LAN port

Network:

• Routing: Static/Dynamic (BGP, OSPF, RIP)
• Protocols: TCP, UDP, IPv4/6, ICMP, NTP, DNS, SSL/TLS, etc.
• Firewall: Port forwarding, traffic rules, custom rules
• Hotspot: Captive portal, RADIUS server, SMS authentication
• QoS/SQM: Traffic prioritization
• Backup & Load Balancing: Multiple WAN options, failover

Security:

• Authentication: Pre-shared keys, certificates, TACACS+, RADIUS
• Attack Prevention: DDOS protection, port scan prevention
• VLAN: Port and tag-based separation

VPN:

• Support: OpenVPN, IPsec, GRE, PPTP, L2TP, DMVPN, SSTP, ZeroTier, WireGuard
• Encryption: Various methods (AES, DES, etc.)

IoT Platforms:

• Support: Cloud of Things, ThingWorx, Cumulocity, Azure IoT Hub

System:

• CPU: Mediatek, 580 MHz, MIPS 24KEc
• RAM: 128 MB DDR2
• Flash Storage: 16 MB SPI Flash
• Firmware: RutOS (OpenWrt-based), supports SDK for customization

Power:

• Input Voltage Range: 9-30 VDC with reverse polarity and surge protection
• Power Consumption: < 6.5 W Max

Physical:

• Dimensions: 83 x 25 x 74 mm
• Weight: 125 g
• Mounting Options: DIN rail, wall mount, flat surface

Regulatory Approvals:

• Certifications: CE, FCC, ICASA, UKCA, etc.
• EMC Standards: EN 55032, EN 55035, EN 61000 series
• Safety Standards: CE, RCM, UL/CSA
