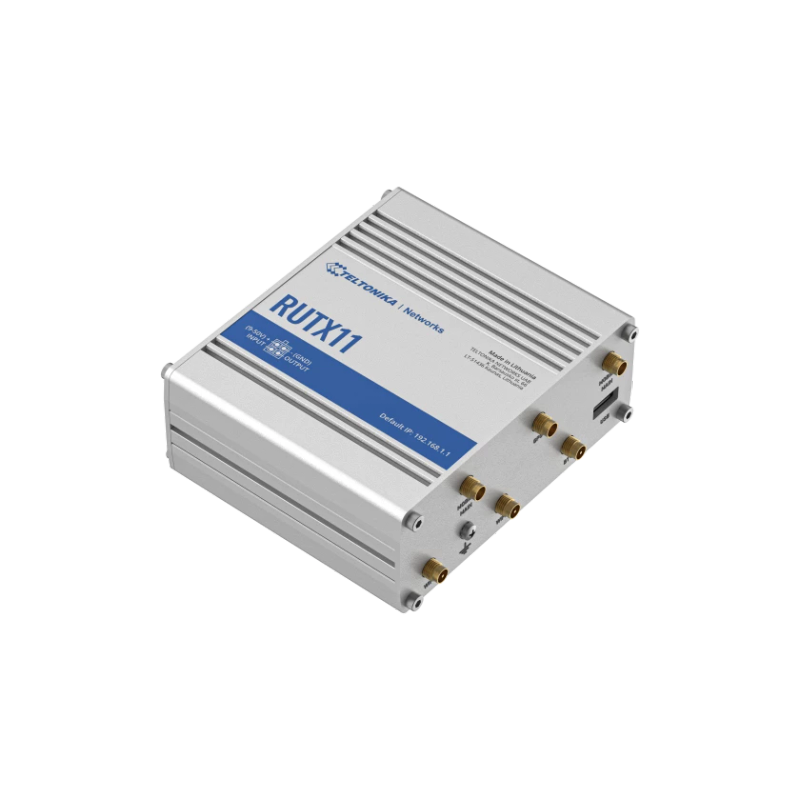

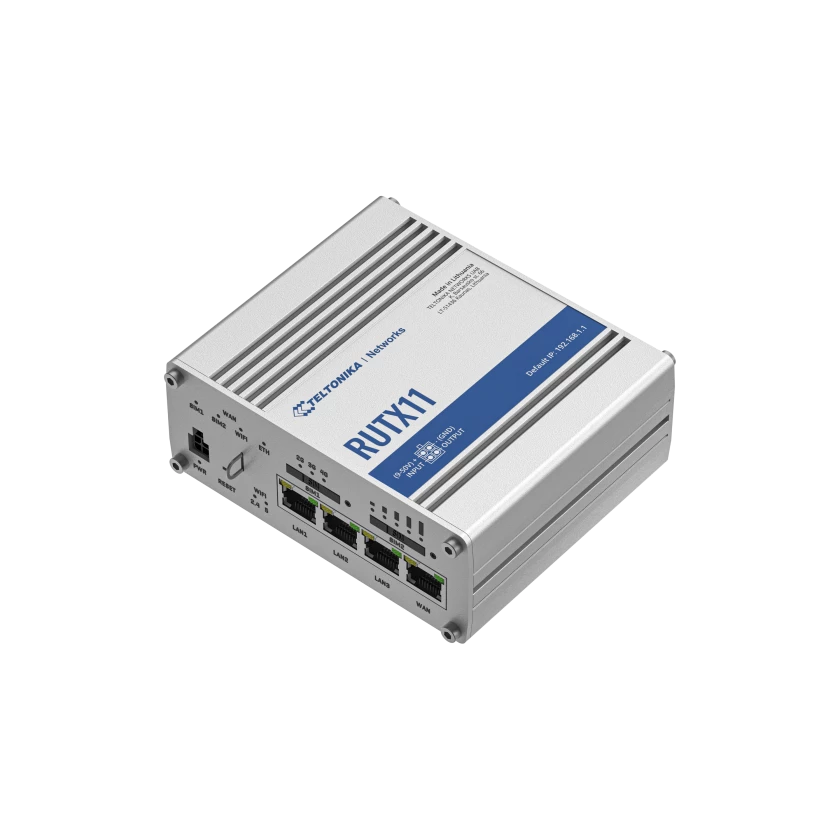

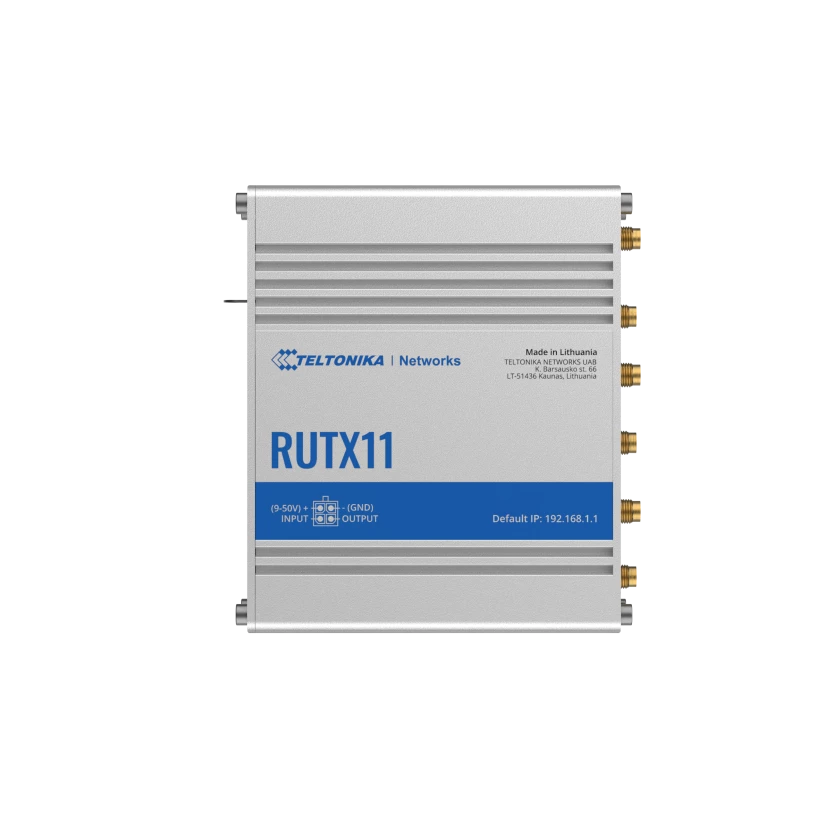

Teltonika RUTX11 Industrial Cellular Router

Mobile Module:

• 4G LTE Cat 6: Download speeds up to 300 Mbps, upload speeds up to 50 Mbps; 3G up to 42 Mbps download and 5.76 Mbps upload.
• SIM Switch: Supports dual SIM cards with automatic switching based on weak signal, data/SMS limits, roaming, network issues, and SIM idle protection.
• Status Monitoring: Tracks IMSI, ICCID, operator state, connection type, signal strength (RSSI, SINR, RSRP, RSRQ), and more.
• SMS Management: Send/receive SMS via HTTP, email integration, scheduled SMS, auto-reply, and SMPP support.
• USSD Support: Ability to send and read USSD messages.
• Operator Black/White List: Restrict or allow connections based on operator or country.
• Multiple PDN: Use different PDNs for various network services.
• Band Management: Band lock and status display.
• SIM PIN Management: Manage SIM PIN codes (set/change/disable).
• APN: Automatic APN configuration.
• Bridge Mode: Direct connection between mobile ISP and LAN device.
• Passthrough Mode: Assign mobile WAN IP to another device on LAN.

Wireless Connectivity:

• Wi-Fi Standards: 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with up to 867 Mbps transmission rates; Dual Band, MU-MIMO.
• Wi-Fi Security: WPA2-Enterprise, WPA3, AES-CCMP, TKIP, client separation, EAP-TLS, and more.
• SSID/ESSID: ESSID stealth mode, support for up to 150 simultaneous connections.
• Wireless Features: Wireless mesh, fast roaming, relayd, BSS transition management, and more.
• Wireless MAC Filter: White and blacklist filtering.
• Wireless QR Code Generator: Easy network access via QR code.

Bluetooth:

• Bluetooth 4.0: Bluetooth LE for short-range communication.

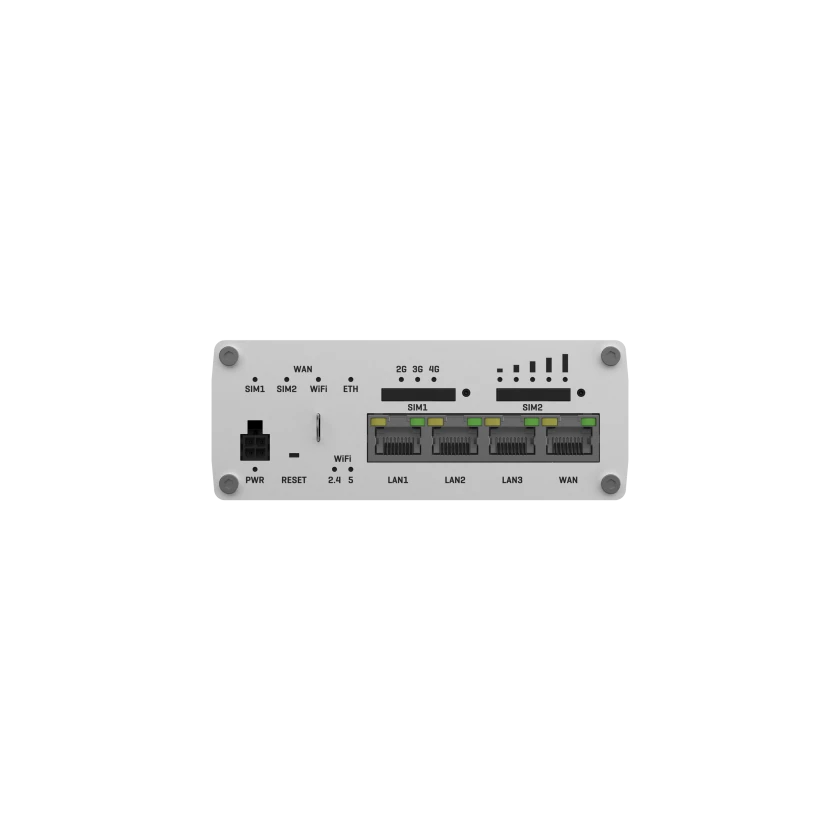

Ethernet:

• WAN: 1 x 10/100/1000 Mbps WAN port.
• LAN: 3 x 10/100/1000 Mbps LAN ports.

Network:

• Routing: Static, dynamic (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP).
• Protocols: TCP, UDP, IPv4/IPv6, ICMP, DNS, SSL/TLS, and more.
• VoIP Passthrough: H.323 and SIP-alg protocol NAT helpers.
• Network Management: 802.1x port-based access control, connection monitoring.
• Firewall: Port forwarding, traffic rules, custom rules.
• Network Backup: Failover options (Wi-Fi WAN, Mobile, VRRP, Wired).
• Load Balancing: Traffic distribution across multiple WAN connections.
• Security: Pre-shared keys, digital certificates, TACACS+, firewall rules, VLAN, DDOS protection.

VPN:

• Supported Protocols: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale.

OPC UA:

• Supported Modes: Client, Server via TCP.

MODBUS:

• Supported Modes: Server, Client via TCP, USB.
• Custom Registers: Extend MODBUS TCP Client functionality.

Monitoring & Management:

• WEB UI: Status, configuration, FW update, event logs, RMS support.
• Firmware Management: FOTA updates, configuration profiles, factory reset.
• API: Teltonika Networks Web API for extended functionalities.
