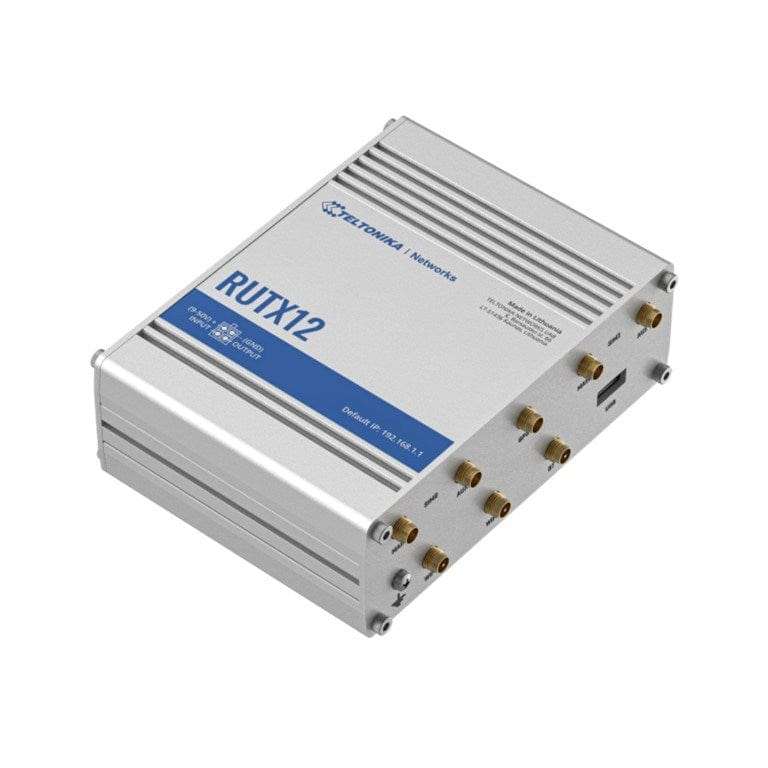

Teltonika RUTX12 Industrial Cellular LTE Cat6 Router
This powerful dual LTE Cat 6 router is a great fit for mission-critical applications. Two cellular modems for dual simultaneous connections, seamless mobile service switching and load balancing features make this device irreplaceable in applications where losing connection is not an option.
Features
- Cellular speeds up to 600 Mbps with dual simultaneous LTE CAT 6 connections
- DUAL SIM - Instant failover switching
- Wave-2 802.11ac Dual Band WI-FI and Bluetooth LE
- Allows to use multiple WAN sources to increase throughput
Technical Specification
Mobile module: 2 x 4G (LTE) — Cat 6 up to 300 Mbps, 3G — up to 42 Mbps
Status: Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID, Carrier aggregation
SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD: Supports sending and reading Unstructured Supplementary Service Data messages
Black/White list: Operator black/white list
Multiple PDN: Possibility to use different PDNs for multiple network access and services
Band management: Band lock, Used band status display
APN: Auto APN
Bridge: Direct connection (bridge) between mobile ISP and device on LAN
Passthrough: Router assigns its mobile WAN IP address to another device on LAN
Wireless mode: 802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
WiFi security: WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
SSID/ESSID: ESSID stealth mode
WiFi users: up to 150 simultaneous connections
Wireless Hotspot: Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes
Wireless Connectivity Features: Wireless mesh (802.11s), fast roaming (802.11r), Relayd
Bluetooth 4.0: Bluetooth low energy (LE) for short range communication
WAN: 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN: 4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Ethernet ports: 5 x RJ45 ports, 10/100/1000 Mbps
I/O's: 1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs: 4 x connection status LEDs, 6 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1x Power LED, 2 x 2.4G and 5G WiFi LEDs
SIM: 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
Power: 1 x 4-pin power connector

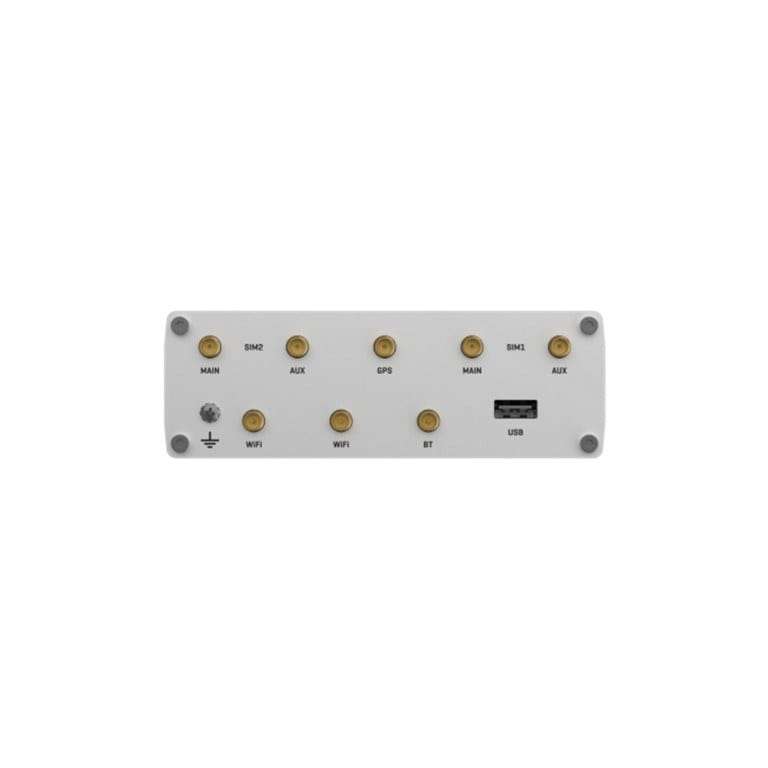

Antennas: 4 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNNS
USB: 1 x USB A port for external devices
