Overview:
The Teltonika RUTX12 is a powerful and versatile dual LTE router designed for seamless connectivity and advanced networking features. Equipped with dual LTE Cat 6 modems, this router ensures uninterrupted and reliable internet access, making it ideal for mission-critical applications.
Key Features:
Dual LTE Cat 6 Modems:
- Up to 300 Mbps download and 50 Mbps upload speeds.
- Supports simultaneous dual LTE connections for enhanced redundancy and load balancing.
Wireless Connectivity:
- WiFi 5 (802.11ac) Dual Band (2.4 GHz & 5 GHz) with data rates up to 867 Mbps.
- Bluetooth 4.0 for short-range communication.

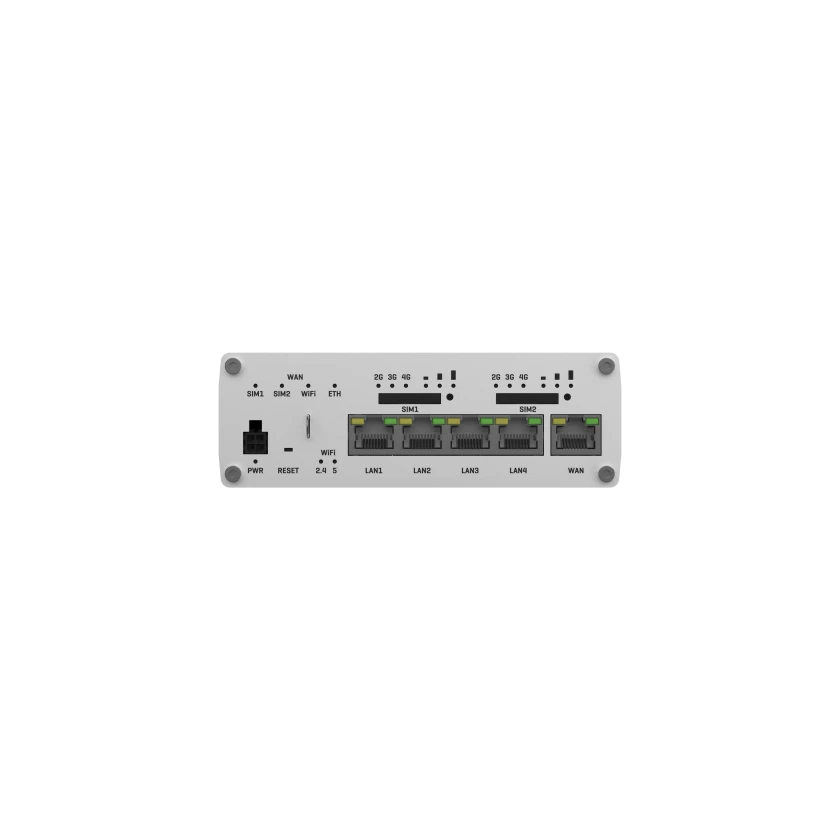

Ethernet Ports:
- 1 x WAN port (10/100/1000 Mbps).
- 4 x LAN ports (10/100/1000 Mbps).
Advanced Networking:
- Supports static and dynamic routing protocols (BGP, OSPF v2, RIP v1/v2).
- Multiple VPN options including OpenVPN, IPsec, PPTP, L2TP, and more.
- Load balancing and automatic failover for network redundancy.
I/O and Expansion:
- 1 x USB 2.0 port for external devices.
- 1 x Digital Input and 1 x Digital Output.
- Dual SIM slots for network flexibility and backup.
Security:
- Advanced firewall features, DDOS prevention, and port scan prevention.
- Support for multiple authentication methods including pre-shared keys and digital certificates.
Industrial-Grade Design:
- Robust aluminium housing.
- Operating temperature range: -40 °C to 75 °C.
- DIN rail and surface mounting options available.
What's in the Box:
- Teltonika RUTX12 Router
- 24 W Power Supply Unit (PSU)
- 4 x LTE Antennas (SMA male, swivel)
- 2 x WiFi Antennas (RP-SMA male, magnetic mount, 1.5 m cable)
- 1 x GNSS Antenna (SMA male, adhesive, 3 m cable)
- 1 x Bluetooth Antenna (RP-SMA male, magnetic mount, 1.5 m cable)
- Ethernet Cable (1.5 m)
- SIM Adapter Kit
- Quick Start Guide (QSG)
- Packaging Box
Technical Specifications:
- CPU: Quad-core ARM Cortex A7, 717 MHz
- RAM: 256 MB DDR3
- Storage: 256 MB SPI Flash
- Power Input: 9 - 50 VDC with reverse polarity and surge protection
- Power Consumption: Idle: < 4 W, Max: < 22 W
- Dimensions: 132 x 44.2 x 95.1 mm
- Weight: 540 g
- Certification: RoHS Compliant
Applications:
- Primary or backup internet for business-critical systems
- Remote office connectivity
- Retail point of sale (POS) systems
- Industrial automation and monitoring
- Public safety and emergency response networks
