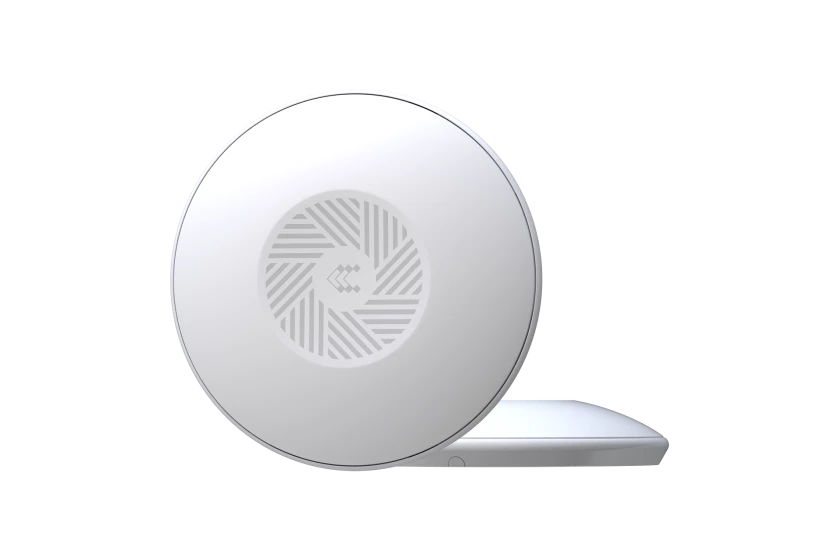

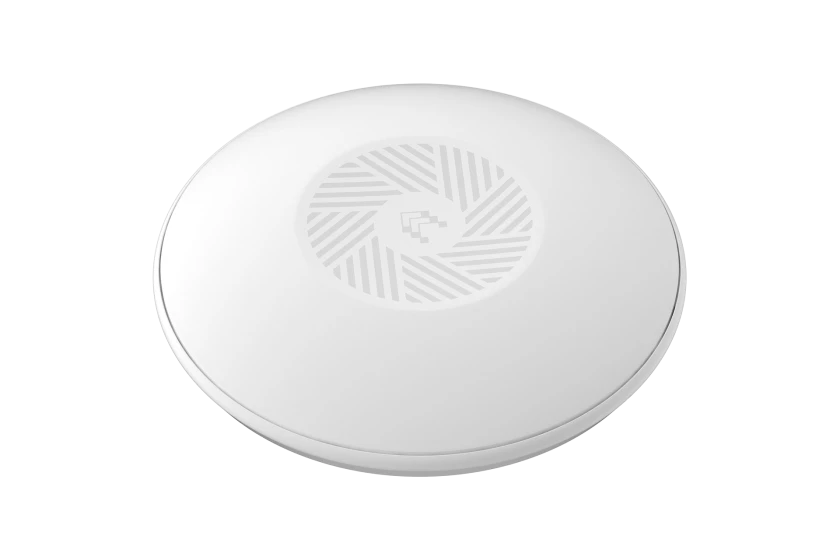

Teltonika TAP100 Wi-Fi Access Point

Wireless Specifications

• Wi-Fi Standards: 802.11b/g/n (Wi-Fi 4)
• Security Protocols: WPA2-Enterprise, WPA3-SAE, OWE, AES-CCMP, and others
• SSID Features: Stealth mode and MAC-based access control
• Maximum Connections: Supports up to 100 simultaneous users
• Connectivity Enhancements: Wireless mesh (802.11s), fast roaming (802.11r), and more
• MAC Filtering: Whitelist and blacklist options
• QR Code Access: Simplified network access via QR code

Ethernet

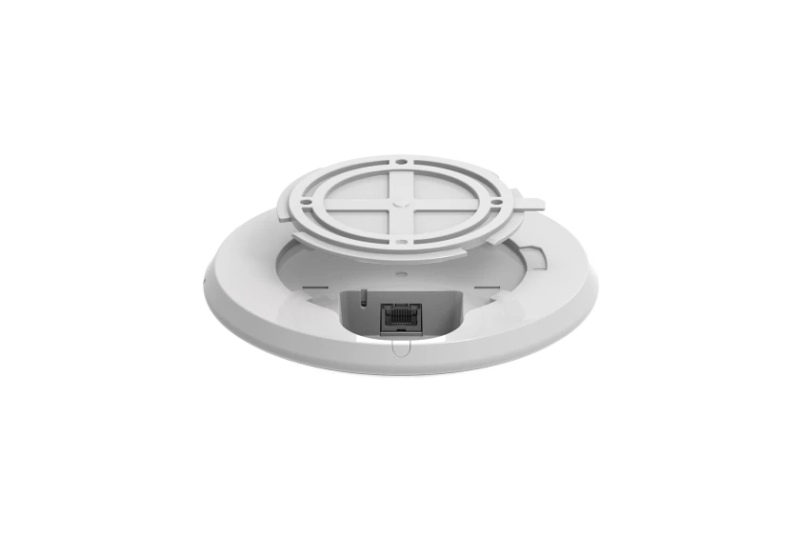

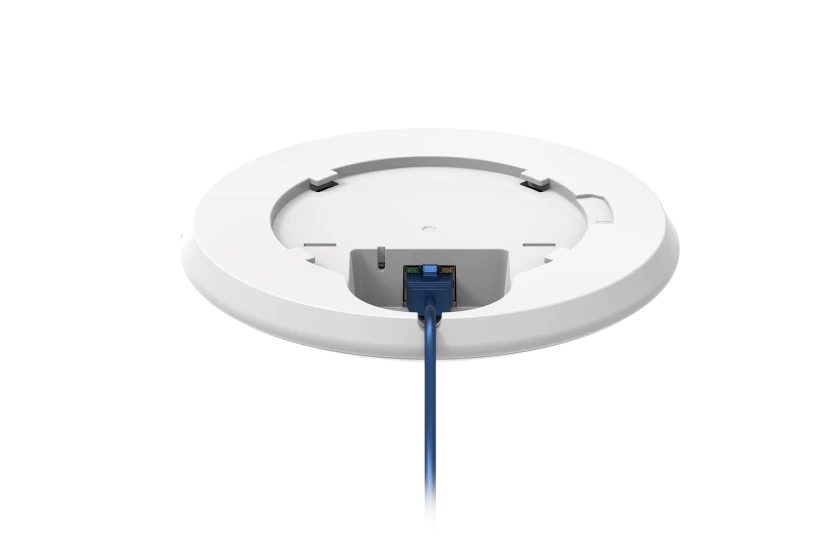

• Port: 1 x RJ45, 10/100 Mbps
• Standards: IEEE 802.3, IEEE 802.3u, 802.3az
• Features: Supports auto MDI/MDIX crossover

Network & Security

• Protocols Supported: TCP, UDP, IPv4/6, ICMP, HTTP/HTTPS, and others
• Network Management: 802.1x port-based access control, DNS over HTTPS
• Hotspot Capabilities: Captive portal, Radius server, and SMS authorization
• Authentication & Security: SSH key-based, VLAN tagging, IP blocking

API & Management

• Web API: Beta support for Teltonika Networks API
• Management Interface: HTTP/HTTPS, SSH, JSON-RPC, RMS support
• Firmware Management: FOTA, configuration backups, factory reset options

System Characteristics

• Processor: Mediatek, 580 MHz
• Memory: 64 MB DDR2 RAM, 16 MB Flash
• Operating System: RutOS (OpenWrt-based)
• Customization: GPL firmware customization, Package Manager

Power Specifications

• Connector: RJ45 socket
• Voltage Range: 44.0 57.0 V
• PoE Standards: 802.3af PoE Class 1
• Power Consumption: < 2 W Max

Physical Specifications

• Material: UV-stabilized plastic
• Dimensions: Ø 158 mm x 30 mm
• Weight: 190 g

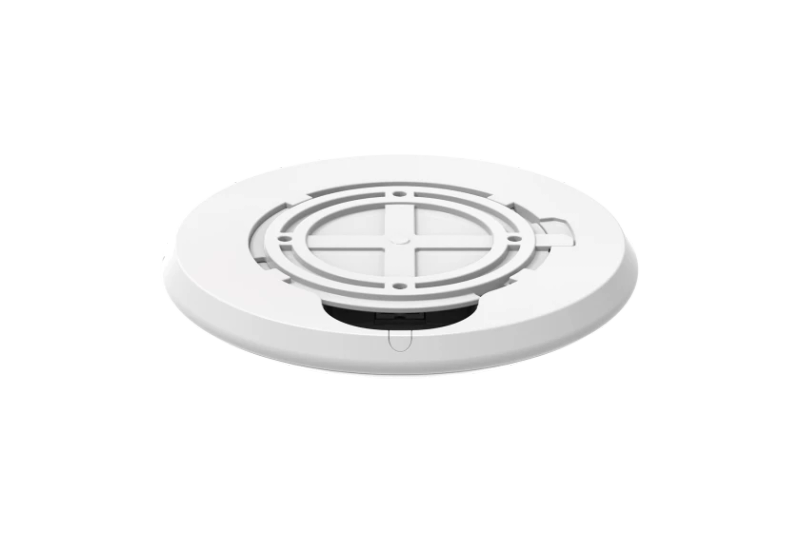

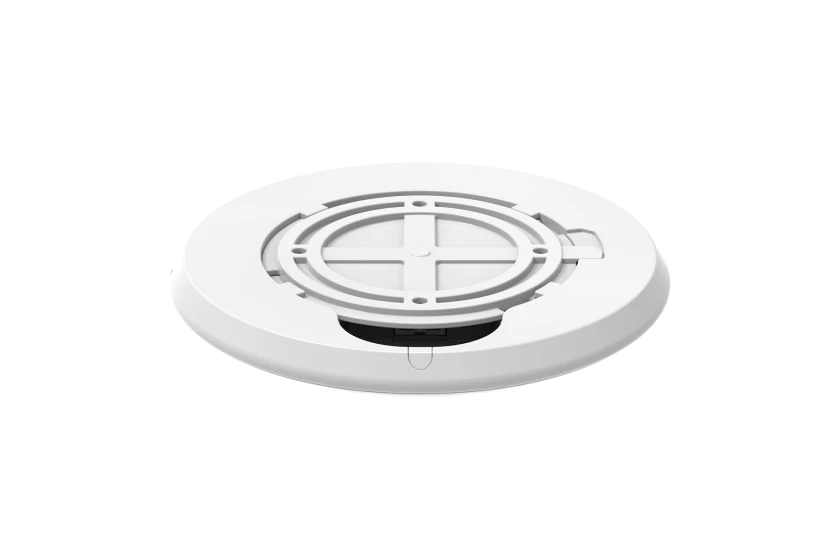

• Mounting: Ceiling mounting bracket included
• Temperature Range: -40 °C to 75 °C
• Humidity: 10% to 90% non-condensing
• Ingress Protection: IP30

Regulatory & Compliance

• Certifications: CE, UKCA, EAC, FCC, RoHS, REACH, WEEE
• EMC Standards: EN 55032, EN 55035, and others
• Safety Standards: CE: EN IEC 62368-1:2020, RCM: AS/NZS 62368.1:2022
