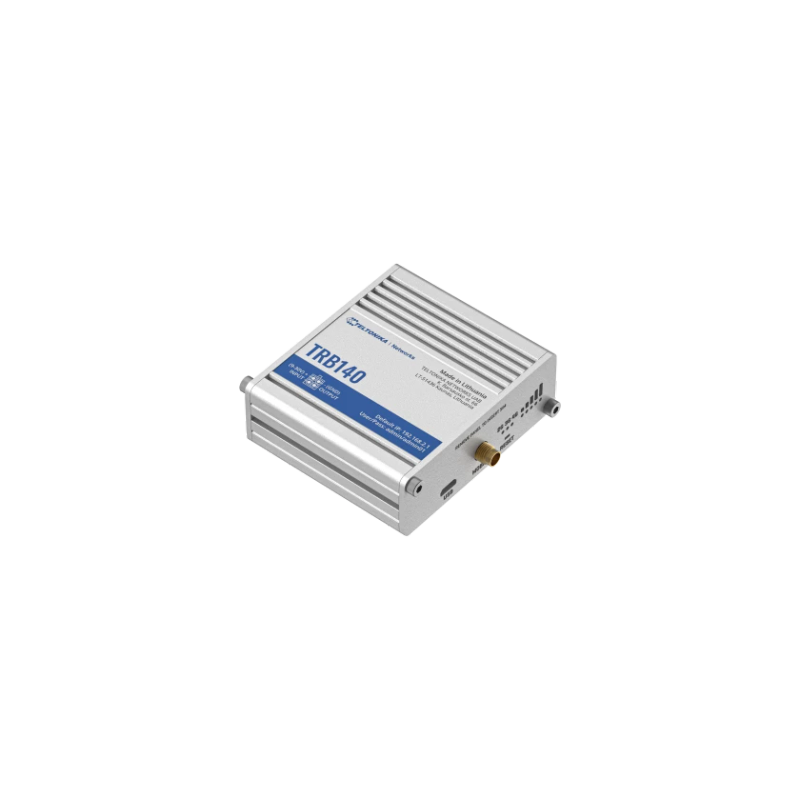

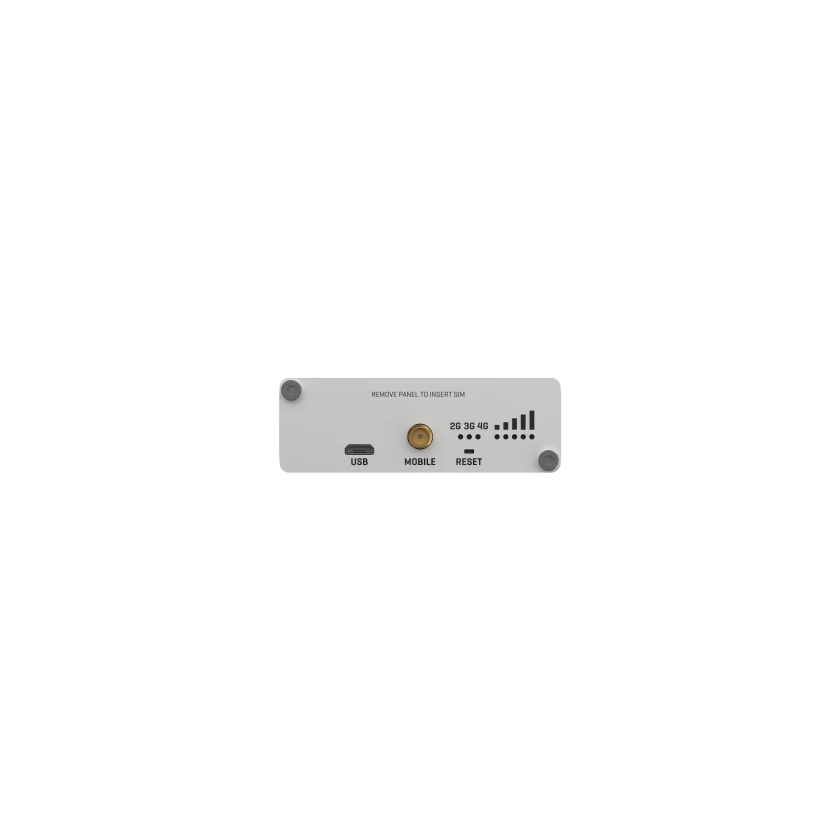

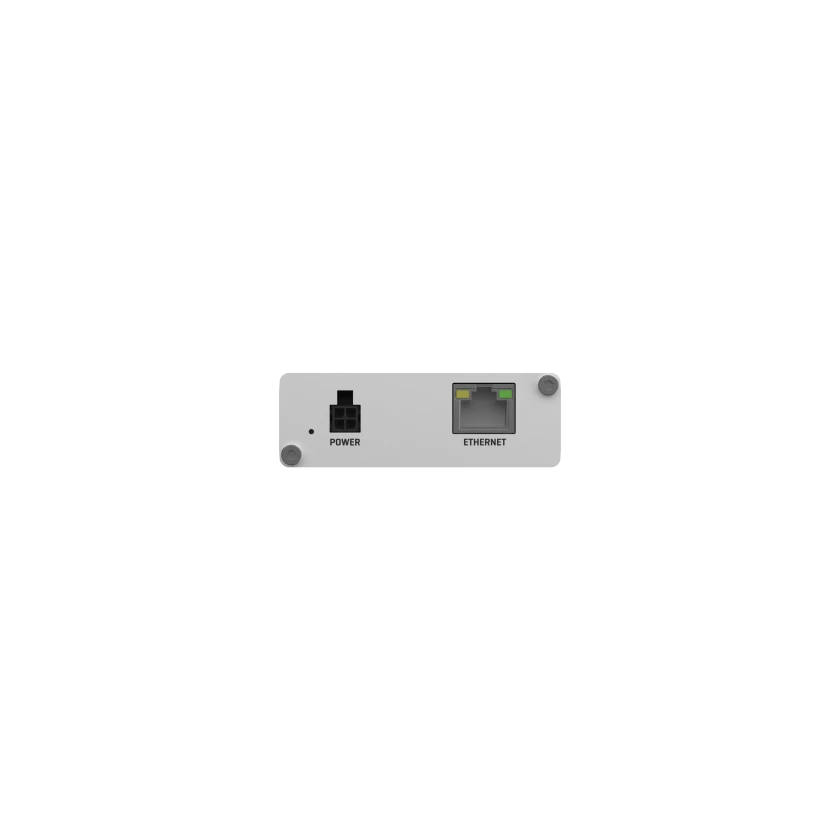

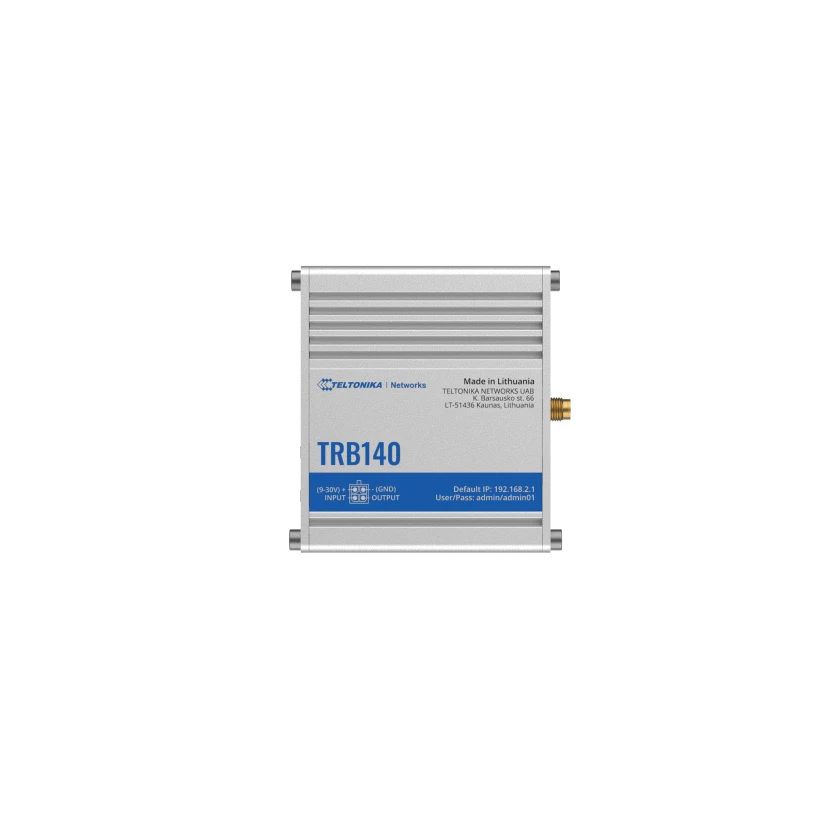

Teltonika TRB140 Industrial Rugged LTE Gateway

Mobile Module:

• 4G LTE Cat 4: DL up to 150 Mbps, UL up to 50 Mbps
• 3G: DL up to 21 Mbps, UL up to 5.76 Mbps
• 2G: DL/UL up to 236.8 kbps

Network & Ethernet:

• ETH: 1 x 10/100/1000 Mbps Ethernet port
• Protocols: TCP, UDP, IPv4/IPv6, ICMP, NTP, DNS, HTTP/HTTPS, SSL/TLS, and more
• Routing & Firewall: Static routing, port forwarding, traffic rules, and custom firewall rules
• VoIP Support: H.323 and SIP-alg NAT helpers for VoIP packet routing

Security:

• Authentication: Pre-shared keys, X.509 certificates, RADIUS authentication, and more
• Firewall: Customizable rules via CLI and WebUI, DMZ, NAT
• Attack Prevention: DDOS protection, port scan prevention

VPN Support:

• Protocols: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, SSTP, WireGuard, and more
• Encryption: Multiple encryption methods for enhanced security

IoT & Management:

• APIs: Teltonika Networks Web API for enhanced device control
• Cloud Platforms: Azure IoT Hub, Cumulocity, ThingWorx, Cloud of Things integration
• Monitoring & Management: HTTP/HTTPS WebUI, FOTA, SSH, TR-069, MQTT Broker

Physical Specifications:

• Casing: Aluminium housing
• Dimensions: 74.5 x 25 x 64.4 mm
• Weight: 134 g
• Mounting Options: DIN rail, wall mount, flat surface
• Operating Temperature: -40 °C to 75 °C
• Ingress Protection: IP30

Certifications & Approvals:

• Regulatory Approvals: CE, UKCA, EAC, ICASA, and more
• EMC Standards: EN 55032, EN 55035, EN 301 489-1/52
• Safety Standards: CE, RCM, CB
