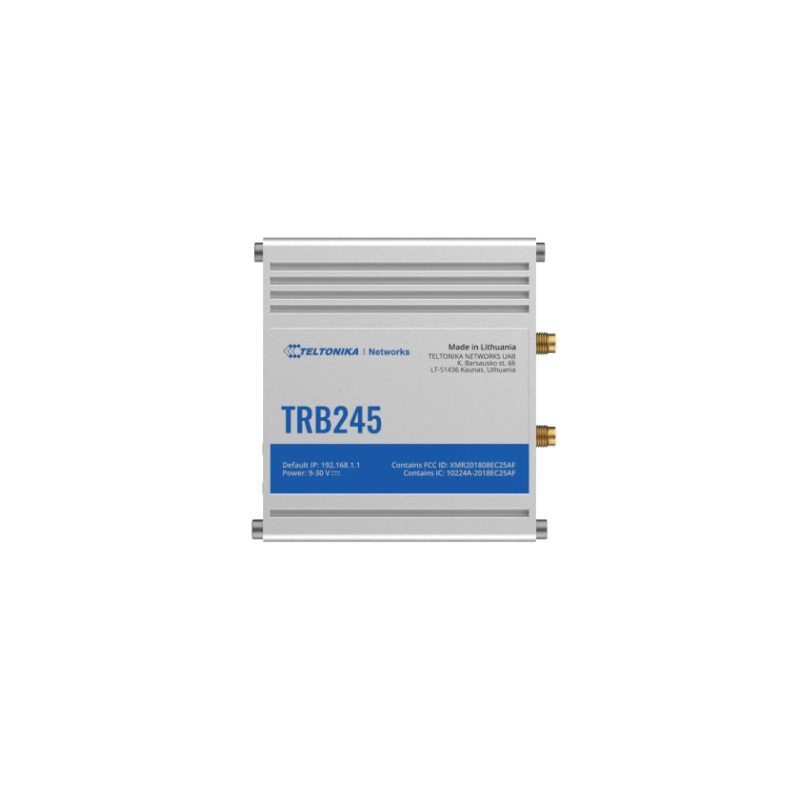

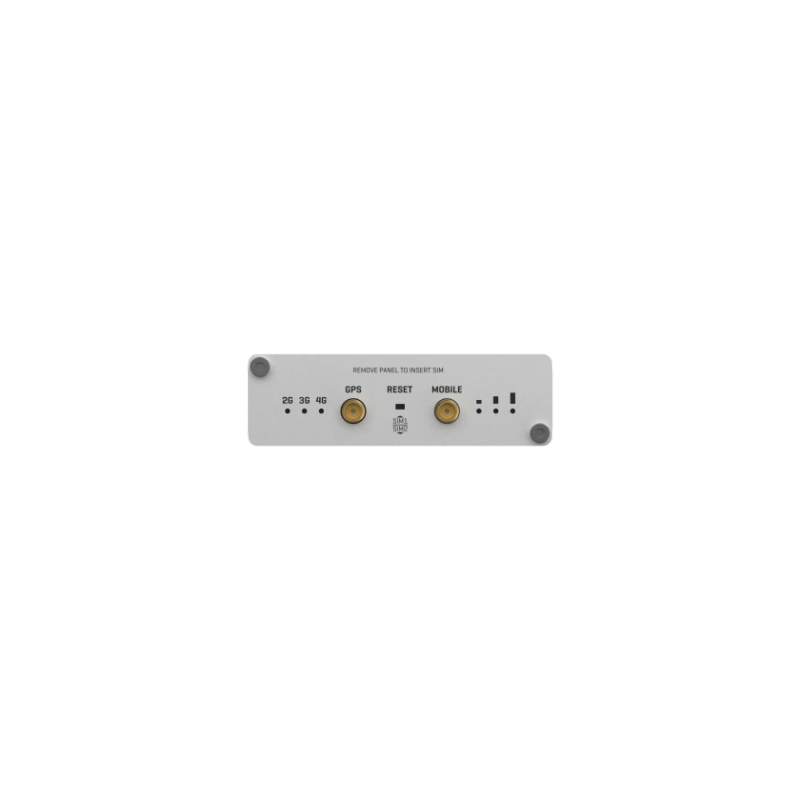

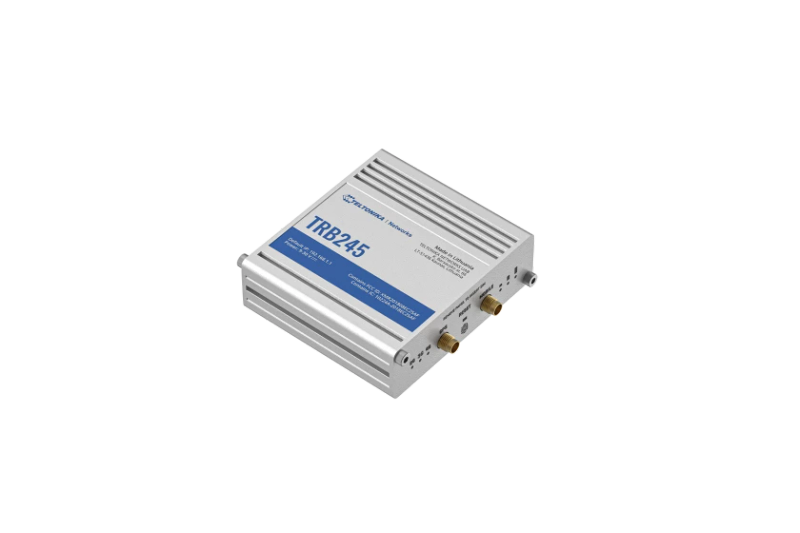

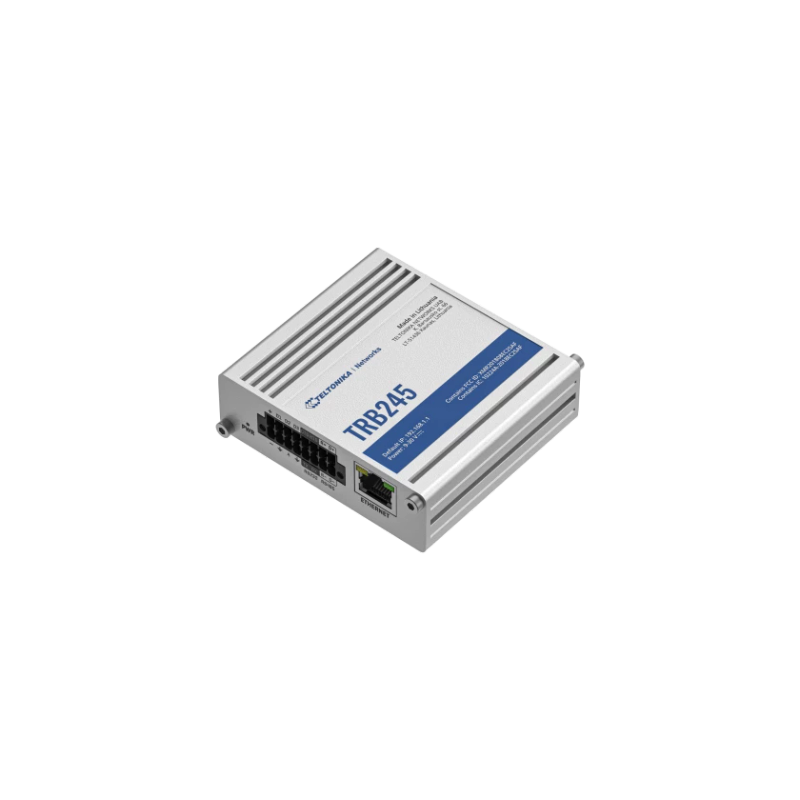

Teltonika TRB245 Industrial M2M LTE Gateway

The Teltonika TRB245 is a robust and versatile LTE Cat 4 gateway designed for industrial M2M (Machine-to-Machine) applications. It is engineered to provide seamless and secure communication across 4G, 3G, and 2G networks, making it ideal for environments requiring reliable data transmission and remote management capabilities.

Key Features

Mobile Connectivity

• 4G LTE Cat 4: Delivers download speeds up to 150 Mbps and upload speeds up to 50 Mbps.
• 3G Support: Capable of up to 21 Mbps download and 5.76 Mbps upload.
• 2G Support: Provides up to 236.8 kbps download/upload speeds.
• Dual SIM: Offers auto-switch capabilities between SIM cards based on predefined criteria such as signal strength or data limits, enhancing connectivity reliability.

Ethernet and Networking

• Ethernet Port: Equipped with a 10/100 Mbps Ethernet port for wired connectivity.
• Routing Capabilities: Supports static and dynamic routing protocols including BGP, OSPF, RIP, and more, ensuring flexible network configurations.
• Network Protocols: Wide range of supported protocols including TCP, UDP, IPv4/6, ICMP, HTTP(S), and more, ensuring comprehensive network functionality.
• Firewall and Security: Pre-configured firewall rules, DDOS prevention, VLAN support, and multiple authentication methods to safeguard your network.

VPN Support

• OpenVPN and IPsec: Supports multiple VPN instances for secure remote access, with extensive encryption options.
• Additional VPNs: Includes support for GRE, PPTP, L2TP, WireGuard, and more, offering flexibility in secure connections.

Industrial Protocols

• MODBUS: Full support for MODBUS RTU/TCP with custom register block requests.
• DNP3: Supports both TCP Master and RTU Master modes, enabling integration with utility meters.
• OPC UA: Operates as both a client and server, supporting industrial automation and SCADA systems.

I/O and Serial Communication

• RS232/RS485: Multiple serial interfaces for integrating legacy industrial equipment.
• Digital and Analog Inputs/Outputs: Configurable I/O ports for monitoring and controlling external devices.

Power and Environment

• Wide Power Input Range: Operates on 9 30 VDC with reverse polarity and surge protection.
• Rugged Design: Aluminium housing with IP30 rating, designed to withstand harsh industrial environments.
• Operating Temperature: Suitable for extreme temperatures ranging from -40 °C to 75 °C.

Management and Monitoring

• Remote Management: Compatible with Teltonika's Remote Management System (RMS) for centralized device monitoring and firmware updates.
• Web UI and API: Provides a user-friendly web interface and API support for configuration and management.
• FOTA: Supports firmware-over-the-air updates, ensuring devices are always running the latest software.

IoT Integration

• Cloud Platforms: Compatible with major IoT platforms including Azure IoT Hub, ThingWorx, and Cumulocity, enabling seamless integration into existing IoT ecosystems.
• MQTT Gateway
