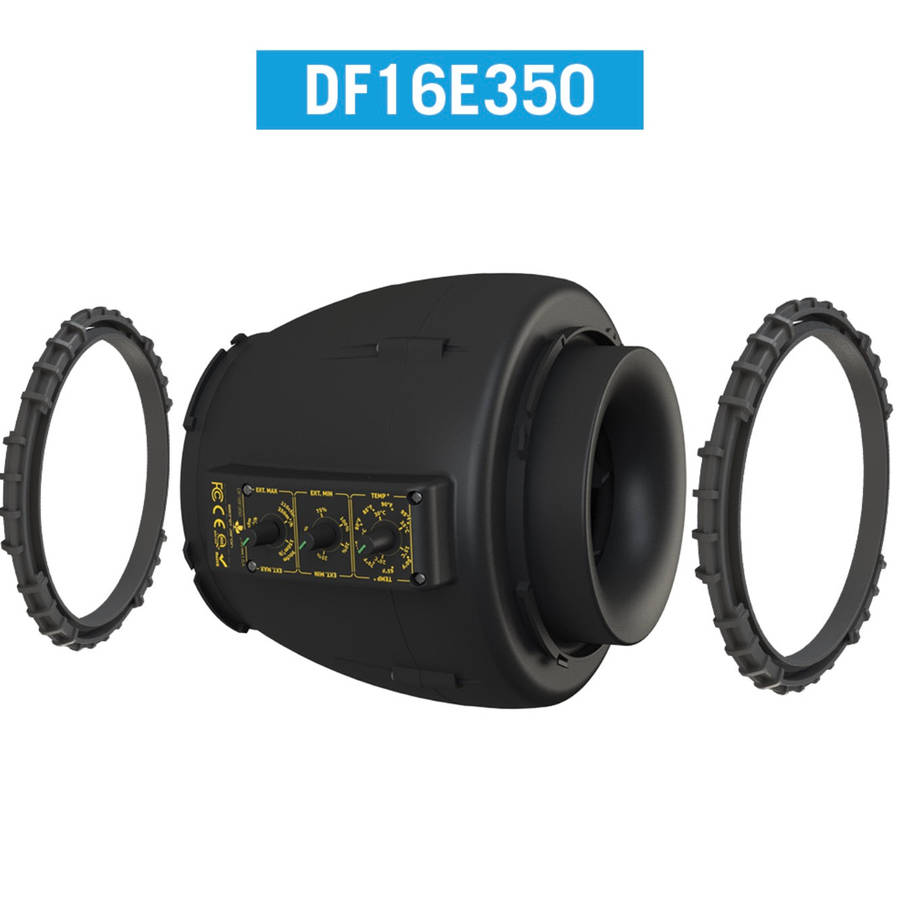

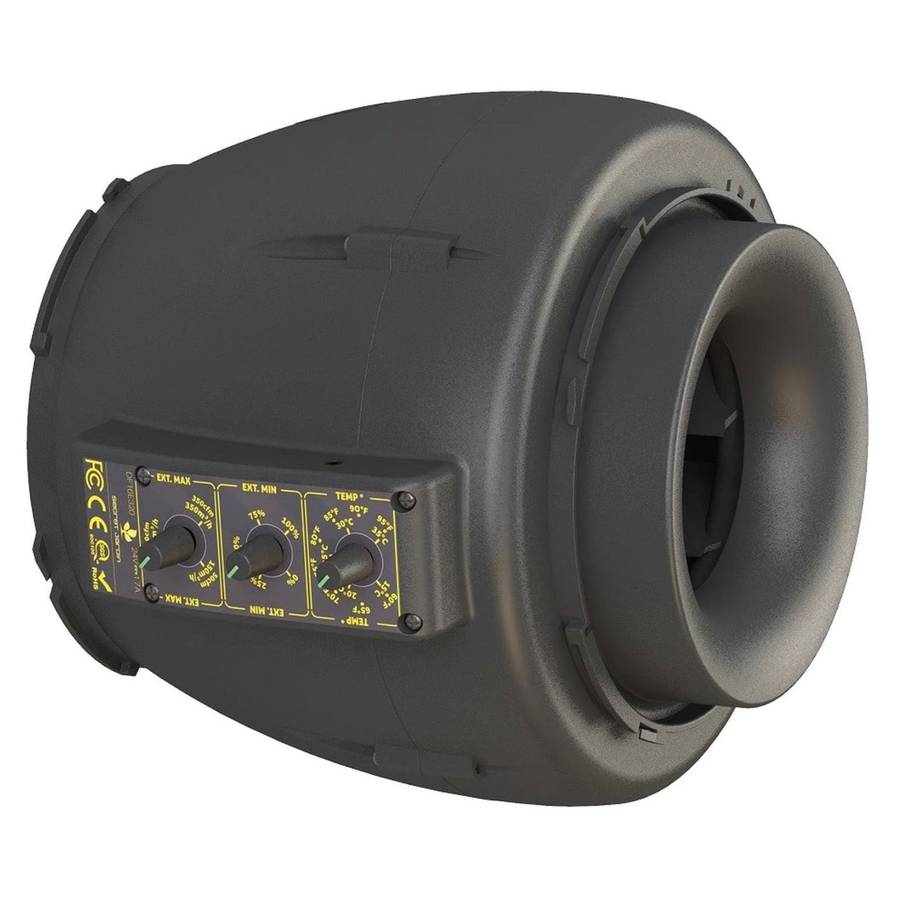

Temp & Speed Controlled Inline Fan - Secret Jardin (DF16 E 350)

Temp & Speed Controlled Inline Fan - Secret Jardin (DF16 E 350)

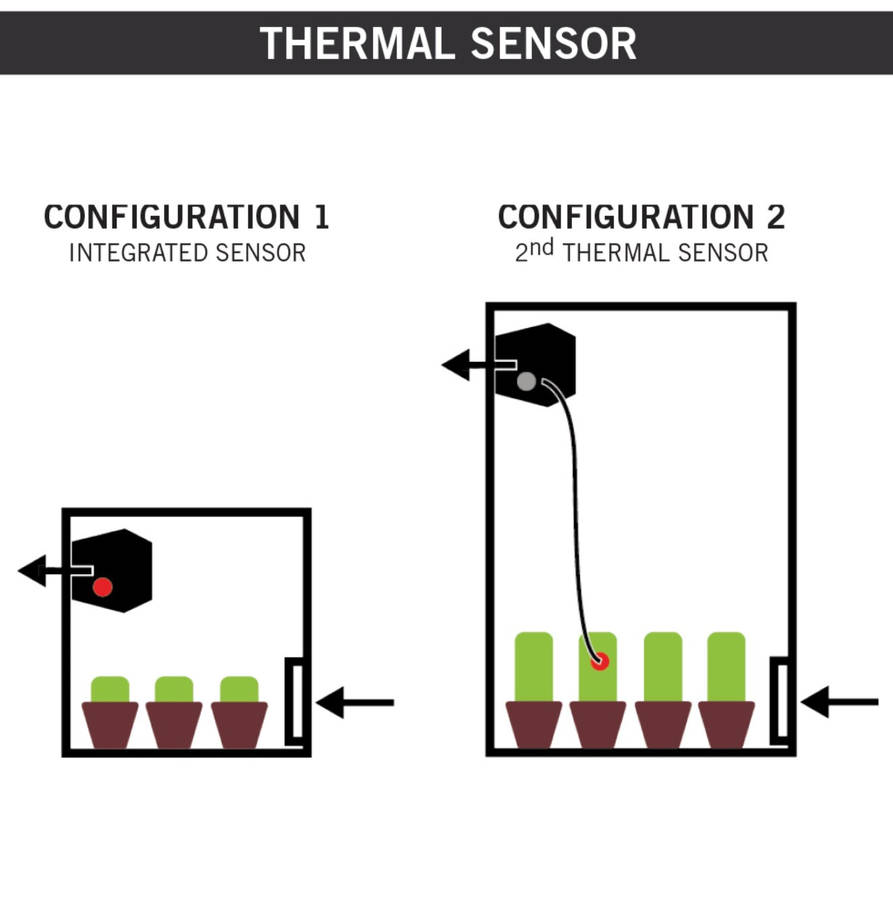

Integrated and external temperature sensor

If the 2nd thermal sensor (external) is connected, the integrated sensor is switched off. So if you use the integrated temperature sensor, the EC fan runs at a minimum speed of 5%.

Volume test:
The measurement was taken 70cm in front of the tent without silencer.

• max. stage 150m3/h: 36 dB
• max. stage 250m3/h: 54 dB
• max. stage 350m3/h: 61 dB

Recommendation:

• level 150m3/h for a grow tent up to 60x60x160cm, recommended Carbon Filter DF16150.
• level 250m3/h for a grow tent up to 100x100x200cm, recommended Carbon Filter DF16250.
• level 350m3/h for a grow tent up to 120x120x200cm, recommended Carbon Filter DF16350.

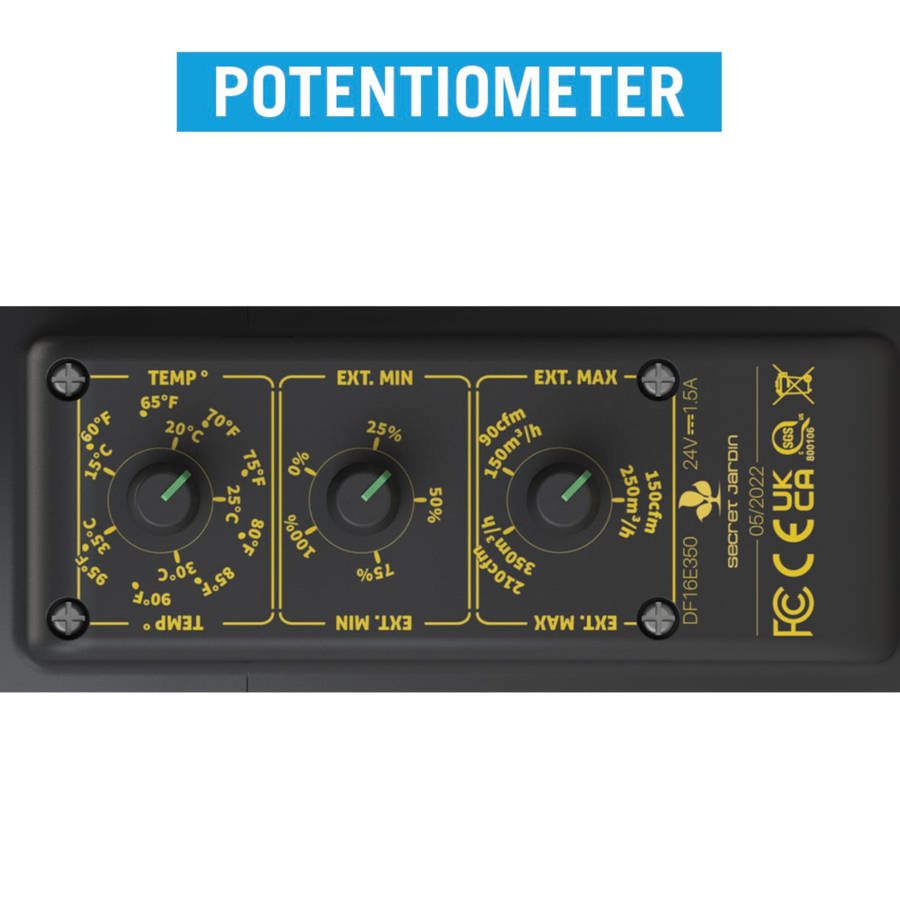

The interface allows you to select temperature, minimum extraction and maximum extraction to optimally regulate your environment.
The 24 volt EC motor allows you to adjust the extraction speed and therefore save 30-40% energy compared to AC extractors.

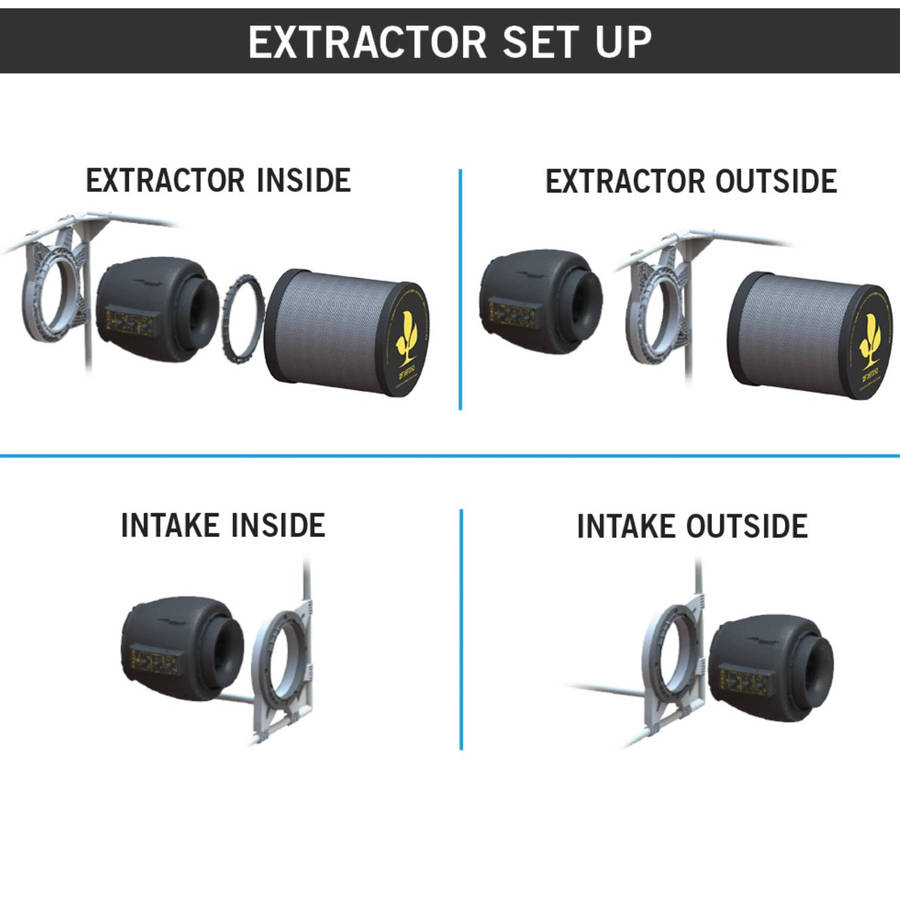

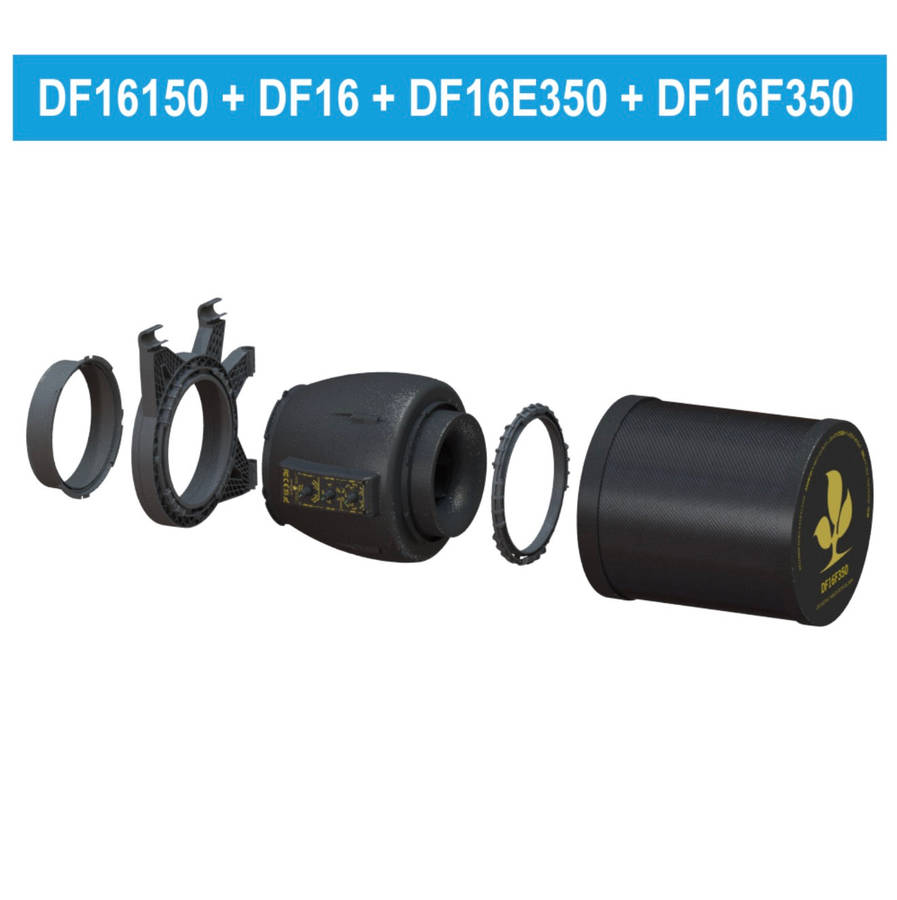

Once the extractor is installed, you simply connect the corresponding filter to your growing area. Its high capacity activated carbon CTC80 ensures optimal protection for a long time.

Details:

• Compatible with all grow tents
• 3-stage EC fan with 150/250/350 m3/h capacity
• Temperature control function and 2 heat sensors (integrated and external)
• Assembly without tools within seconds

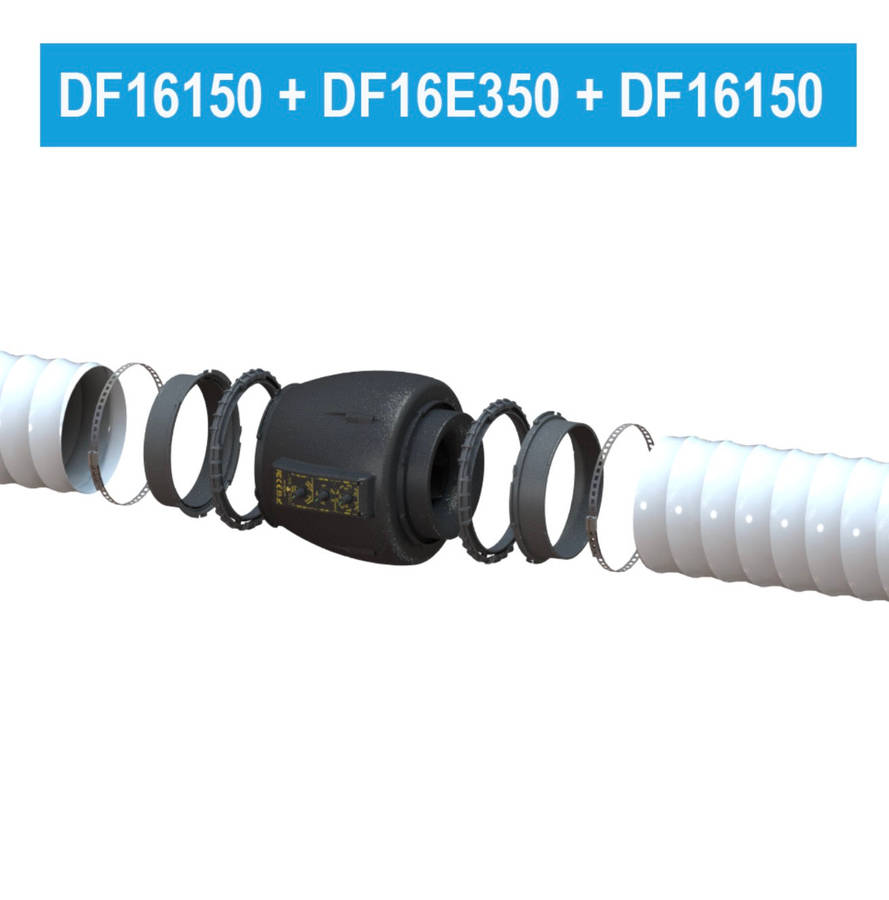

• Connection to different flange sizes possible

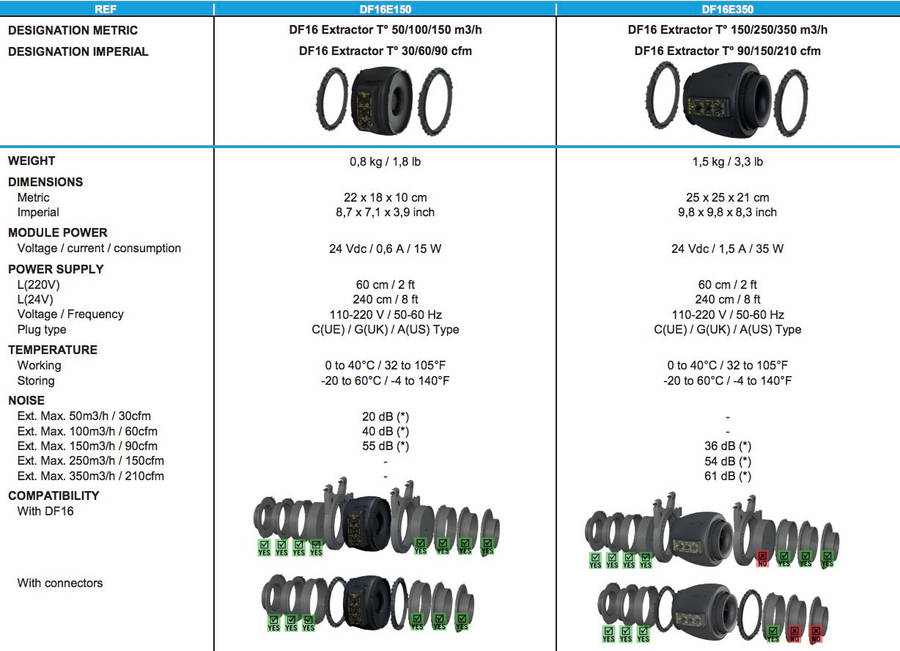

Technical data:

• 3 speed: 150/250/350 m3/h
• Consumption: 35W
• Current: 1.5A
• Voltage: 110-220 V
• Frequency: 50/60 Hz
• Ambient temp.: min. 0°C/max. 40°C
• Dimensions (LxWxH): 25x25x21cm
• Protection class: IP54
• Length of power cable: 60cm
• Length of 2nd sensor cable: 240cm
• Weight: 1,5kg

Included:

• Adapator DF16 Ring
• 2nd Thermal Sensor (external)
• 24V Deported Power Supply, EU, UK, US Adaptor
