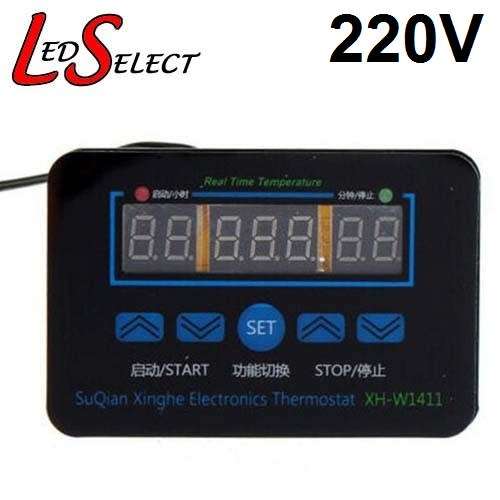

Temperature Controller AC 220V:
Category: 1500312645 / 1510312645 - Controller Humidity / Temperature
Specifications:
Temperature Measurement Range: -55 to + 120 Celsius degrees
Temperature Measuring Accuracy: 0.3 degrees
Resolution: 0.1 degrees
Temperature Control Range: - 19 to 99 degrees
Accuracy: 1 degrees
Temperature Measuring Probe: NTC10K/B3950 standard 1 meter waterproof probe
Power Supply Voltage: AC 220V
Display Colors: Red, green, blue and yellow (optional)
Applicable Environment: - 25 to 55 degrees moisture 20% - 20% (gel)
Dimensions: 90 x 60 mm
Hole Size: 70 x 50 mm
How to Use:
1. authors product plug screen display temperature on household socket, illustrate the power supply is connected correctly
2. put the temperature probe need to temperature control, according to the need to set the start and stop the temperature
3. the heating or cooling equipment power supply plug on the thermostat outlet temperature control can be realized
Instructions:
After power-on, if the temperature is within the range, you should immediately start the output and make it stop when it reaches the set value.
Start temperature For example, if you want to control water boiling to stop at 60 Celsius degrees and start over at 45 Celsius degrees, then you should set the start value as 45 and stop value as 60.
Start temperature >stop temperature: refrigeration mode
For example, in summer, you want to control the greenhouse to start the scavenger fan when the temperature is higher than 35 Celsius degrees and stop at 32 Celsius degrees, then you should set the start value as 35 and stop value as 32.
SET: function button/power-on & power-off button
In the state of power-on, you can switch off by a long press for 3 seconds. After switched off, it will still remain power-off if there is no power supply.
In the state of power-off, you can switch on by pressing SET once. After switched on, it will still remain power-on if there is no power supply.
In the state of normal temperature control, you can switch between F-1 to F-3 by pressing SET once.
F-1 intermittent work mode unit: minute left: start minute right: stop minute
F-2 time switch left: hour right: minute 99h59mins max
F-3 time switch left: hour right: minute 99h59mins max
Temperature correction: Enter the temperature correction function by removing the controller plug and pressing SET to supply power. The screen displays –00--. You can increase or decrease temperature on the basis of the original temperature, maximum range -9.9~+99. After correction:
Real-time temperature = the temperature before correction + the corrected value
Press (start+-) power-on to enter self-check function; Press (stop+-) power-on to restore factory settings.
Restore the factory:
If there is some setting mistake or setting disorder, you can press the two stop buttons to restore factory settings.
When the screen displays 88-888-88, and the buzz gives out a long sound, it means the restoration has finished.
Default start value is 25, stop 40, F-1 01-10, F2 00-30, F-3 00-30, correction=000
